Initial value:
Contact output: 30 seconds
SSR drive voltage output: 3 seconds
Initial value: 3.0%
Setting range: OFF, 0.1 – 999.9%
Basically setting of this item is not necessary for the execution of
auto tuning. For proportional band, refer to Section 8-4 (1).
To change to ON-OFF (two-position) action, select OFF.
Initial value: 20 digit
Setting range: 1 – 999 digit
Set the "Hysteresis" of ON-OFF action. This screen is displayed
only when OFF is selected for "P=OFF" on the preceding 1-2
screen.
Initial value: 120 seconds
Setting range: OFF, 1 – 6000 seconds
Basically, setting of this item is not necessary when auto tuning is
executed.
For integral time, refer to Section 8-4 (2).
This screen is not displayed when P=OFF is selected.
Initial value: 30 seconds
Setting range: OFF, 1 – 3600 seconds
Basically, setting of this item is not necessary when auto tuning is
executed.
For integral time, refer to Section 8-4 (3).
This screen is not displayed when P=OFF is selected.
Initial value: 0.0%
50.0% (in 2-output specification)
Setting range:
50.0% – 50.0%
A value for offset correction is set when OFF is selected for I
(P action or PD action).
This screen is not displayed when P=OFF is selected.
Refer to Section 8-4 (4).
Initial value: 0.40
Setting range: OFF, 0.01 – 1.00
A value to be used to suppress overshooting or undershooting in
expert PID is set.
Setting 1.00 for SF makes overshoot minimum.
When SF=OFF is selected, expert PID does not function and
ordinary PID action is carried out.
This screen is not displayed when P=OFF is selected.
Initial value: 0.0
Setting range: 0.0 – 99.9%
A lower limit value of control output 1 is set.
For output limiter, refer to Section 8-5.
Initial value: 100.0
Setting range: + 0.1 – 100.0%
A higher limit value of control output 1 is set.
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-9
Output 1 propotional band (P) setting screen
To the 1-10 screen
Initial value:
Contact output: 30 seconds
SSR drive voltage output: 3 seconds
Setting range: 1 – 120 seconds.
Proportional cycle time of control output 1 is set.
The screen is not displayed for voltage or current output.
For proportional cycle time, refer to Section 8-6.
Initial value: 3.0%
Setting range: OFF, 0.1 – 999.9%
The same as the output 1 (OUT1) proportional band (P) settin
g
screen.
This screen is displayed when the optional output 2 function is
added.
Initial value: 20 digit
Setting range: 1 – 999 digit
"Hysteresis" for ON-OFF action is set.
This screen is displayed only when P2=OFF is selected on the
preceding 1-11 screen.
Initial value: 120 seconds
Setting range: OFF, 1 – 6000 seconds
The same as the output 1 integral time setting screen.
Initial value: 30 seconds
Setting range: OFF, 1 – 3600 seconds
The same as the output 1 derivative time setting screen.
Initial value: 0 digit
Setting range:
1999 – 5000 digit
value (SV) is set.
For dead band, refer to section 8-7.
Initial value: 0.40
Setting range: OFF, 0.01 – 1.00
The same as the output 1 target value function setting screen.
Initial value: 0.0
Setting range: 0.0 – 99.9%
A lower limit value of control output 2 is set.
Initial value: 100.0
Setting range: + 0.1 – 100.0%
A higher limit value of control output 2 is set.
Setting range: 1 – 120 seconds.
Proportional cycle time of control output 2 is set.
1-10
1-11
1-12
1-13
1-14
1-15
1-16
1-17
1-18
1-19

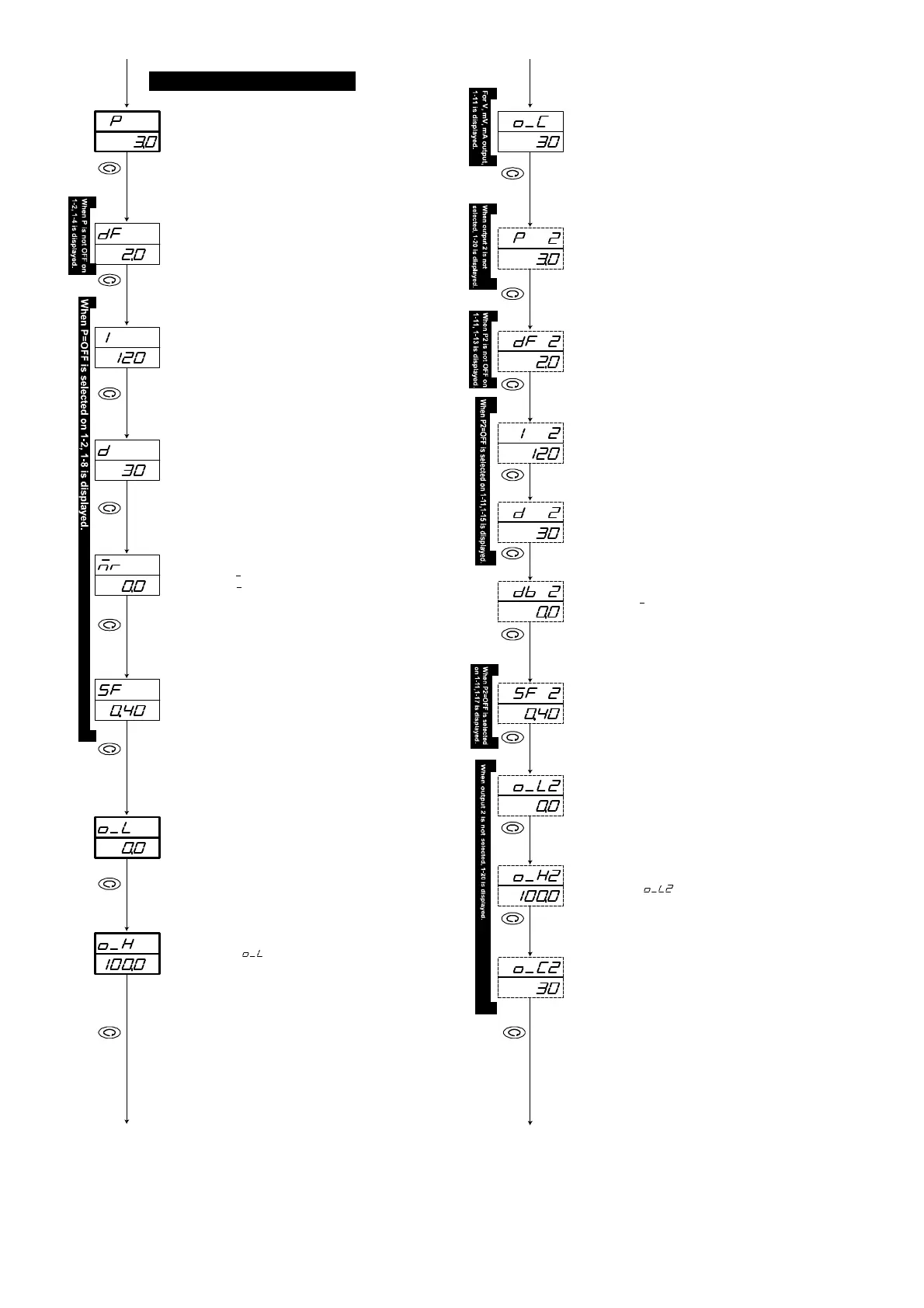

(2) Setting of output
Output 1 hysteresis setting screen
Output 1 integral time setting screen
Output 1 derivative time setting screen.
Output 1 manual reset setting screen
Output 1 target value function setting screen
Output 1 lower limit output limiter setting screen
Output 1 higher limit output limiter setting screen
Output 1 proportional cycle time setting screen
Output 2 (OUT2) proportional band (P) setting screen
Output 2 hysteresis setting screen
Output 2 integral time setting screen
Output deadband setting screen
Output 2 target value function setting screen
Output 2 lower limit output limiter setting screen
Output 2 higher limit output limiter setting screen
Output 2 proportional cycle time setting screen
To the 1-20 screen
Output 2 derivative time setting screen.
The position of the action output 2 against the target set
