3 Installation Procedure Clarity Control Module
3.2 Hardware - Wiring
Start and Ready signals are communicated with Clarity through the Serial
cross DB9F-DB25M cable , so it is not necessary to connect additional
starting cables.

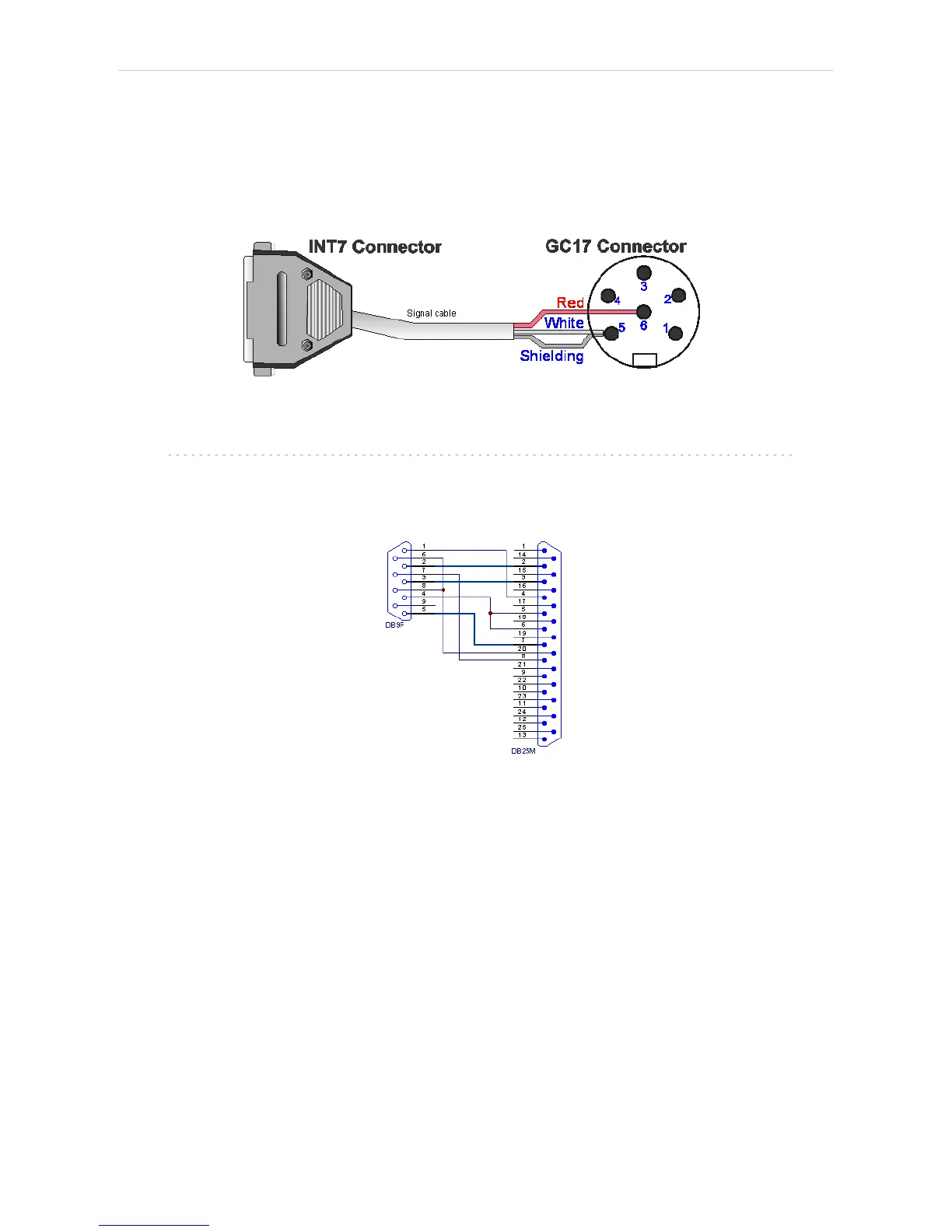

The signal cable has to be connected according to the following scheme:
Fig 2: Signal cable wiring
In a set with the Autosampler synchronization cables will be required.
Note: Typical connections of a GC set with Autosampler can be found in the
Getting Started manual (chapter Device Setup and Wiring).
Typical serial cable wiring is described in the picture.
Fig 3: Serial cross cable DB9F - DB25M
- 4 -
