2 Installation Conditions
LCMS-8045/8050
Pre-Installation Requirements
9

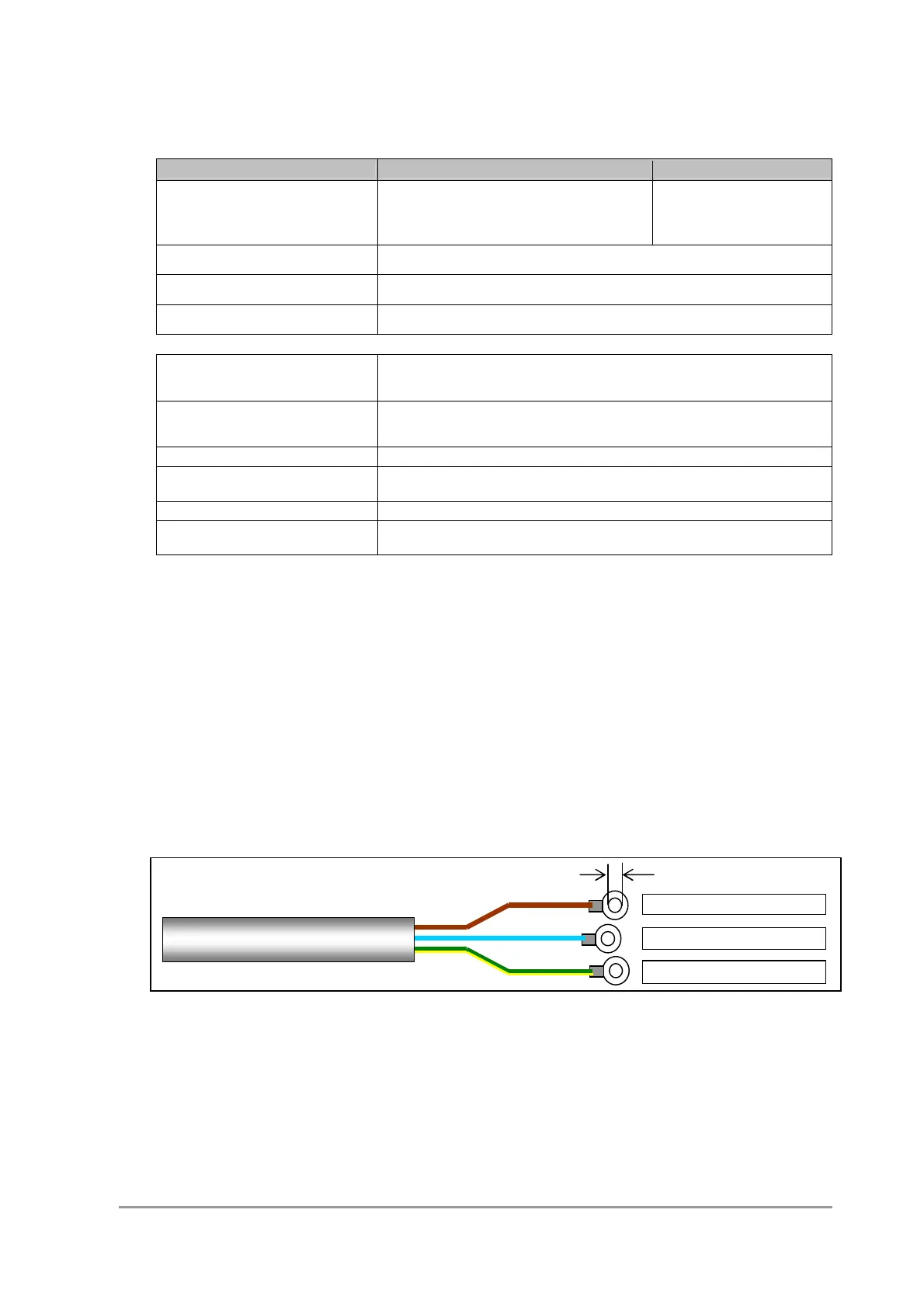

2.8 Required Power Supply
Unit
Voltage
Current
LCMS-8050, 8045
(including E2M28 rotary pump)
230 VAC, single-phase (50/60 Hz)
15(A)
LC system
* See the LC Pre-Installation Requirements.
PC, Monitor, Printer
* See the respective instruction manual.
Nitrogen gas generator
* See the Pre-Installation Requirements of Nitrogen generator.
Power supply voltage range to
guarantee intended performance
218.5 to 241.5 (V)
Power supply voltage range to
guarantee operation
207 to 253 (V)
Frequency stability
± 0.5 Hz max.
Short-circuit rating
(short circuit breaking rating)
300A
Grounding
100Ω max.
Consumption current
(Including LCMS and Rotary pump)
(Max.) 10A (Calorific value:1600W)
(Steady) 4 to 5A (Calorific value :736 – 920W)
z Avoid sharing the same power source with other equipment.
z If the customer request UPS, please contact us.
z Although the instrument is designed to operate properly within a voltage fluctuation range of ±10%,
including the amplitude of the noise superposed on the AC line, the range that guarantees the
performance specification is ±5% including the noise.
z For safety reasons, use a power supply equipped with a ground fault (earth leakage) breaker.
z Have the customer’s equipment manager connect the unit to the ground fault breaker. If receiving power
from an outlet, provide a locking outlet and plug.
z The power capacity of the LC system will vary depending on the system configuration. Connect a power
supply so that the power capacity of the ground fault breaker is not exceeded.
 Shape of Connecting Terminals on MS Unit Power Supply Cable (Must be connected either via a circuit
breaker or grounded 3-prong power plug)
(Brown) AC HOT
(Blue) AC NEUTRAL
(Green/Yellow) GROUND
5.3mm
Power Supply Cable
