2 Installation Conditions
LCMS-8045/8050
Pre-Installation Requirements
15
2.10 Evacuation System

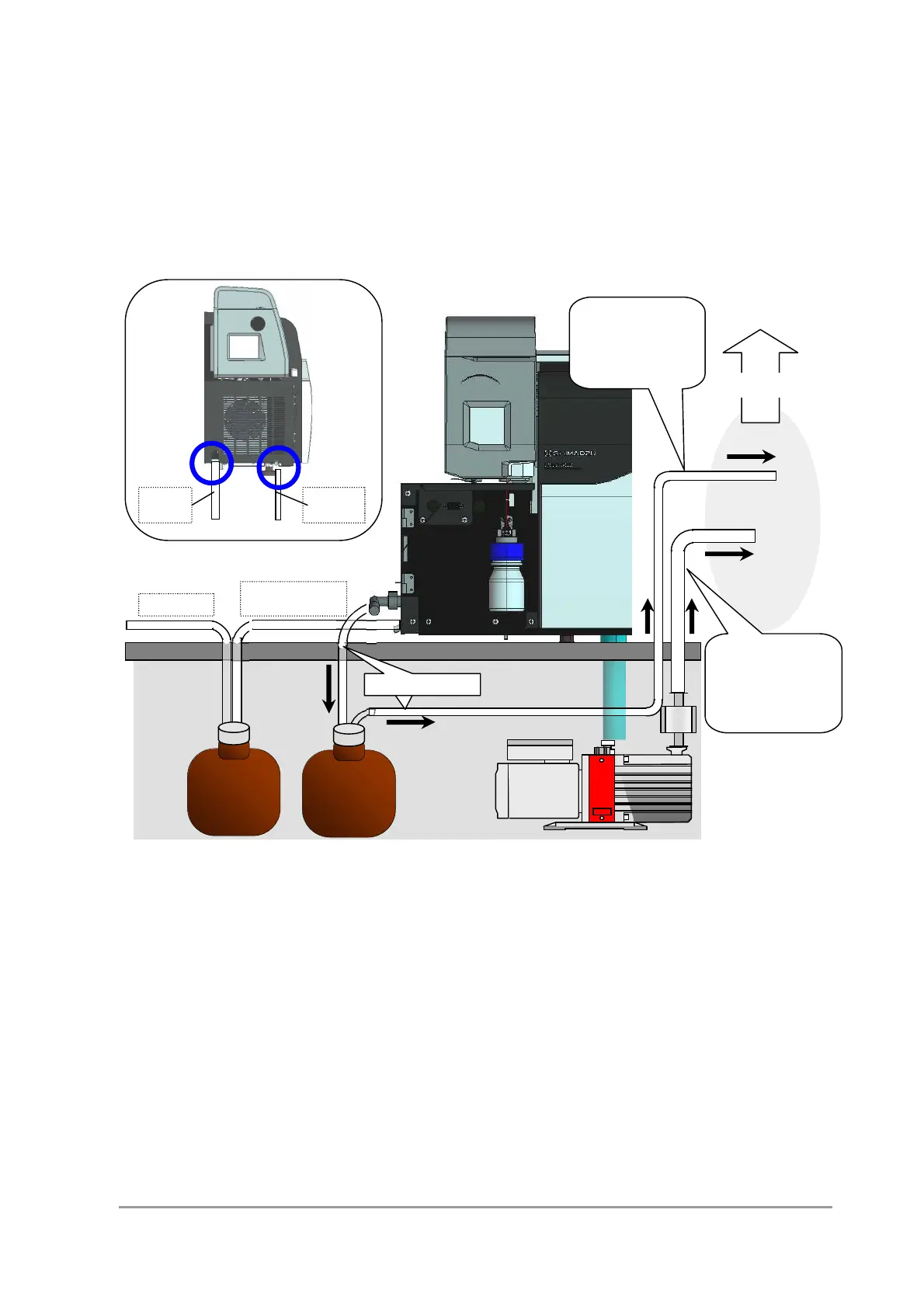

To keep the room clean, the evacuation gases from the rotary pump and the vapors from solvents used for mobile phases
must be vented to evacuation equipment such as a draft chamber or exhaust facilities. The system comes with 5-meter
evacuation hoses respectively for venting the rotary pump and the drain containers. Connect each of the hoses from the
rotary pump and the drain containers to separate evacuation facilities. (Length 10M (max) )
Exhaust flow rate depends on the customer condition. (1 m
3
/mL (max)
A general draft chamber is sufficient. Example: 20 m
3
/min draft chamber
I.D.: 15 mm
O.D.: 22 mm
Length: 5 m
(P/N: S018-31511)
I.D.: 12 mm
O.D.: 18 mm
Length: 5 m
(P/N: S018-31510)
