2 Installation Conditions
LCMS-8045/8050
Pre-Installation Requirements
13
2.9.1.4 When the Customer Already Has a Nitrogen Gas Generator
Prepare the following part when the O.D. of the gas tubing is 1/4" on the nitrogen gas generator.
2.9.2 CID Gas (Argon Gas)
For carrier gas supply pipe (M type)

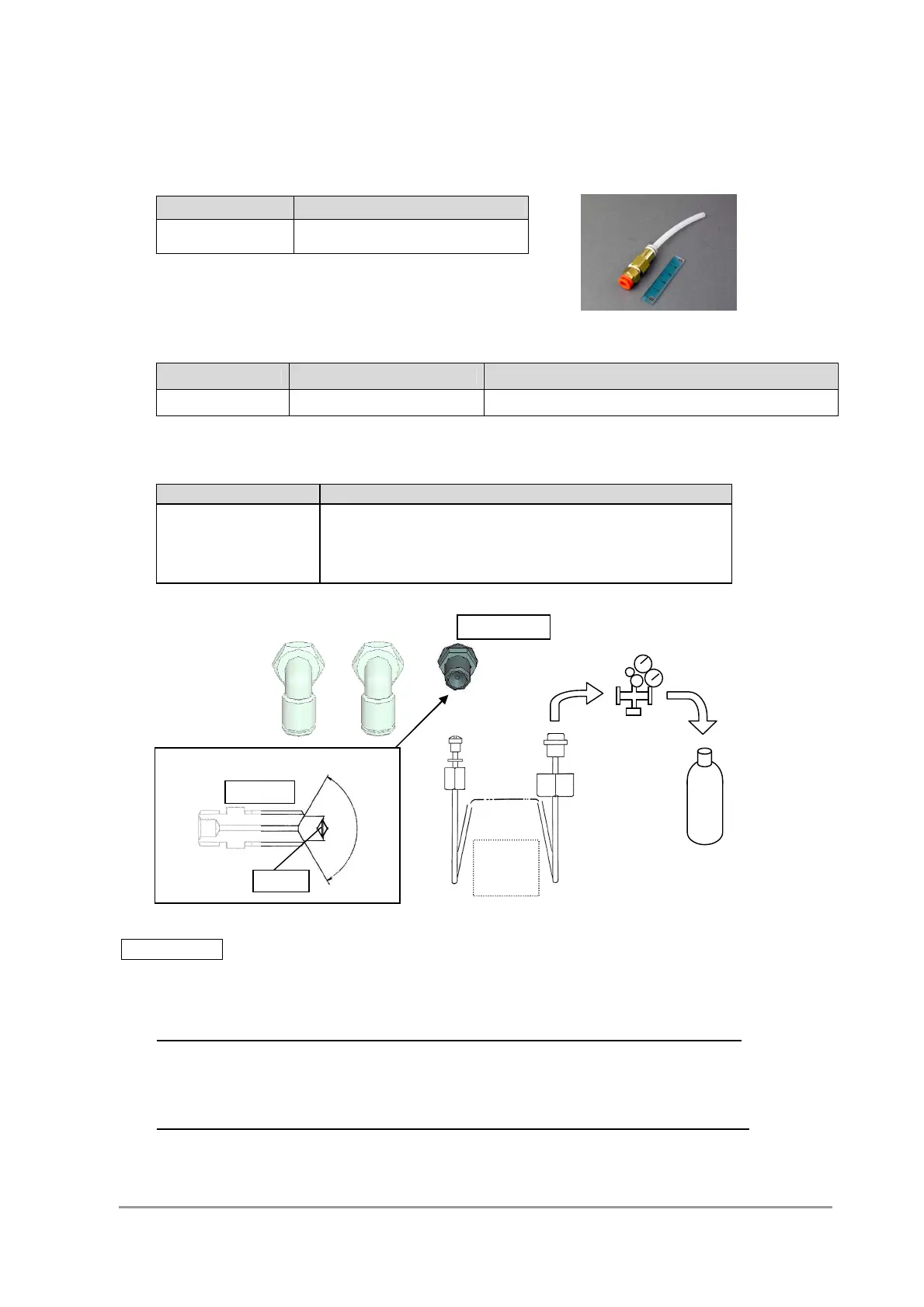

x Piping between argon gas cylinder and LCMS
The following gas supply pipes are available from Shimadzu. Please order them in advance.
S221-35999-01
S201-48067
S201-48067-05
S221-26171-20
(1) Pressure Regurator
(2) Gas supply pipe Length: 2.5 m
(2) Gas supply pipe Length: 5 m
((2) Gas supply pipe for extension Length: 2 m)
LCMS-8045
47L (7m
3
) Cylinder
In case of setting CID gas flow rate to standard (230kPa)
Reference operating time: 7,000 (L) / 0.010(L/min) / 60 (min) / 24(h) = approx. 486(days)
10L (1.5m
3
) Cylinder
In case of setting CID gas flow rate to standard (230kPa)
Reference operating time: 1,500 (L) / 0.010 (L/min) / 60 (min) / 24(h) = approx. 104 (days)
Argon gas connection port
To Next Page
