1.2　Descriptions

Magnetically Levitated Turbo Molecular Pump

INSTRUCTION MANUAL

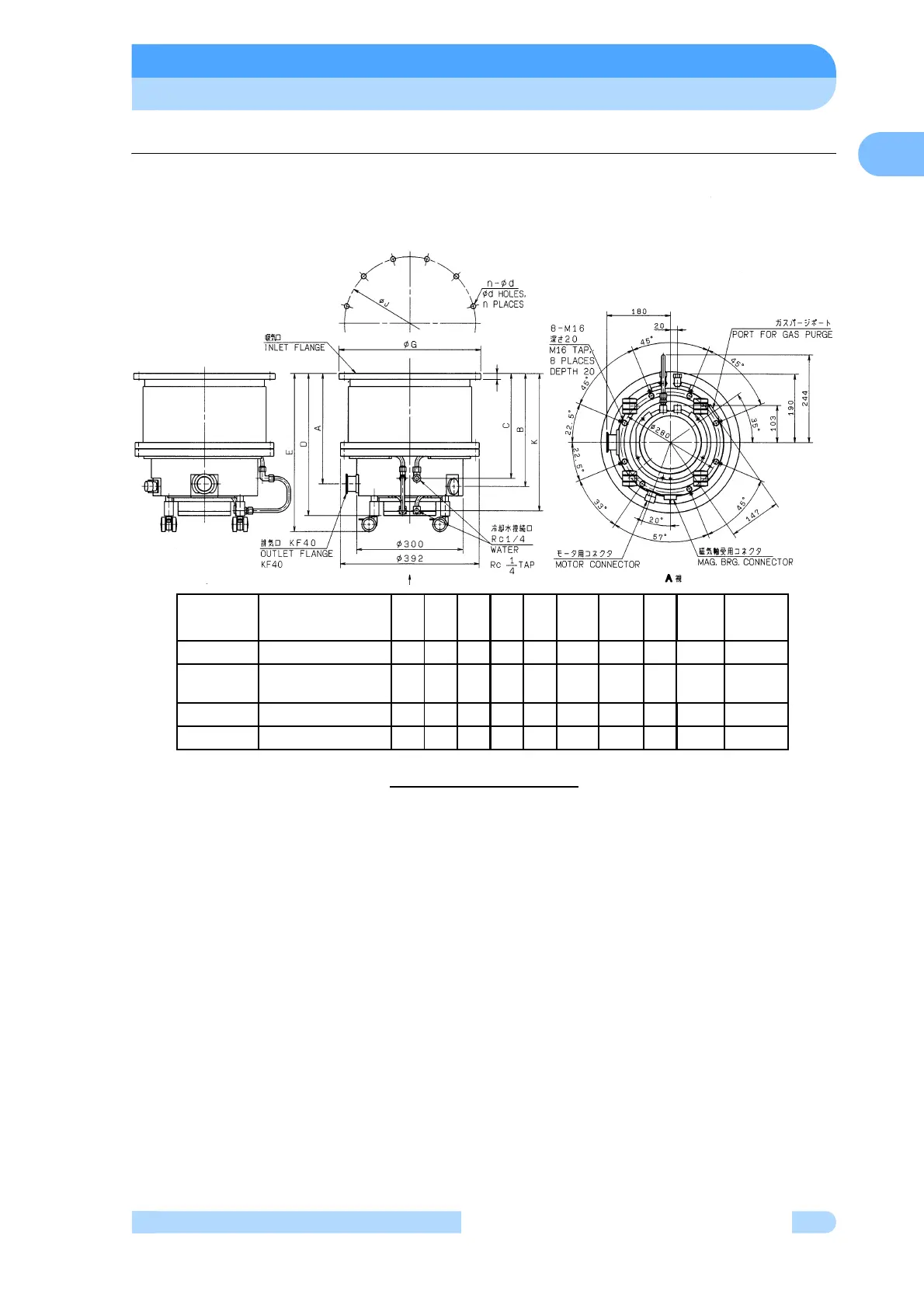

1.2.1.2 Outside drawing of TMP-3403LMC

Fig.1-3

　TMP-3403LMC

INLET

FLANGE

Parts number ABCDE F

φG

φHn-φd

VG350 P/N 262-78503-52 287 294 270 375 420 22

φ450

360

φ420 12-φ15

ISO320B

Special

P/N 262-78503-53 287 294 270 375 420 22.5

φ425

360

φ395 12-φ13

VG300 P/N 262-78503-57 307 314 290 395 440 18.5

φ400

380

φ370 12-φ13

VG250 P/N 262-78503-58 331 338 314 419 464 18.5

φ350

404

φ320 12-φ13
