5. Operation

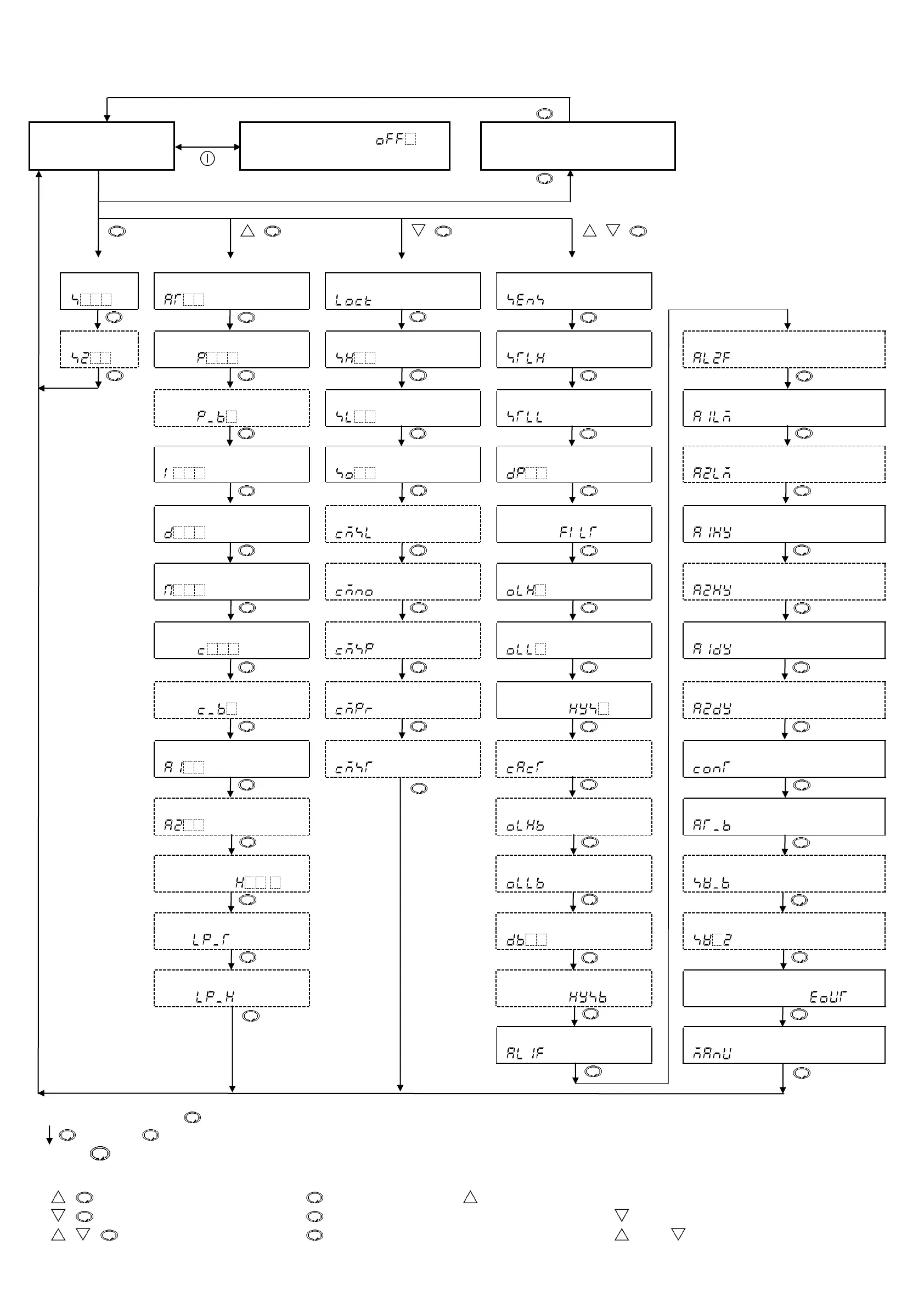

5.1 Operation flowchart
PV/SV display mode
Control output OFF [ ]
or Auto/Manual control
Output MV (manipulated
variable) indication
(Approx. 3sec)
+ + + +
(Approx. 3sec) (Approx. 3sec)
[Main setting mode] [Sub setting mode] [Auxiliary function setting mode 1] [Auxiliary function setting mode 2]
SV1
[ ]
AT/Auto-reset
[ ]
Set value lock
[ ]
Input type
[ ]
SV2
[ ]
OUT1 proportional
band [ ]
SV high limit
[ ]
Scaling high limit
[ ]
A2 type
[ ]
OUT2 proportional
band [ ]
SV low limit
[ ]
Scaling low limit
[ ]
A1 Energized/Deenergized
[ ]
Integral time
[ ]
Sensor correction
[ ]
Decimal point place
[ ]
A2 Energized/Deenergized
[ ]
Derivative time
[ ]
Communication protocol
[ ]
PV filter time
constant [ ]
A1 hysteresis
[ ]
ARW
[ ]
Instrument number
[ ]
OUT1 high limit
[ ]
A2 hysteresis
[ ]
OUT1 proportional
cycle [ ]
Communication speed
[ ]
OUT1 low limit
[ ]
A1 action delayed timer
[ ]
OUT2 proportional
cycle [ ]
Parity
[ ]
OUT1 ON/OFF
hysteresis [ ]
A2 action delayed timer
[ ]
A1 value
[ ]
Stop bit
[ ]
OUT2 action mode
[ ]
Direct/Reverse control action
[ ]
A2 value
[ ]
OUT2 high limit
[ ]
AT bias
[ ]
Heater burnout
alarm value [ . ]
OUT2 low limit
[ ]
SVTC bias
[ ]
Loop break alarm
time [ ]
Overlap/Dead band
[ ]
SV2 indication
[ ]
Loop break alarm
span [ ]
OUT2 ON/OFF
hysteresis [ ]
Output status selection
when input abnormal [ ]
A1 type
[ ]
OUT/OFF key function
[ ]
[Explanation of the key]
• : If the key is pressed, the set value is saved, and the controller proceeds to the next setting item.
• If the key is pressed for approx. 3sec, the controller reverts to the PV/SV display mode from any mode.
[Key operation]
• + : Press the while pressing the key.
• + (Approx. 3sec) : Press the for approx. 3 sec while holding down the key.
• + + ( Approx. 3sec) : Press the for approx. 3 sec while holding down the and keys.
• Dotted lines are optional and they appear only when the options are added.
