14
2. INSTALLING THE CLAMPS, EXTENSIONS AND ARM PADS
3
H

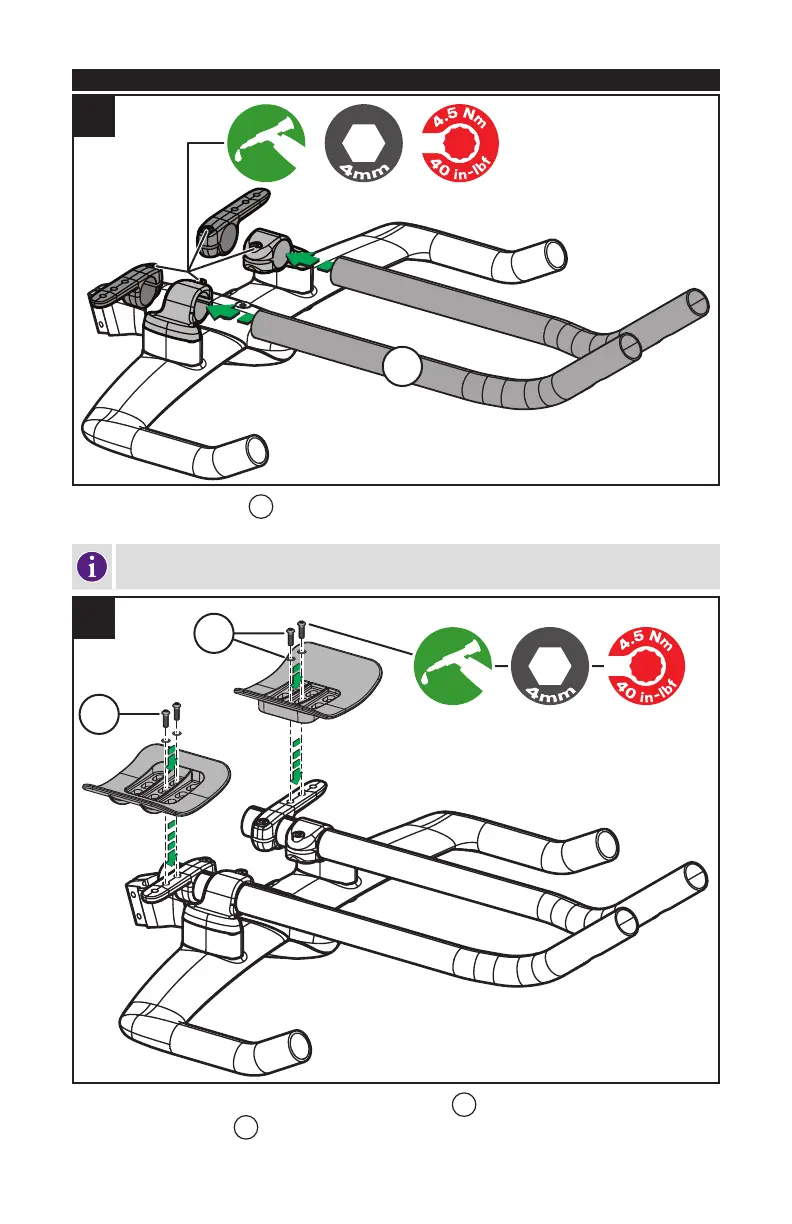

Fig.3: Install the extensions
H
into the brackets and arm rest holders. If the extensions are difficult to insert
into the brackets, apply a light coat of grease to the opening of the bracket before installing the extensions.
The extensions have the option of being switched to either side, for a wider or narrower hand position. They can
also be rotated inward or outward to fine-tune the angle of the hand position (see page <OV>).
I
J
4
Fig.4: Apply grease to the bolts, then install the arm pad holders
I
on the extension clamps with 2 x pad
holder bolts and washers
J
(M6x10mm length, 4mm Allen hex round head bolts). The pad holders have three
lateral and three fore-aft position options (see page 15).
