6. FUELSELAGE INSTALLATION
1. INSTALLING THE FUELSELAGE
The Specialized Fuelselage Integrated Hydration System reservoir is designed to fit exclusively with Specialized
Shiv carbon frames, through the top tube port and into the down tube. The Fuelselage hose can be trimmed to the
desired length, and combined with the mouth port magnet and matching magnet loop, the valve location can be
customized to the rider’s ideal location.
1
2
3

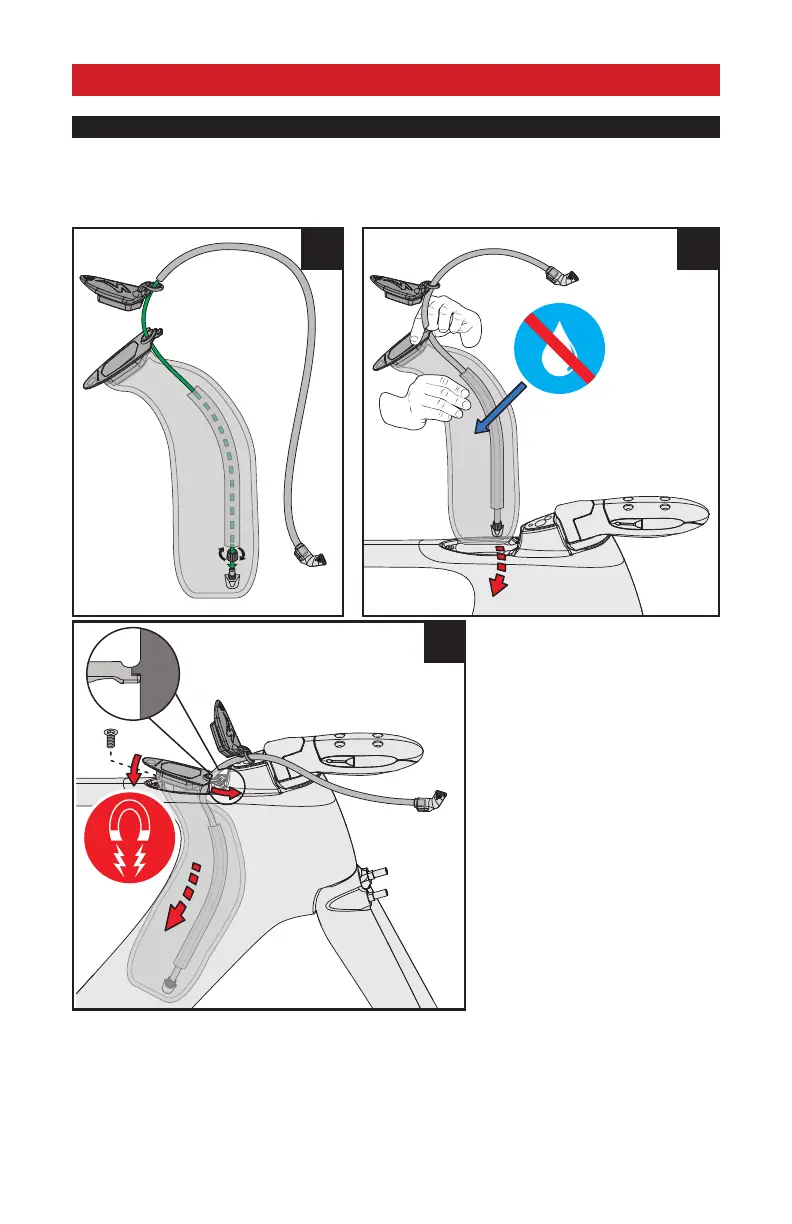

Fig.1: Thread the hose through the reservoir top cover, the mouth port, then through the hose sleeve.
Fig.1: Place the threaded nut onto the hose, below the hose sleeve.
Fig.1: Press the hose onto the fitting at the base of the reservoir, then thread the nut onto the fitting.
Fig.2: Insert the reservoir into the port in the top tube of the frame. Use the hose to help guide the reservoir into
the frame, to prevent bunching.
