Shiv Expert - ADJUSTING THE FRONT AND REAR BRAKE ASSEMBLIES

26
6

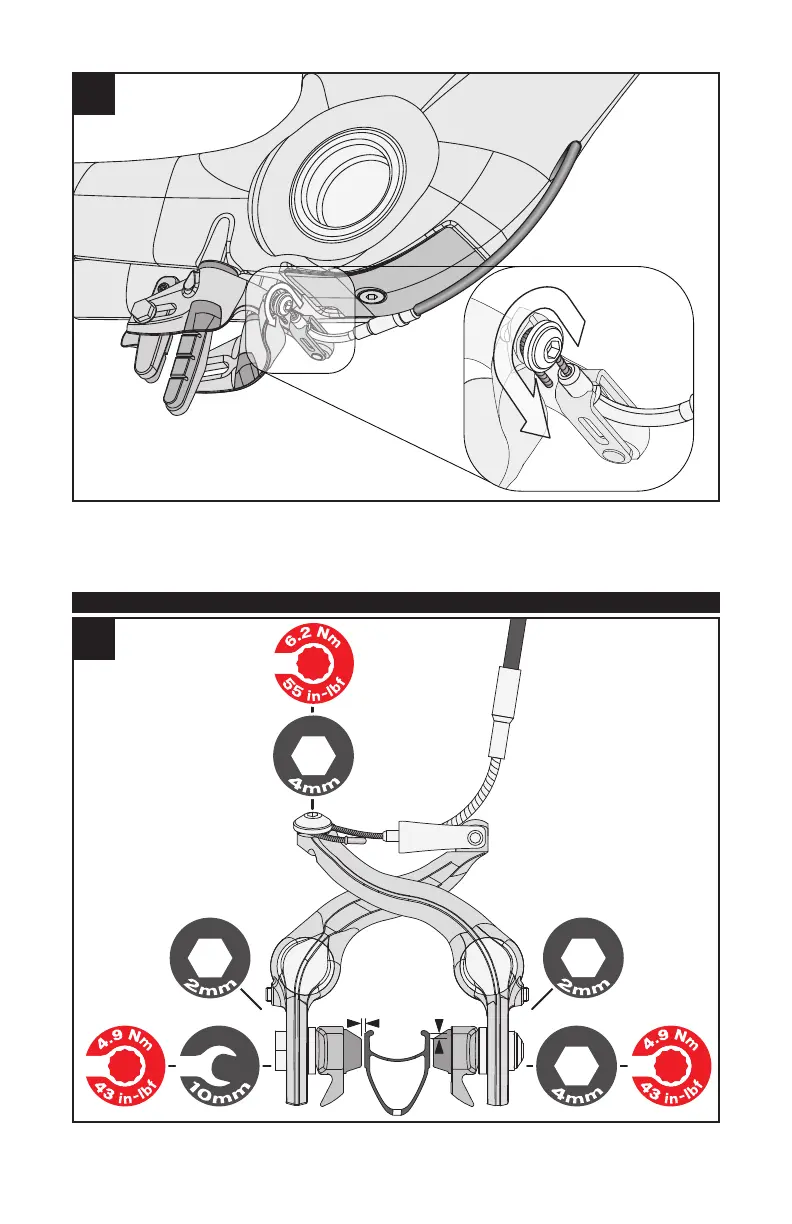

 Fig.6: Route the cable through the brake lever, into the housing and through the rear brake cable noodle. Repeat
the routing method for the front brake.
 Fig.6: Route the cable around the brake pinch bolt, then apply the specified torque shown below.
4. ADJUSTING THE FRONT AND REAR BRAKE ASSEMBLIES
1-2mm1mm
7
 Fig.7: Apply the same adjustments to the front and rear brakes.
