2. INSTALLING THE FRONT BRAKE ASSEMBLY
A
B
C
2

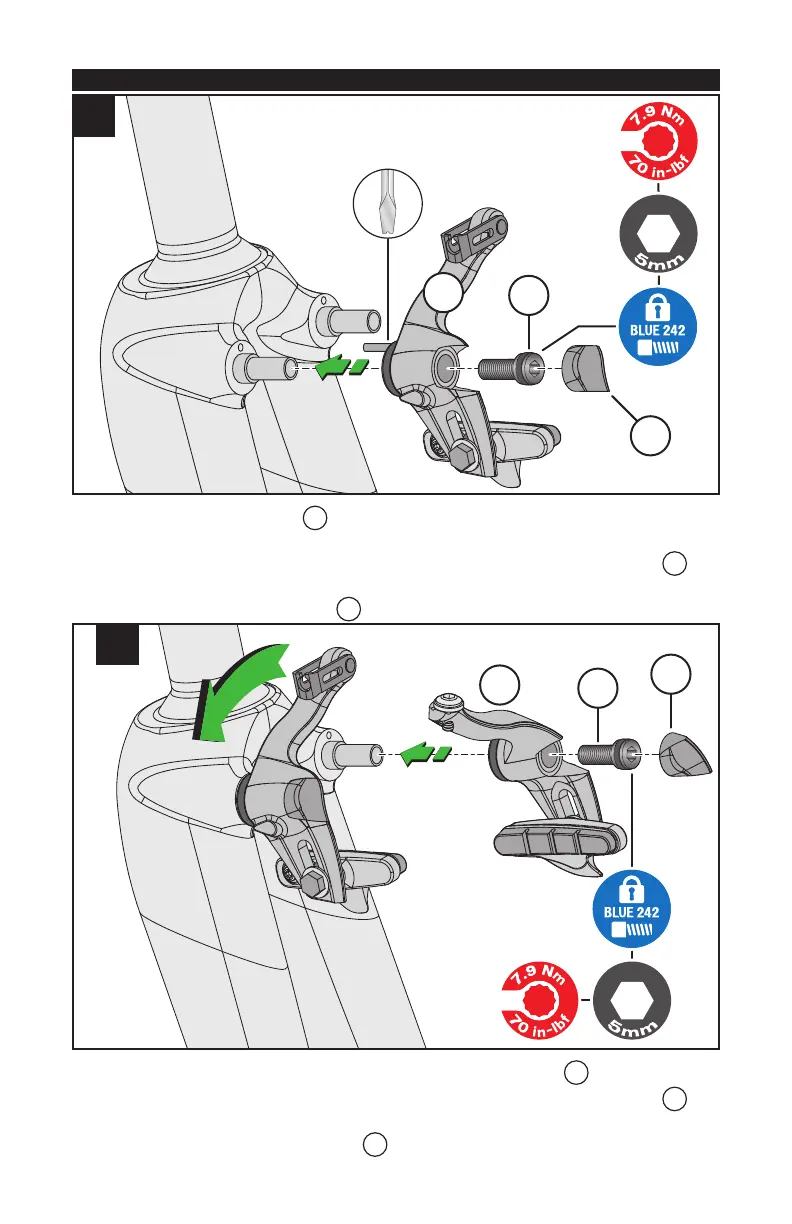

 Fig.2: Install the drive-side brake arm
A
. A flathead screwdriver with a notch in the flat edge can help rotate
the spring into the fork’s spring hole.
 Fig.2: If the bolts do not have blue loctite from the factory, apply blue loctite, then install the brake bolt
B
and
tighten to 70 in-lbf (7.9 Nm).
 Fig.2: Install the drive-side brake bolt cover
C
.
D
E
F
3
 Fig.3: Rotate the drive-side brake out of the way and install the non-drive-side brake
D
.
 Fig.3: If the bolts do not have blue loctite from the factory, apply blue loctite, then install the brake bolt
E
and
tighten to 70 in-lbf (7.9 Nm).
 Fig.3: Install the non-drive-side brake bolt cover
F
.
