Shiv Expert - Seatpost Setback Options

 Fig.3: Apply grease to the bolts, then install the seat collar plate
H
, bolts
I
(M5x20mm, 4mm Allen hex
head) and domed washers
J
.
 Fig.3: Adjust the seatpost to the desired height for proper leg extension.
 Fig.3: Alternate the torque to the seat collar bolts, in 5 in-lbf (0.6 Nm) increments, up to a final torque setting of
45 in-lbf (5.1 Nm) to ensure an even load distribution to the seatpost. Once complete, the gap between the frame
and the seat collar should be equal on both sides.
2. SEATPOST SETBACK OPTIONS
25mm
-12.5mm
-37.5mm
+37.5mm
+12.5mm
25mm25mm
4

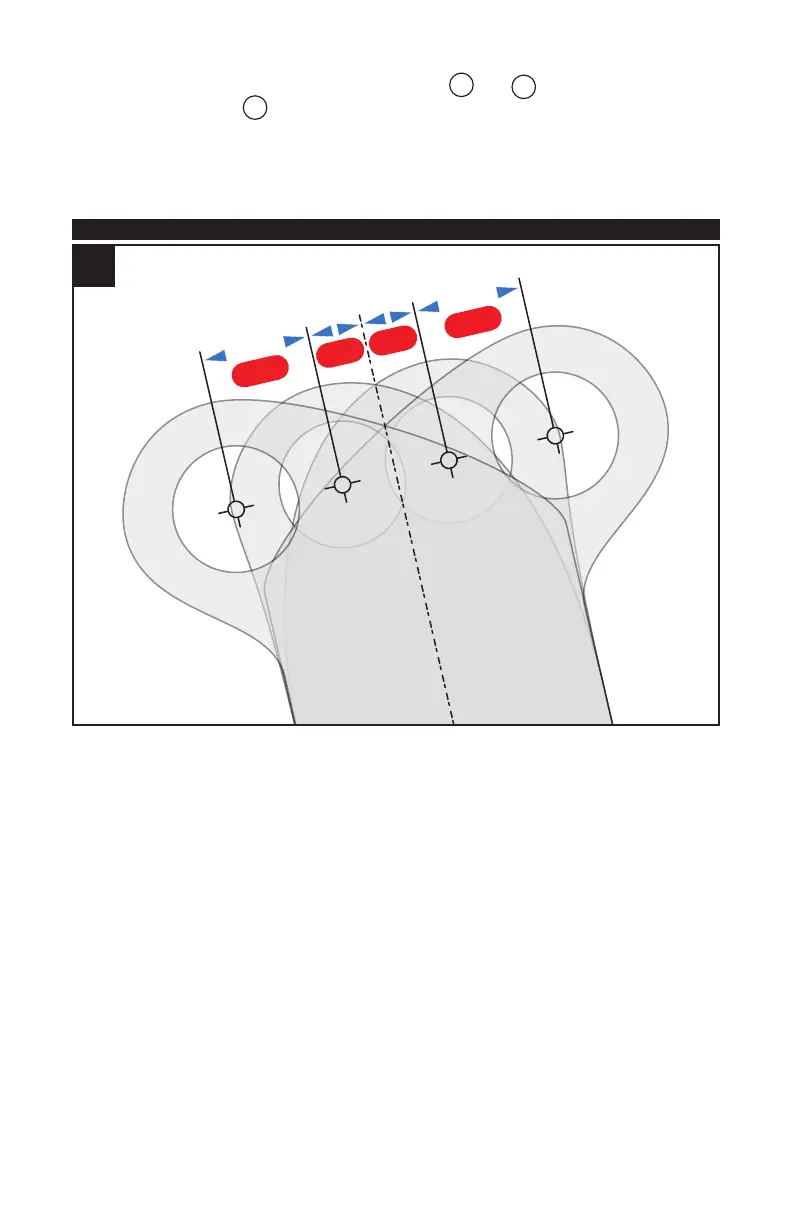

 Fig.4: The Shiv seatposts are available in +/- 12.5mm and +/- 37.5mm setbacks. The seatposts are also
reversible, to offer four positions with 25mm offset.
