over the saddle rails.
The Shiv seatpost can be assembled with outer rail clamps for 7x7 alloy rails or 7x9 carbon rails. Choose the
rail clamps that correspond to the saddle.
Ensure that the wedges are parallel to each other. If the wedges are offset relative to each other, they can
force the saddle rails twist, which can result in permanently bent rails and an uneven saddle position.
Fig.1: Install the nut
D
. To avoid damage to the clamp mechanism, the arrows must align to ensure the tab is
placed in the groove of the outer cap
E
.
Fig.1: Install the bolt
F
. Use blue threadlocker (Loctite 242) on the threads, place into the opposite side outer cap
and thread into the nut. Tighten lightly.
Install the seatpost into the seat tube.
G
2

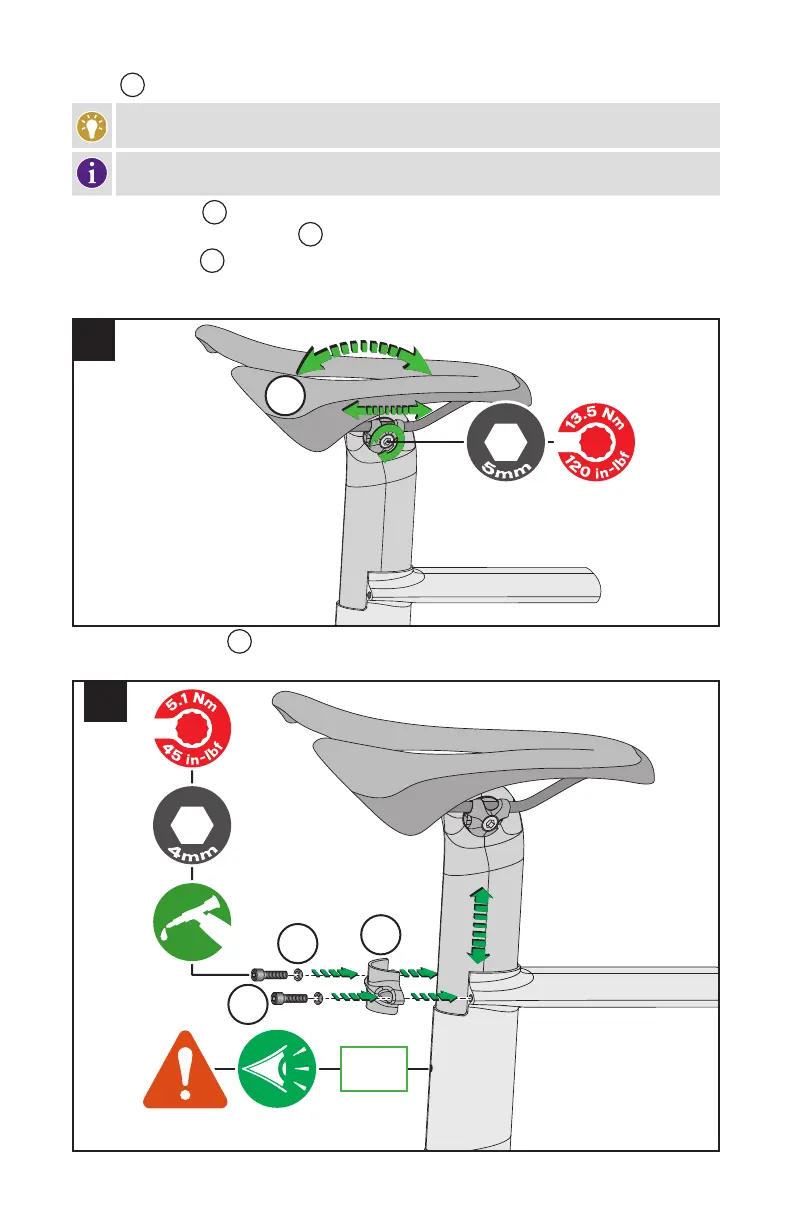

Fig.2: Adjust the saddle
G
to the desired tilt angle and fore-aft position.
Fig.2: Torque the seatpost bolt to 120 in-lbf (13.5 Nm).
H
I
J
3
SIGHT
HOLE
