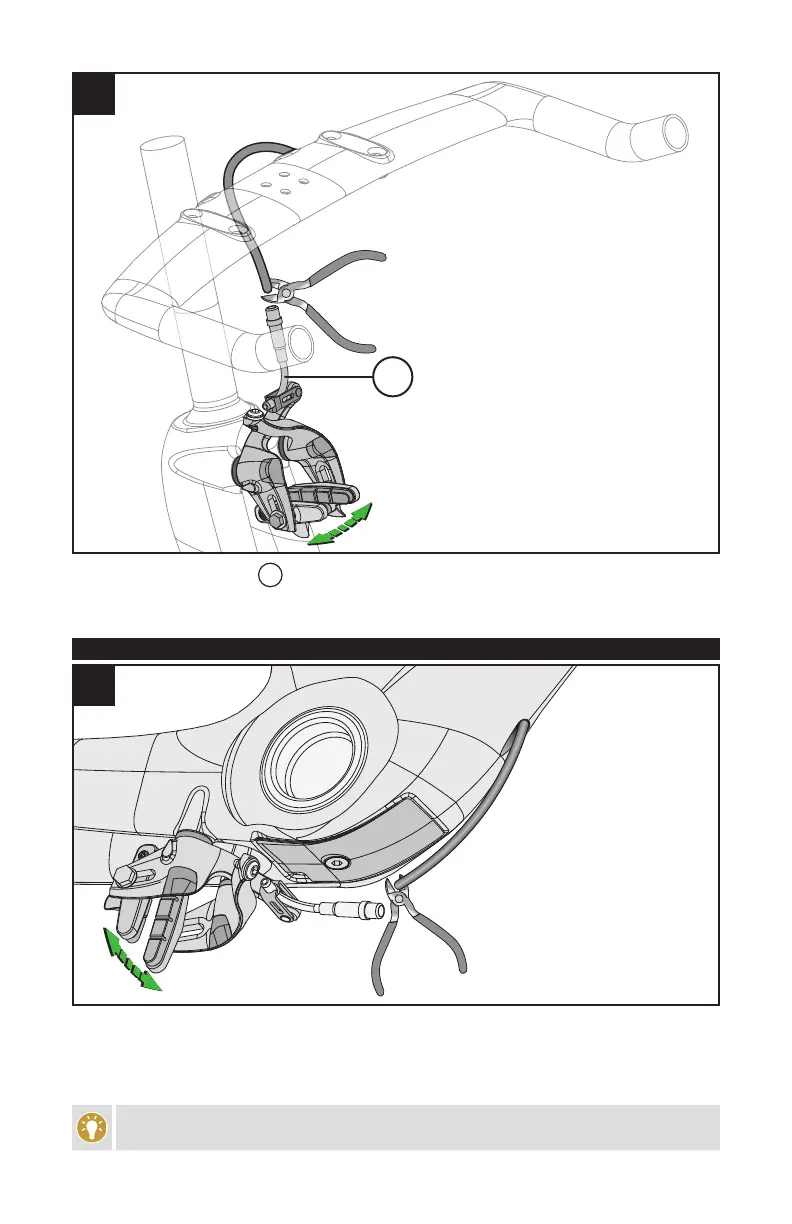

Fig.4: Place the cable noodle
G
in the cable noodle guide and trim the cable housing so that it has a smooth
path to the cable noodle that’s as short as possible while still fully seating in the noodle. Make sure it stays fully
seated through the entire range of the brake, from closed to open.
3. INSTALLING THE REAR BRAKE ASSEMBLY
5
Fig.5: Install the rear brake arms, following the same steps as the front brake installation.
Fig.5: Place the cable noodle in the cable noodle guide and trim the cable housing so that it has a smooth path
to the cable noodle that’s as short as possible while still fully seating in the noodle. Make sure it stays fully seated
through the entire range of the brake, from closed to open.
Remove the crank to ease installation and adjustment of the rear brakes.
