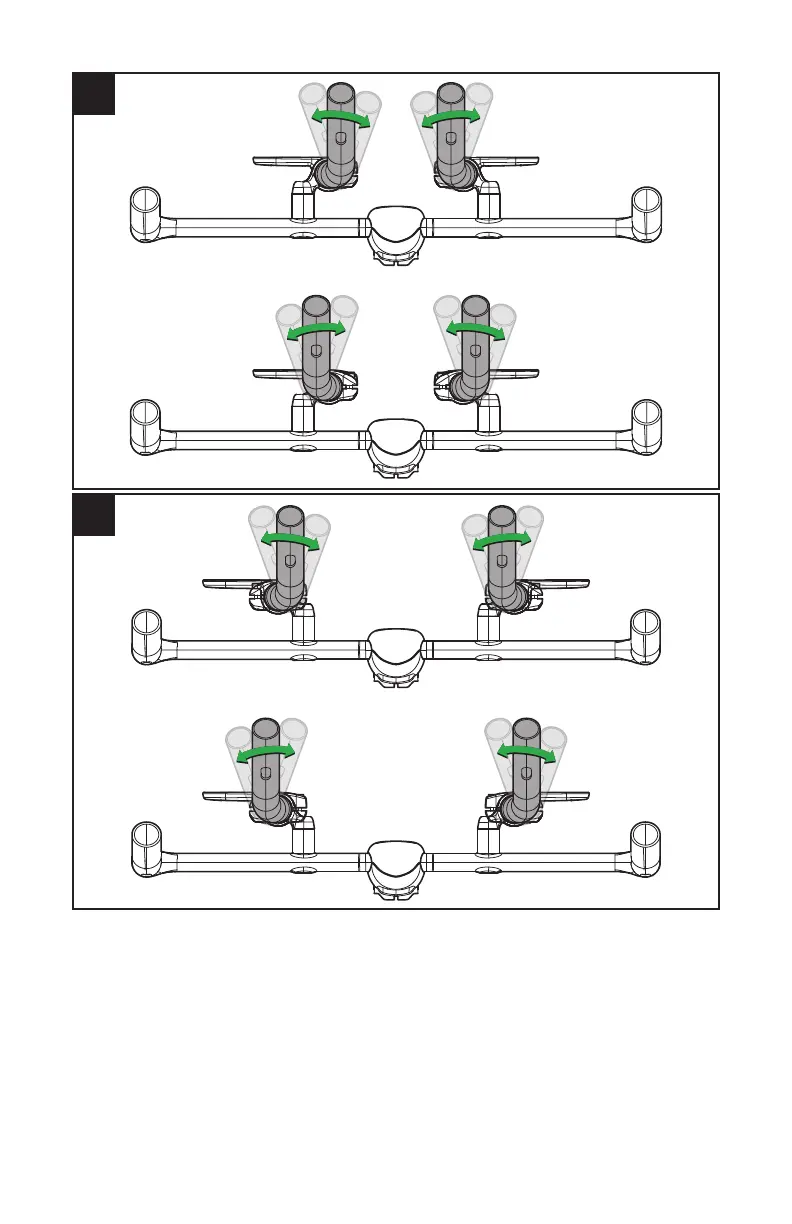

Fig.7 & 8: The extensions and extension brackets have the ability to be swapped left to right, to adjust the
stance width of the hand grip area. They can also be moved fore-aft for length adjustment and rotated for
additional hand grip area width and angle fine-tuning.
Once the fit is determined, torque the riser bolts, extension clamp and pad holder bolts according to the torque
specifications listed in the chart on page 2.
Place the foam pads on the pad holders.
