Phantom 130 Spot
Channel 10 – Gobo rotation
0-63
Gobo indexing
64-145
Clockwise rotation (CW) from slow to fast
146-149
Stop
150-231
Counterclockwise rotation (CCW) from slow to fast
232-255
Gobo bouncing, from quick short bounce to longer rotation bounce

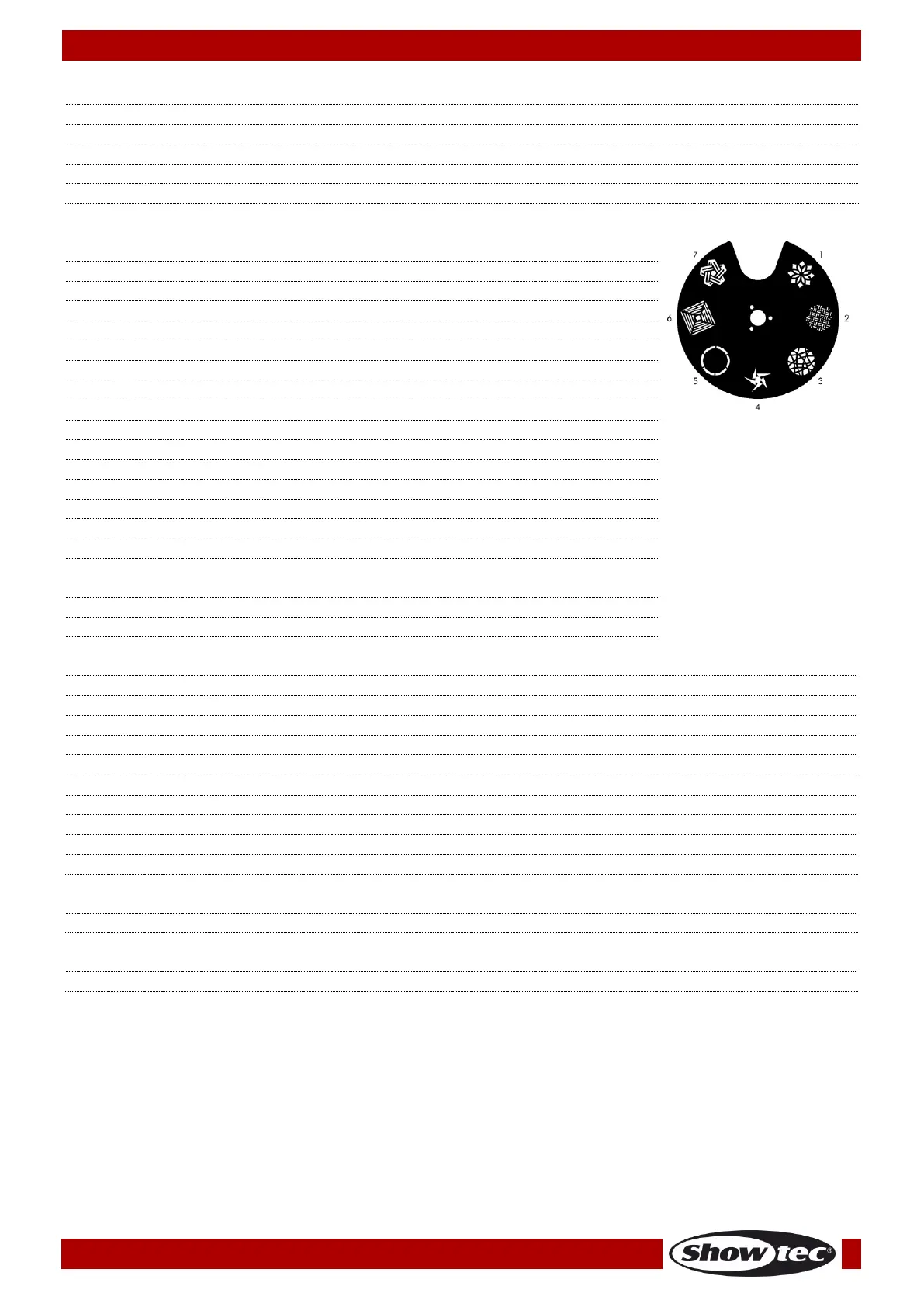

Channel 11 – Static Gobo wheel + Gobo Shake
0-7
Open / White
8-15
Gobo 1 (Metal)
16-23
Gobo 2 (Metal)
24-31
Gobo 3 (Metal)
32-39
Gobo 4 (Metal)
40-47
Gobo 5 (Metal)
48-55
Gobo 6 (Metal)
56-63
Gobo 7 (Metal)
64-71
Gobo Shake 7 from slow to fast
72-79
Gobo Shake 6 from slow to fast
80-87
Gobo Shake 5 from slow to fast
88-95
Gobo Shake 4 from slow to fast
96-103
Gobo Shake 3 from slow to fast
104-111
Gobo Shake 2 from slow to fast
112-119
Gobo Shake 1 from slow to fast
120-127
Open / White
128-189
Counterclockwise rotation (CCW) rainbow effect from slow to
fast
190-193
Stop
194-255
Clockwise rotation (CW) rainbow effect from slow to fast
Channel 12 – Prism
0-3
Not functional
4-6
Prism 1(6-facet circular prism)
7-65
Prism 1 clockwise rotation (CW) prism effect from slow to fast
66-123
Prism 1counterclockwise rotation (CCW) prism effect from slow to fast
124-127
Prism 1
128-131
Not functional
132-134
Prism 2 (5-facet linear prism)
135-193
Prism 2 clockwise rotation (CW) prism effect from slow to fast
194-251
Prism 2 counterclockwise rotation (CCW) prism effect from slow to fast
252-255
Prism 2
Channel 13 – Focus
0-255
Continuous adjustment from far to near
Channel 14 – Zoom
0-255
Continuous adjustment from small to big
