Shure MXA310 - Packet Bridge

Shure Incorporated
32/42
1.
2.

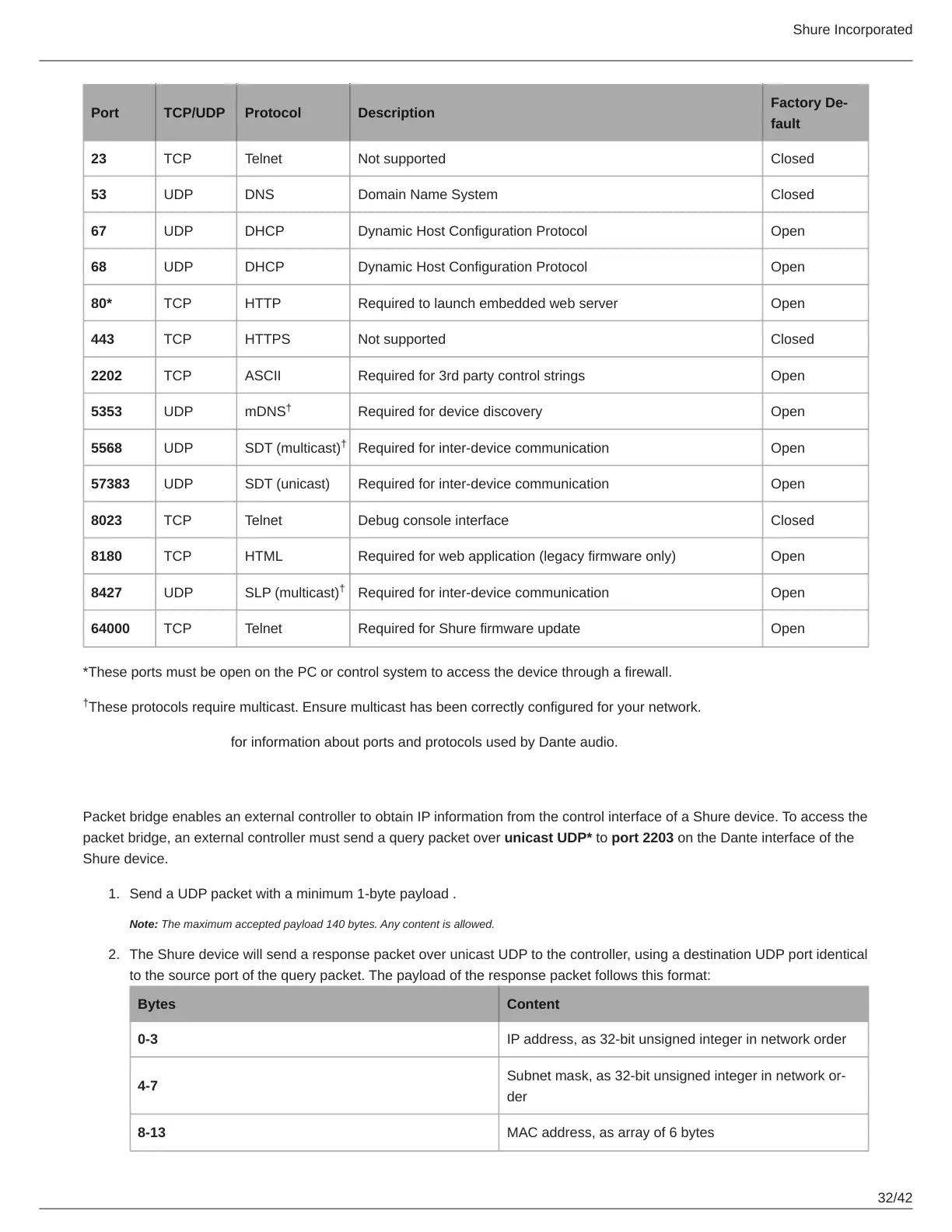

Port TCP/UDP Protocol Description
Factory De
fault
23 TCP Telnet Not supported Closed
53 UDP DNS Domain Name System Closed
67 UDP DHCP Dynamic Host Configuration Protocol Open
68 UDP DHCP Dynamic Host Configuration Protocol Open
80* TCP HTTP Required to launch embedded web server Open
443 TCP HTTPS Not supported Closed
2202 TCP ASCII Required for 3rd party control strings Open
5353 UDP mDNS Required for device discovery Open
5568 UDP SDT (multicast) Required for inter-device communication Open
57383 UDP SDT (unicast) Required for inter-device communication Open
8023 TCP Telnet Debug console interface Closed
8180 TCP HTML Required for web application (legacy firmware only) Open
8427 UDP SLP (multicast) Required for inter-device communication Open
64000 TCP Telnet Required for Shure firmware update Open
*These ports must be open on the PC or control system to access the device through a firewall.
These protocols require multicast. Ensure multicast has been correctly configured for your network.
See Audinate's website for information about ports and protocols used by Dante audio.
Packet Bridge
Packet bridge enables an external controller to obtain IP information from the control interface of a Shure device. To access the
packet bridge, an external controller must send a query packet over unicast UDP* to port 2203 on the Dante interface of the
Shure device.
Send a UDP packet with a minimum 1-byte payload .
Note: The maximum accepted payload 140 bytes. Any content is allowed.
The Shure device will send a response packet over unicast UDP to the controller, using a destination UDP port identical
to the source port of the query packet. The payload of the response packet follows this format:
Bytes Content
0-3 IP address, as 32-bit unsigned integer in network order
4-7
Subnet mask, as 32bit unsigned integer in network or
der
8-13 MAC address, as array of 6 bytes
†
†
†
†
