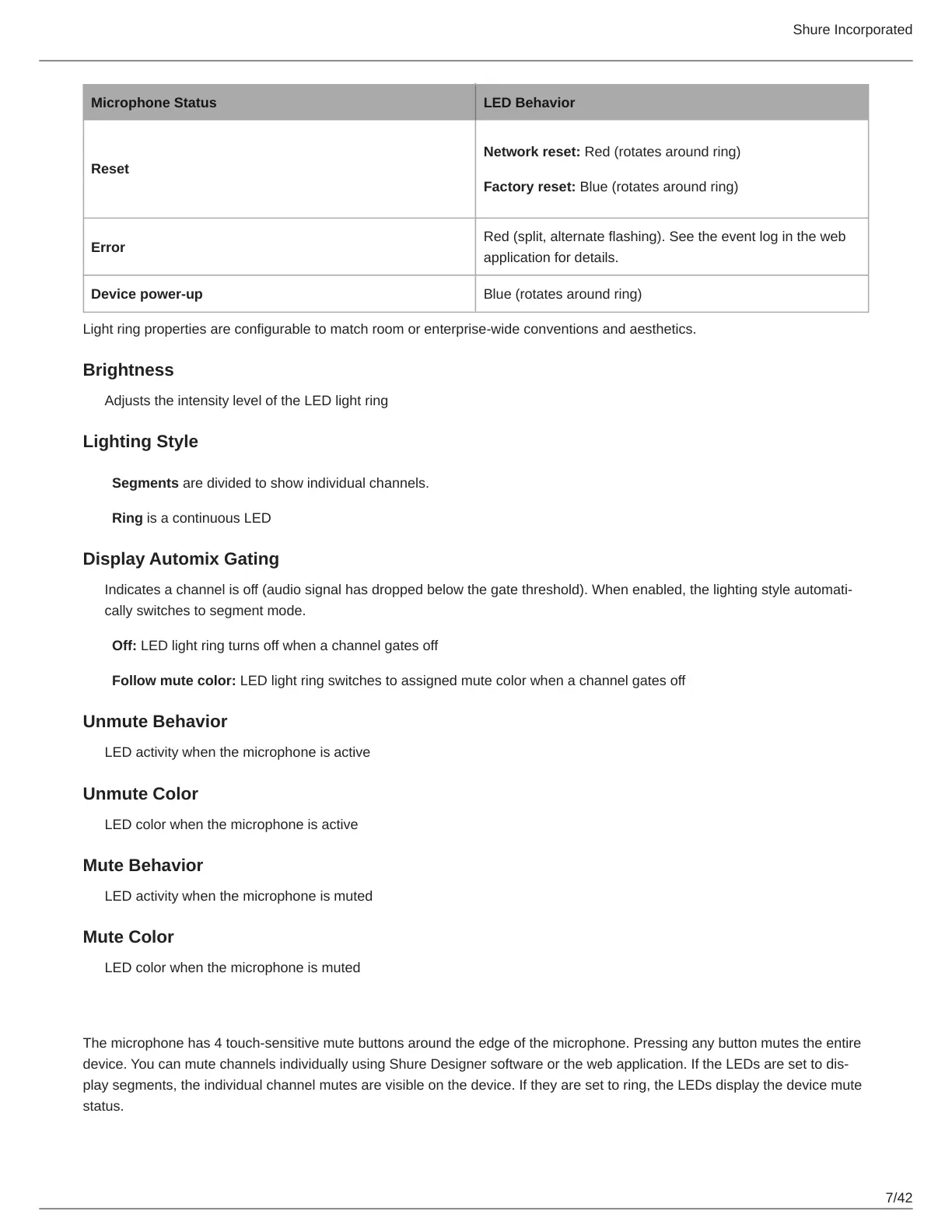

Microphone Status LED Behavior
Reset
Network reset: Red (rotates around ring)
Factory reset: Blue (rotates around ring)
Error
Red (split, alternate flashing). See the event log in the web
application for details.
Device power-up Blue (rotates around ring)
Light ring properties are configurable to match room or enterprise-wide conventions and aesthetics.
Brightness
Adjusts the intensity level of the LED light ring
Lighting Style
Segments are divided to show individual channels.
Ring is a continuous LED
Display Automix Gating
Indicates a channel is off (audio signal has dropped below the gate threshold). When enabled, the lighting style automati
cally switches to segment mode.
Off: LED light ring turns off when a channel gates off
Follow mute color: LED light ring switches to assigned mute color when a channel gates off
Unmute Behavior
LED activity when the microphone is active
Unmute Color
LED color when the microphone is active
Mute Behavior
LED activity when the microphone is muted
Mute Color
LED color when the microphone is muted
Mute Buttons
The microphone has 4 touch-sensitive mute buttons around the edge of the microphone. Pressing any button mutes the entire
device. You can mute channels individually using Shure Designer software or the web application. If the LEDs are set to dis
play segments, the individual channel mutes are visible on the device. If they are set to ring, the LEDs display the device mute
status.
