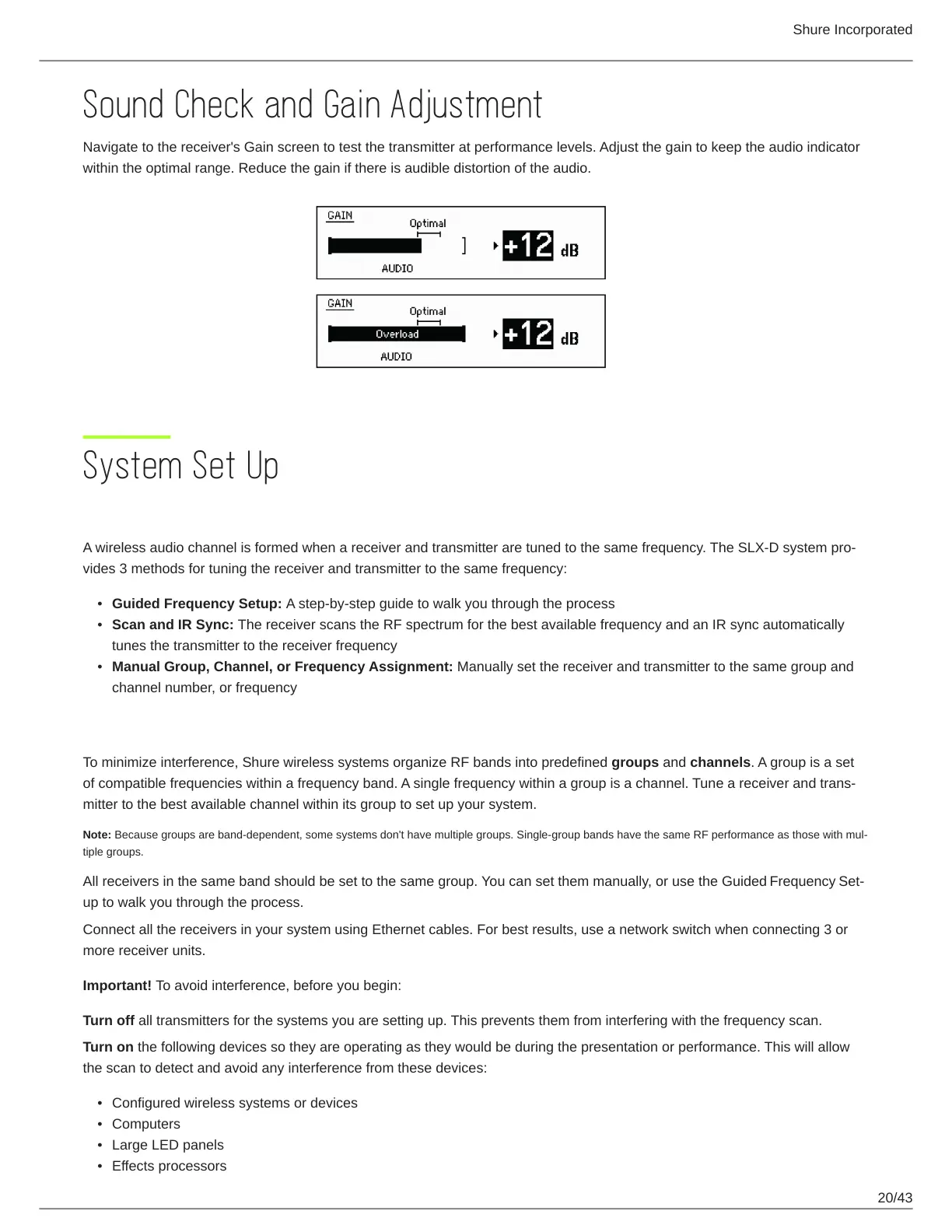

Sound Check and Gain Adjustment
Navigate to the receiver's Gain screen to test the transmitter at performance levels. Adjust the gain to keep the audio indicator
within the optimal range. Reduce the gain if there is audible distortion of the audio.
System Set Up
Creating Audio Channels
Awirelessaudiochannelisformedwhenareceiverandtransmitteraretunedtothesamefrequency.TheSLXDsystempro
vides 3 methods for tuning the receiver and transmitter to the same frequency:
Guided Frequency Setup: A step-by-step guide to walk you through the process
Scan and IR Sync: The receiver scans the RF spectrum for the best available frequency and an IR sync automatically
tunes the transmitter to the receiver frequency
Manual Group, Channel, or Frequency Assignment: Manually set the receiver and transmitter to the same group and
channel number, or frequency
What are Groups and Channels?
To minimize interference, Shure wireless systems organize RF bands into predefined groups and channels. A group is a set
ofcompatiblefrequencieswithinafrequencyband.Asinglefrequencywithinagroupisachannel.Tuneareceiverandtrans
mitter to the best available channel within its group to set up your system.
Note: Becausegroupsarebanddependent,somesystemsdon'thavemultiplegroups.SinglegroupbandshavethesameRFperformanceasthosewithmul
tiple groups.
All receivers in the same band should be set to the same group. You can set them manually, or use the Guided Frequency Set
up to walk you through the process.
Connect all the receivers in your system using Ethernet cables. For best results, use a network switch when connecting 3 or
more receiver units.
Important! To avoid interference, before you begin:
Turn off all transmitters for the systems you are setting up. This prevents them from interfering with the frequency scan.
Turn on the following devices so they are operating as they would be during the presentation or performance. This will allow
the scan to detect and avoid any interference from these devices:
Configured wireless systems or devices
Computers
Large LED panels
Effects processors

Shure SLX D Series Specifications

General

Encryption	256-bit AES
Latency	3.2 ms
RF Sensitivity	-97 dBm at 10-5 BER
System Type	Digital Wireless
Operating Range	Up to 100 m (300 ft) line of sight
Audio Frequency Response	20 Hz – 20 kHz
Number of Channels	Up to 32 per band
Audio Output Connectors	XLR, 1/4"
Networking	Ethernet
RF Output Power	10 mW (region dependent)
Power Requirements	2 AA batteries or SB903 rechargeable battery
Battery Life	Up to 10 hours (with standard AA batteries)
Dimensions	Varies by model
Weight	Varies by model
Frequency Range	470-952 MHz (region dependent)
Dynamic Range	120 dB, A-weighted
Signal-to-Noise Ratio	120 dB, A-weighted
