CD players

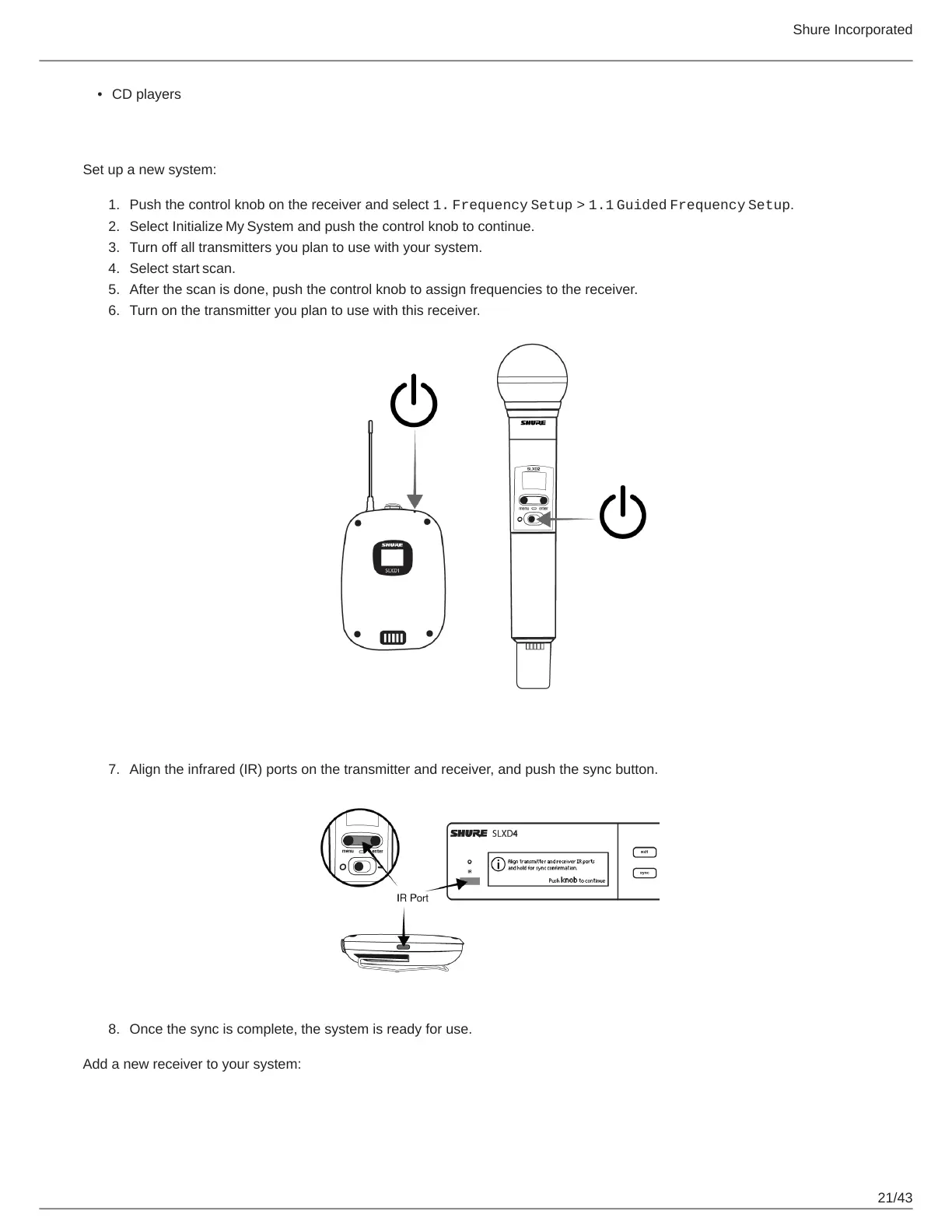

Using the Guided Frequency Setup
Set up a new system:
Push the control knob on the receiver and select 1. Frequency Setup > 1.1 Guided Frequency Setup.
Select Initialize My System and push the control knob to continue.
Turn off all transmitters you plan to use with your system.
Select start scan.
After the scan is done, push the control knob to assign frequencies to the receiver.
Turn on the transmitter you plan to use with this receiver.
Align the infrared (IR) ports on the transmitter and receiver, and push the sync button.
Once the sync is complete, the system is ready for use.
Add a new receiver to your system:

Shure SLX D Series Specifications

General

Encryption	256-bit AES
Latency	3.2 ms
RF Sensitivity	-97 dBm at 10-5 BER
System Type	Digital Wireless
Operating Range	Up to 100 m (300 ft) line of sight
Audio Frequency Response	20 Hz – 20 kHz
Number of Channels	Up to 32 per band
Audio Output Connectors	XLR, 1/4"
Networking	Ethernet
RF Output Power	10 mW (region dependent)
Power Requirements	2 AA batteries or SB903 rechargeable battery
Battery Life	Up to 10 hours (with standard AA batteries)
Dimensions	Varies by model
Weight	Varies by model
Frequency Range	470-952 MHz (region dependent)
Dynamic Range	120 dB, A-weighted
Signal-to-Noise Ratio	120 dB, A-weighted
