Shure SLX D Series User Manual

Shure Incorporated
22/43
1.
2.
3.
4.
5.
6.
7.
8.
1.
2.

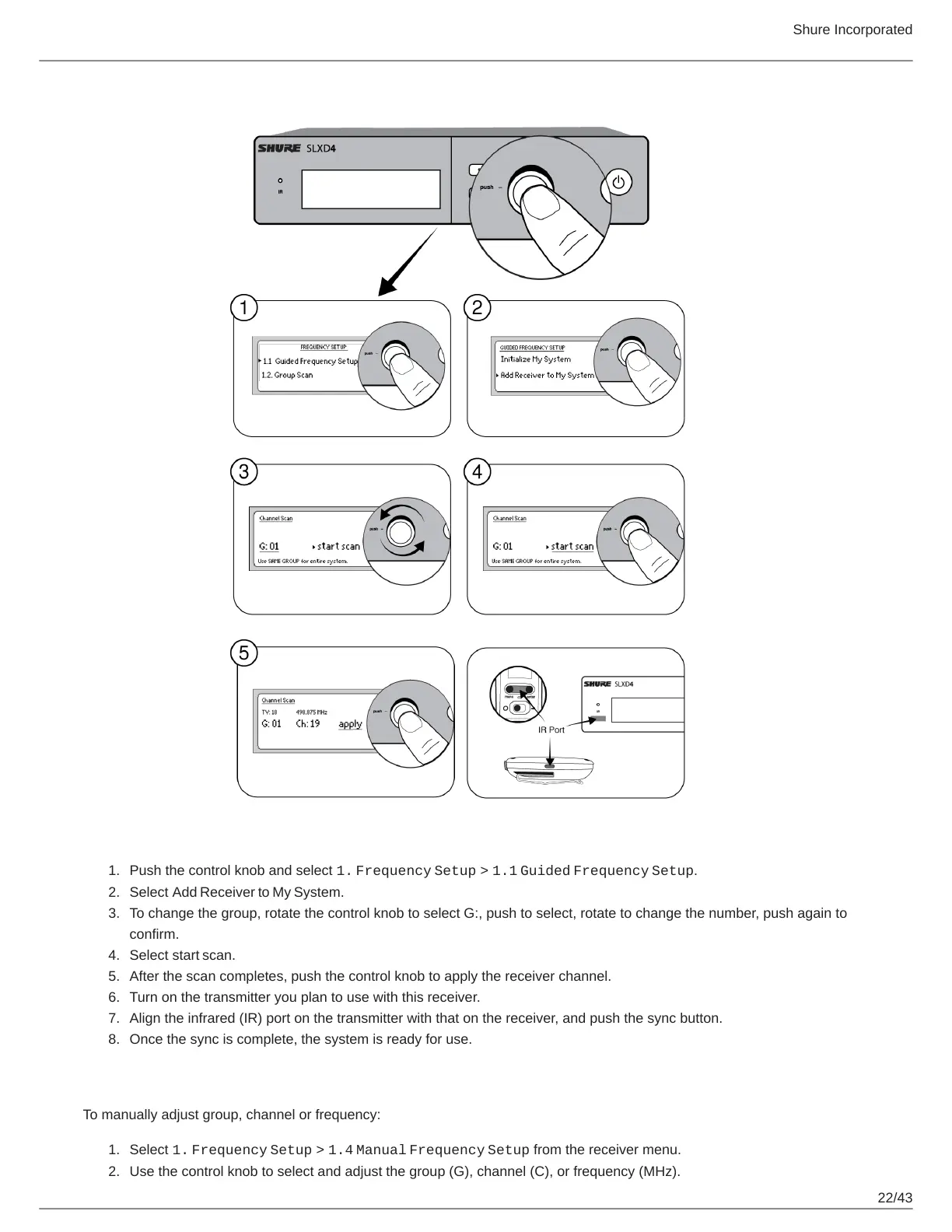

Push the control knob and select 1. Frequency Setup > 1.1 Guided Frequency Setup.
Select Add Receiver to My System.
To change the group, rotate the control knob to select G:, push to select, rotate to change the number, push again to
confirm.
Select start scan.
After the scan completes, push the control knob to apply the receiver channel.
Turn on the transmitter you plan to use with this receiver.
Align the infrared (IR) port on the transmitter with that on the receiver, and push the sync button.
Once the sync is complete, the system is ready for use.
Manual Frequency Selection
To manually adjust group, channel or frequency:
Select 1. Frequency Setup > 1.4 Manual Frequency Setup from the receiver menu.
Use the control knob to select and adjust the group (G), channel (C), or frequency (MHz).

Shure SLX D Series Specifications

General

Encryption	256-bit AES
Latency	3.2 ms
RF Sensitivity	-97 dBm at 10-5 BER
System Type	Digital Wireless
Operating Range	Up to 100 m (300 ft) line of sight
Audio Frequency Response	20 Hz – 20 kHz
Number of Channels	Up to 32 per band
Audio Output Connectors	XLR, 1/4"
Networking	Ethernet
RF Output Power	10 mW (region dependent)
Power Requirements	2 AA batteries or SB903 rechargeable battery
Battery Life	Up to 10 hours (with standard AA batteries)
Dimensions	Varies by model
Weight	Varies by model
Frequency Range	470-952 MHz (region dependent)
Dynamic Range	120 dB, A-weighted
Signal-to-Noise Ratio	120 dB, A-weighted
