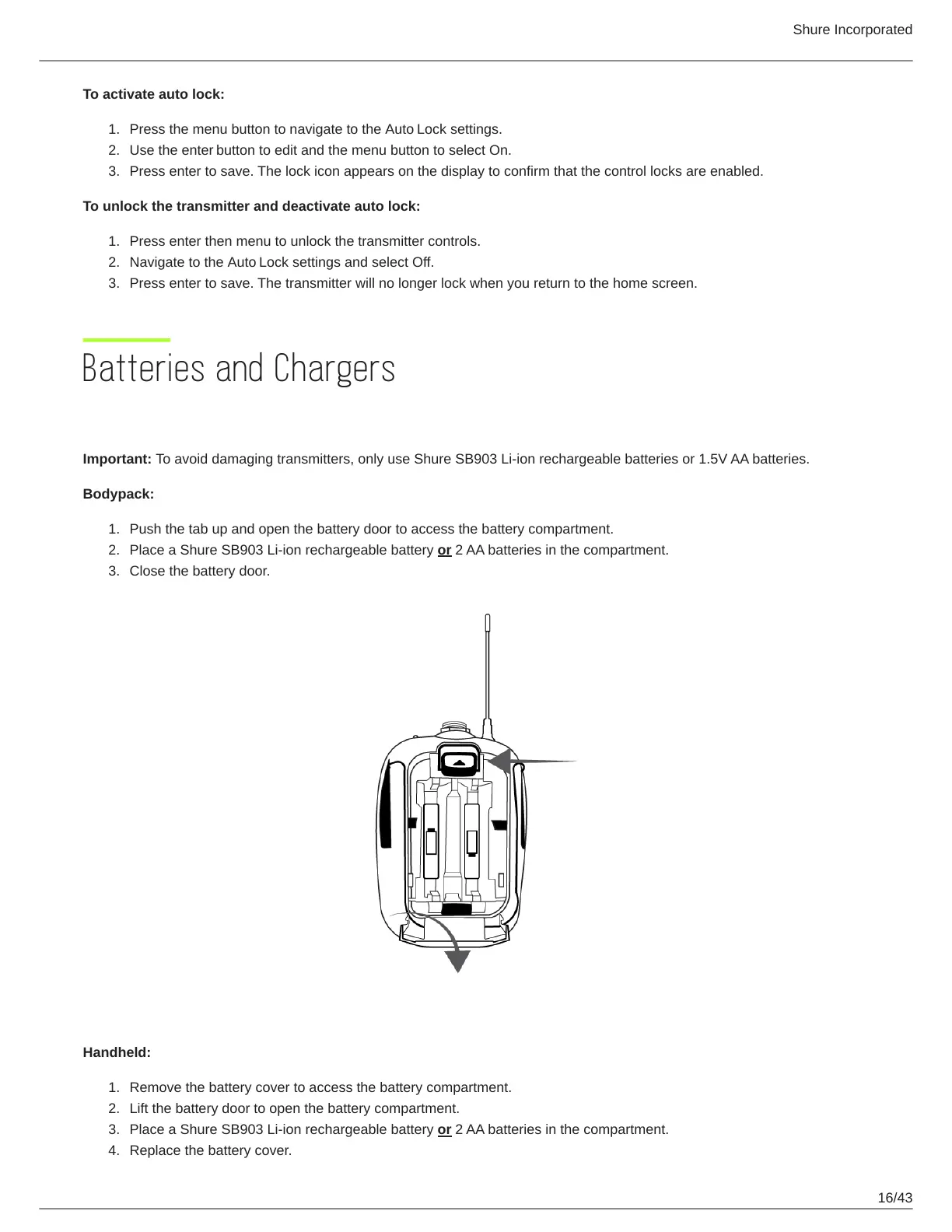

To activate auto lock:
Press the menu button to navigate to the Auto Lock settings.
Use the enter button to edit and the menu button to select On.
Press enter to save. The lock icon appears on the display to confirm that the control locks are enabled.
To unlock the transmitter and deactivate auto lock:
Press enter then menu to unlock the transmitter controls.
Navigate to the Auto Lock settings and select Off.
Press enter to save. The transmitter will no longer lock when you return to the home screen.
Batteries and Chargers
Install Transmitter Batteries
Important: To avoid damaging transmitters, only use Shure SB903 Li-ion rechargeable batteries or 1.5V AA batteries.
Bodypack:
Push the tab up and open the battery door to access the battery compartment.
Place a Shure SB903 Li-ion rechargeable battery or 2 AA batteries in the compartment.
Close the battery door.
Handheld:
Remove the battery cover to access the battery compartment.
Lift the battery door to open the battery compartment.
Place a Shure SB903 Li-ion rechargeable battery or 2 AA batteries in the compartment.
Replace the battery cover.

Shure SLX D Series Specifications

General

Encryption	256-bit AES
Latency	3.2 ms
RF Sensitivity	-97 dBm at 10-5 BER
System Type	Digital Wireless
Operating Range	Up to 100 m (300 ft) line of sight
Audio Frequency Response	20 Hz – 20 kHz
Number of Channels	Up to 32 per band
Audio Output Connectors	XLR, 1/4"
Networking	Ethernet
RF Output Power	10 mW (region dependent)
Power Requirements	2 AA batteries or SB903 rechargeable battery
Battery Life	Up to 10 hours (with standard AA batteries)
Dimensions	Varies by model
Weight	Varies by model
Frequency Range	470-952 MHz (region dependent)
Dynamic Range	120 dB, A-weighted
Signal-to-Noise Ratio	120 dB, A-weighted
