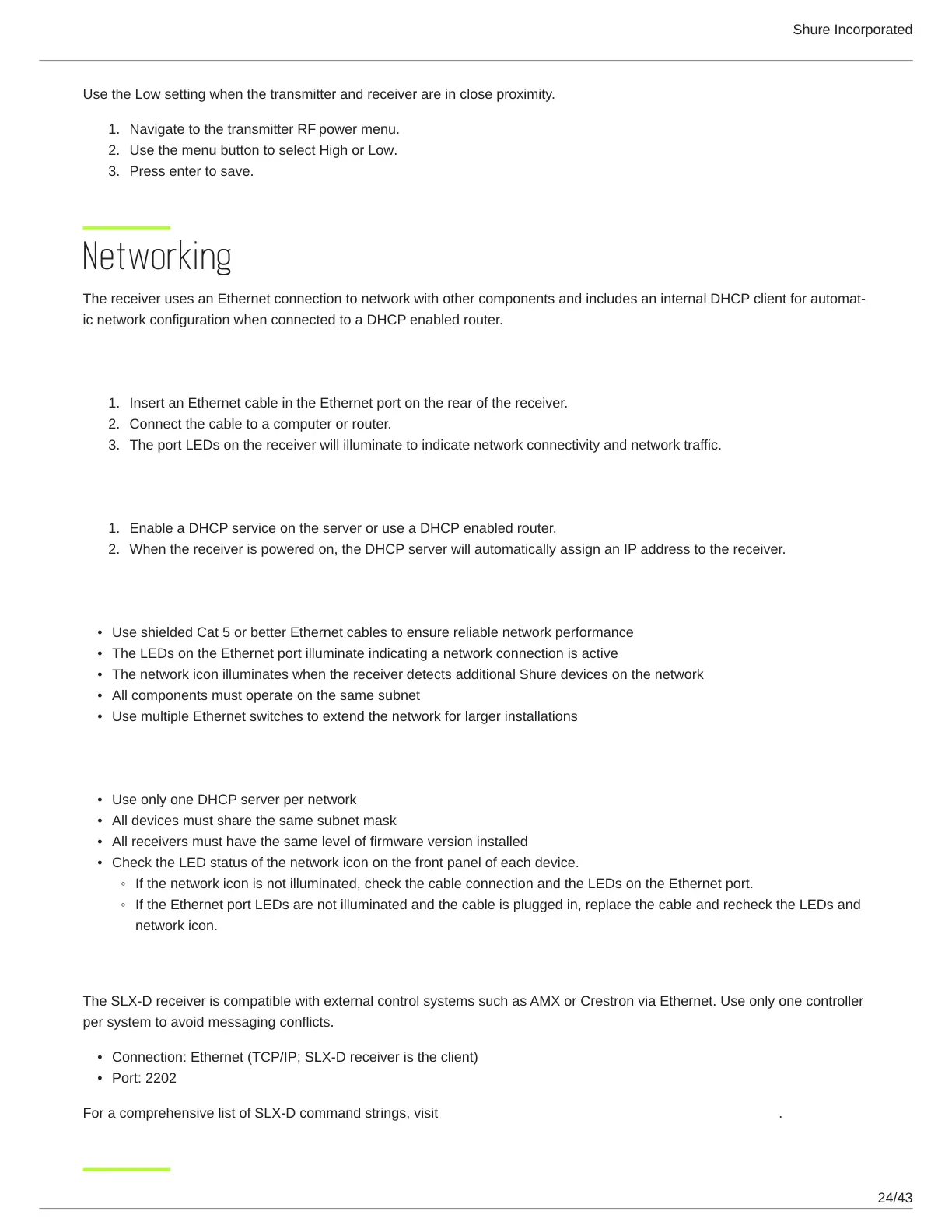

Use the Low setting when the transmitter and receiver are in close proximity.
Navigate to the transmitter RF power menu.
Use the menu button to select High or Low.
Press enter to save.
Networking
ThereceiverusesanEthernetconnectiontonetworkwithothercomponentsandincludesaninternalDHCPclientforautomat
ic network configuration when connected to a DHCP enabled router.
Connecting to a Network
Insert an Ethernet cable in the Ethernet port on the rear of the receiver.
Connect the cable to a computer or router.
The port LEDs on the receiver will illuminate to indicate network connectivity and network traffic.
Automatic IP Addressing
Enable a DHCP service on the server or use a DHCP enabled router.
When the receiver is powered on, the DHCP server will automatically assign an IP address to the receiver.
Configuration Tips
Use shielded Cat 5 or better Ethernet cables to ensure reliable network performance
The LEDs on the Ethernet port illuminate indicating a network connection is active
The network icon illuminates when the receiver detects additional Shure devices on the network
All components must operate on the same subnet
Use multiple Ethernet switches to extend the network for larger installations
Network Troubleshooting
Use only one DHCP server per network
All devices must share the same subnet mask
All receivers must have the same level of firmware version installed
Check the LED status of the network icon on the front panel of each device.
If the network icon is not illuminated, check the cable connection and the LEDs on the Ethernet port.
If the Ethernet port LEDs are not illuminated and the cable is plugged in, replace the cable and recheck the LEDs and
network icon.
Connecting to an External Control System
The SLX-D receiver is compatible with external control systems such as AMX or Crestron via Ethernet. Use only one controller
per system to avoid messaging conflicts.
Connection: Ethernet (TCP/IP; SLX-D receiver is the client)
Port: 2202
For a comprehensive list of SLX-D command strings, visit https://pubs.shure.com/command-strings/SLXD/en-US.

Shure SLX D Series Specifications

General

Encryption	256-bit AES
Latency	3.2 ms
RF Sensitivity	-97 dBm at 10-5 BER
System Type	Digital Wireless
Operating Range	Up to 100 m (300 ft) line of sight
Audio Frequency Response	20 Hz – 20 kHz
Number of Channels	Up to 32 per band
Audio Output Connectors	XLR, 1/4"
Networking	Ethernet
RF Output Power	10 mW (region dependent)
Power Requirements	2 AA batteries or SB903 rechargeable battery
Battery Life	Up to 10 hours (with standard AA batteries)
Dimensions	Varies by model
Weight	Varies by model
Frequency Range	470-952 MHz (region dependent)
Dynamic Range	120 dB, A-weighted
Signal-to-Noise Ratio	120 dB, A-weighted
