Shure SLX-D User Manual

Shure Incorporated
12/56

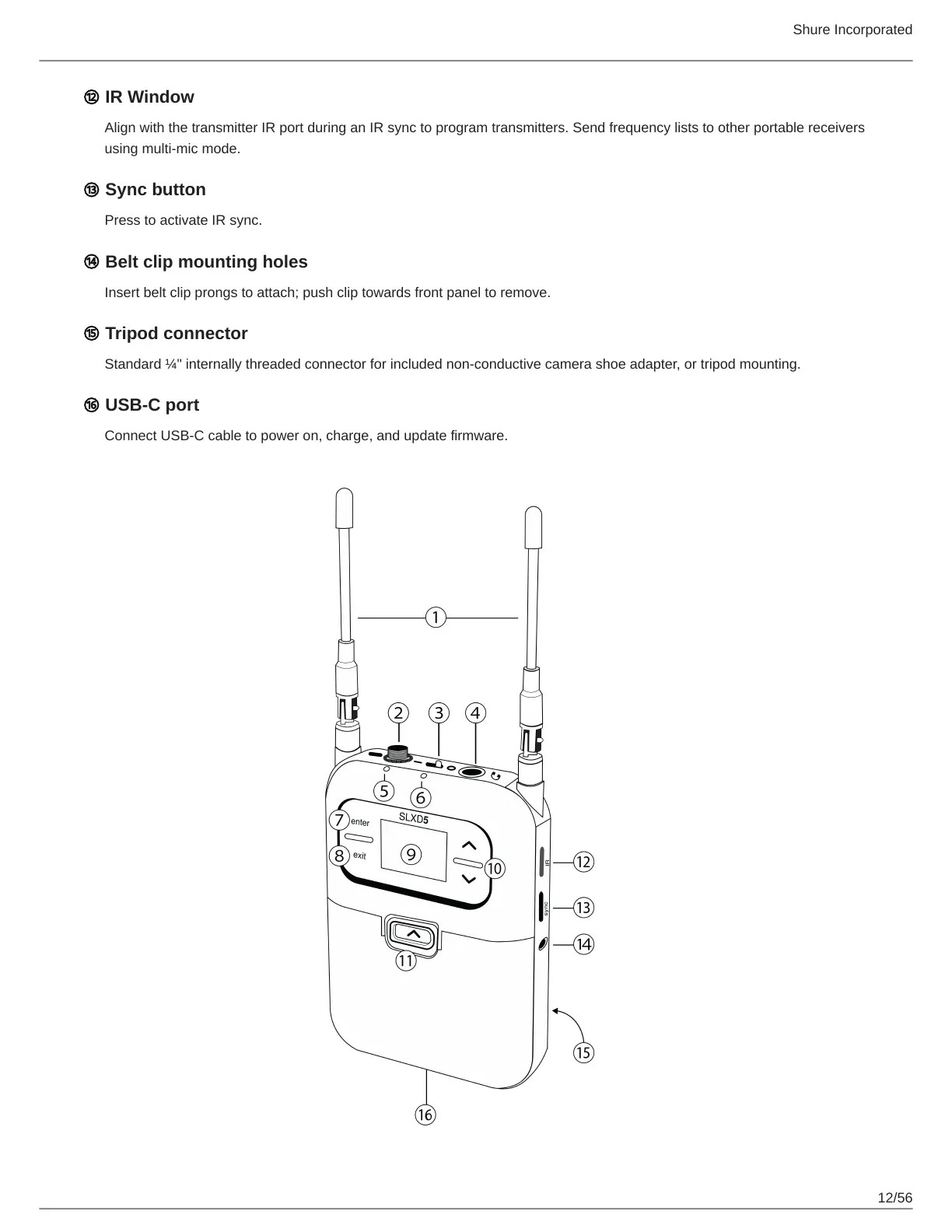

⑫ IR Window
Align with the transmitter IR port during an IR sync to program transmitters. Send frequency lists to other portable receivers
using multi-mic mode.
⑬ Sync button
Press to activate IR sync.
⑭ Belt clip mounting holes
Insert belt clip prongs to attach; push clip towards front panel to remove.
⑮ Tripod connector
Standard ¼" internally threaded connector for included non-conductive camera shoe adapter, or tripod mounting.
⑯ USB-C port
Connect USB-C cable to power on, charge, and update firmware.

Shure SLX-D Specifications

General

Audio Frequency Response	20 Hz to 20 kHz
Encryption	256-bit AES
Battery Life	Up to 8 hours
System Type	Digital Wireless
Transmitter Type	Handheld, Bodypack
Total Harmonic Distortion	<0.02%
Latency	3.2 ms
Operating Range	Up to 100 meters (328 feet)
Dynamic Range	> 120 dB
Number of Channels	Up to 32 per band
Modulation	Digital
RF Sensitivity	-97 dBm for 12 dB SINAD
