8/56
3.
4.
1.
2.

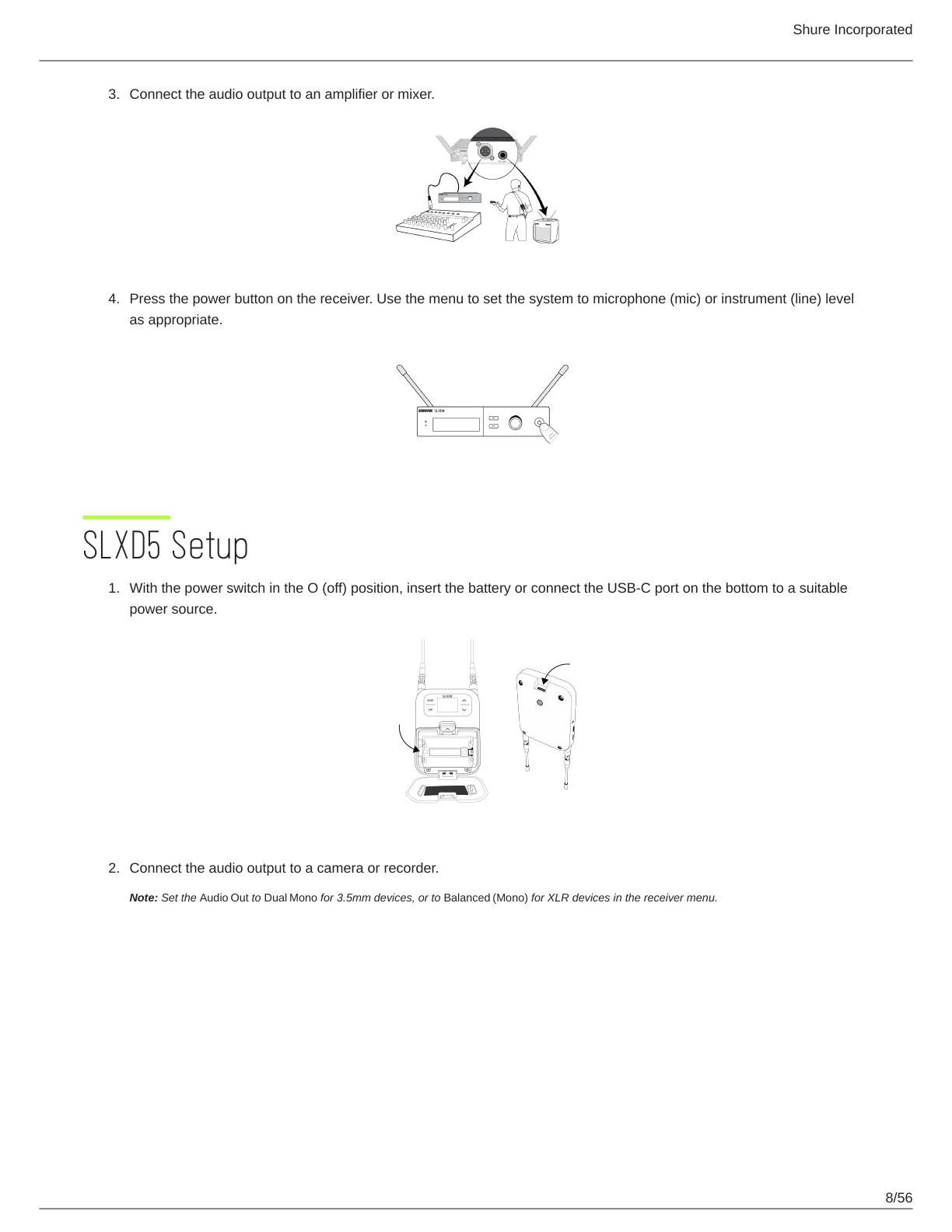

Connect the audio output to an amplifier or mixer.
Press the power button on the receiver. Use the menu to set the system to microphone (mic) or instrument (line) level
as appropriate.
SLXD5 Setup
With the power switch in the O (off) position, insert the battery or connect the USB-C port on the bottom to a suitable
power source.
Connect the audio output to a camera or recorder.
Note: Set the Audio Out to Dual Mono for 3.5mm devices, or to Balanced (Mono) for XLR devices in the receiver menu.

Shure SLX-D Specifications

General

Audio Frequency Response	20 Hz to 20 kHz
Encryption	256-bit AES
Battery Life	Up to 8 hours
System Type	Digital Wireless
Transmitter Type	Handheld, Bodypack
Total Harmonic Distortion	<0.02%
Latency	3.2 ms
Operating Range	Up to 100 meters (328 feet)
Dynamic Range	> 120 dB
Number of Channels	Up to 32 per band
Modulation	Digital
RF Sensitivity	-97 dBm for 12 dB SINAD
