Shure SLX-D User Manual

Shure Incorporated
4/56
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

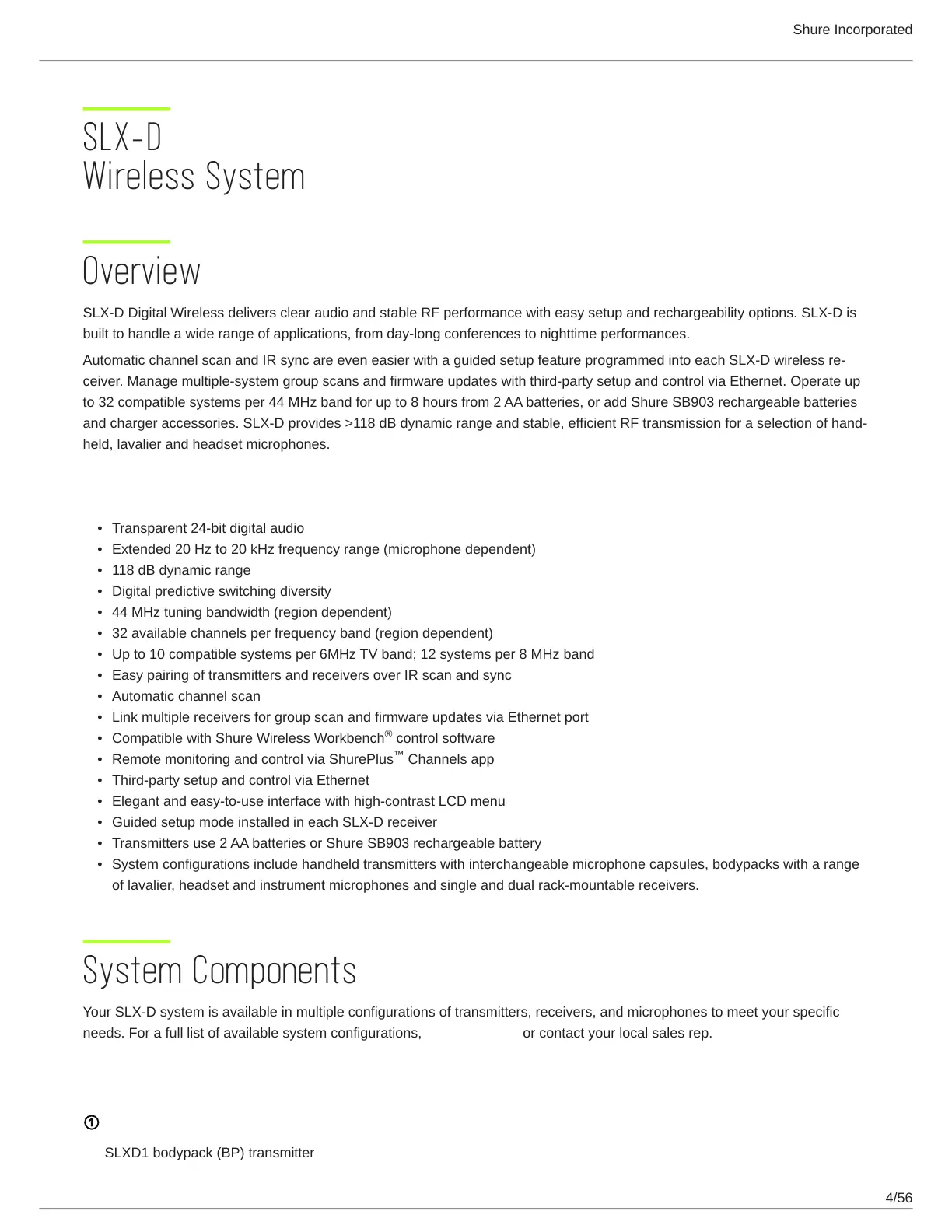

SLX-D
Wireless System
Overview
SLX-D Digital Wireless delivers clear audio and stable RF performance with easy setup and rechargeability options. SLX-D is
built to handle a wide range of applications, from day-long conferences to nighttime performances.
Automatic channel scan and IR sync are even easier with a guided setup feature programmed into each SLXD wireless re
ceiver. Manage multiple-system group scans and firmware updates with third-party setup and control via Ethernet. Operate up
to 32 compatible systems per 44 MHz band for up to 8 hours from 2 AA batteries, or add Shure SB903 rechargeable batteries
and charger accessories. SLXD provides >118 dB dynamic range and stable, efficient RF transmission for a selection of hand
held, lavalier and headset microphones.
Features
Transparent 24-bit digital audio
Extended 20 Hz to 20 kHz frequency range (microphone dependent)
118 dB dynamic range
Digital predictive switching diversity
44 MHz tuning bandwidth (region dependent)
32 available channels per frequency band (region dependent)
Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
Easy pairing of transmitters and receivers over IR scan and sync
Automatic channel scan
Link multiple receivers for group scan and firmware updates via Ethernet port
Compatible with Shure Wireless Workbench control software
Remote monitoring and control via ShurePlus Channels app
Third-party setup and control via Ethernet
Elegant and easy-to-use interface with high-contrast LCD menu
Guided setup mode installed in each SLX-D receiver
Transmitters use 2 AA batteries or Shure SB903 rechargeable battery
System configurations include handheld transmitters with interchangeable microphone capsules, bodypacks with a range
of lavalier, headset and instrument microphones and single and dual rack-mountable receivers.
System Components
Your SLX-D system is available in multiple configurations of transmitters, receivers, and microphones to meet your specific
needs. For a full list of available system configurations, visit shure.com or contact your local sales rep.
SLX-D Transmitters
①
SLXD1 bodypack (BP) transmitter
®
™

Shure SLX-D Specifications

General

Audio Frequency Response	20 Hz to 20 kHz
Encryption	256-bit AES
Battery Life	Up to 8 hours
System Type	Digital Wireless
Transmitter Type	Handheld, Bodypack
Total Harmonic Distortion	<0.02%
Latency	3.2 ms
Operating Range	Up to 100 meters (328 feet)
Dynamic Range	> 120 dB
Number of Channels	Up to 32 per band
Modulation	Digital
RF Sensitivity	-97 dBm for 12 dB SINAD
