Shure SLX-D User Manual

Shure Incorporated
9/56

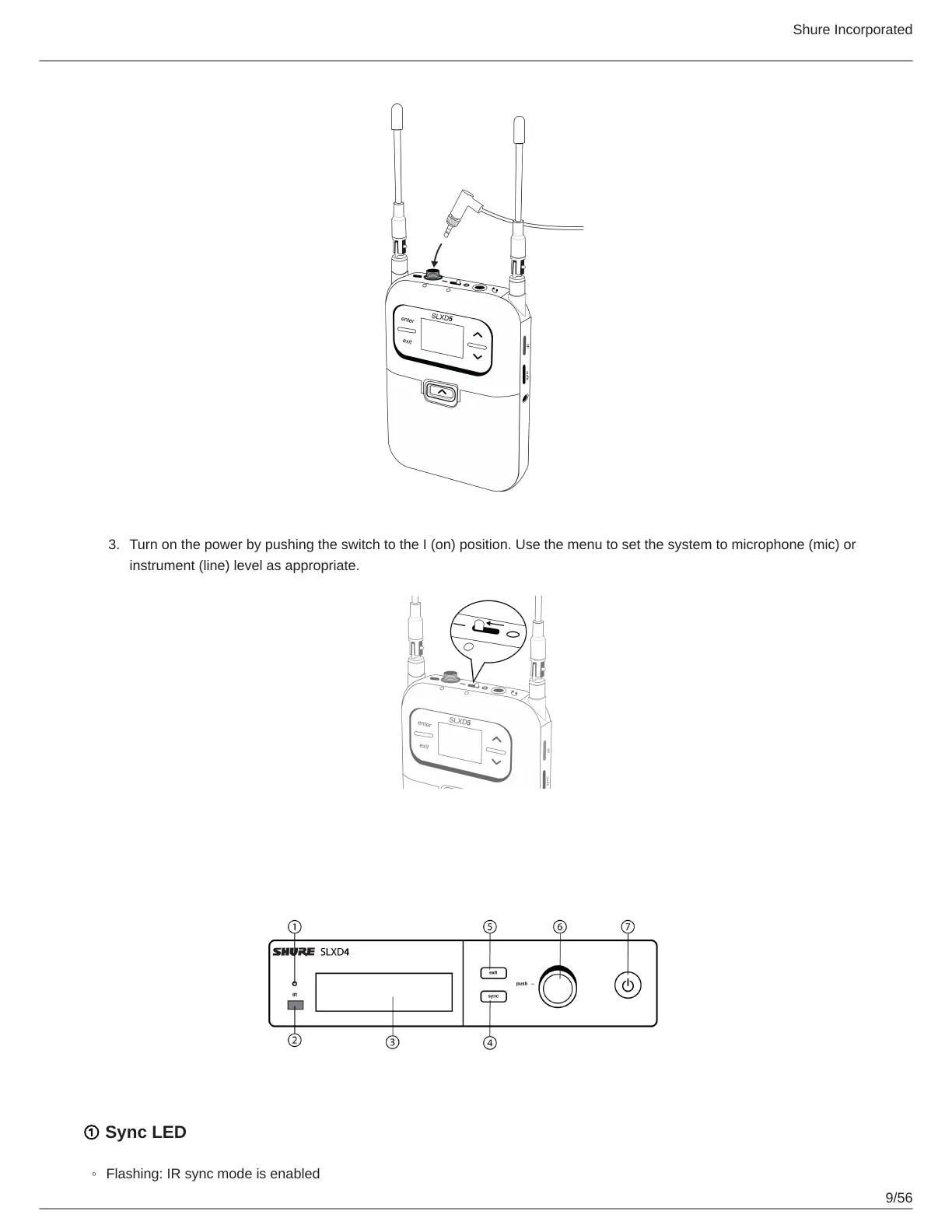

3.
◦
Turn on the power by pushing the switch to the I (on) position. Use the menu to set the system to microphone (mic) or
instrument (line) level as appropriate.
SLXD4 Hardware Callouts
① Sync LED
Flashing: IR sync mode is enabled

Shure SLX-D Specifications

General

Audio Frequency Response	20 Hz to 20 kHz
Encryption	256-bit AES
Battery Life	Up to 8 hours
System Type	Digital Wireless
Transmitter Type	Handheld, Bodypack
Total Harmonic Distortion	<0.02%
Latency	3.2 ms
Operating Range	Up to 100 meters (328 feet)
Dynamic Range	> 120 dB
Number of Channels	Up to 32 per band
Modulation	Digital
RF Sensitivity	-97 dBm for 12 dB SINAD
