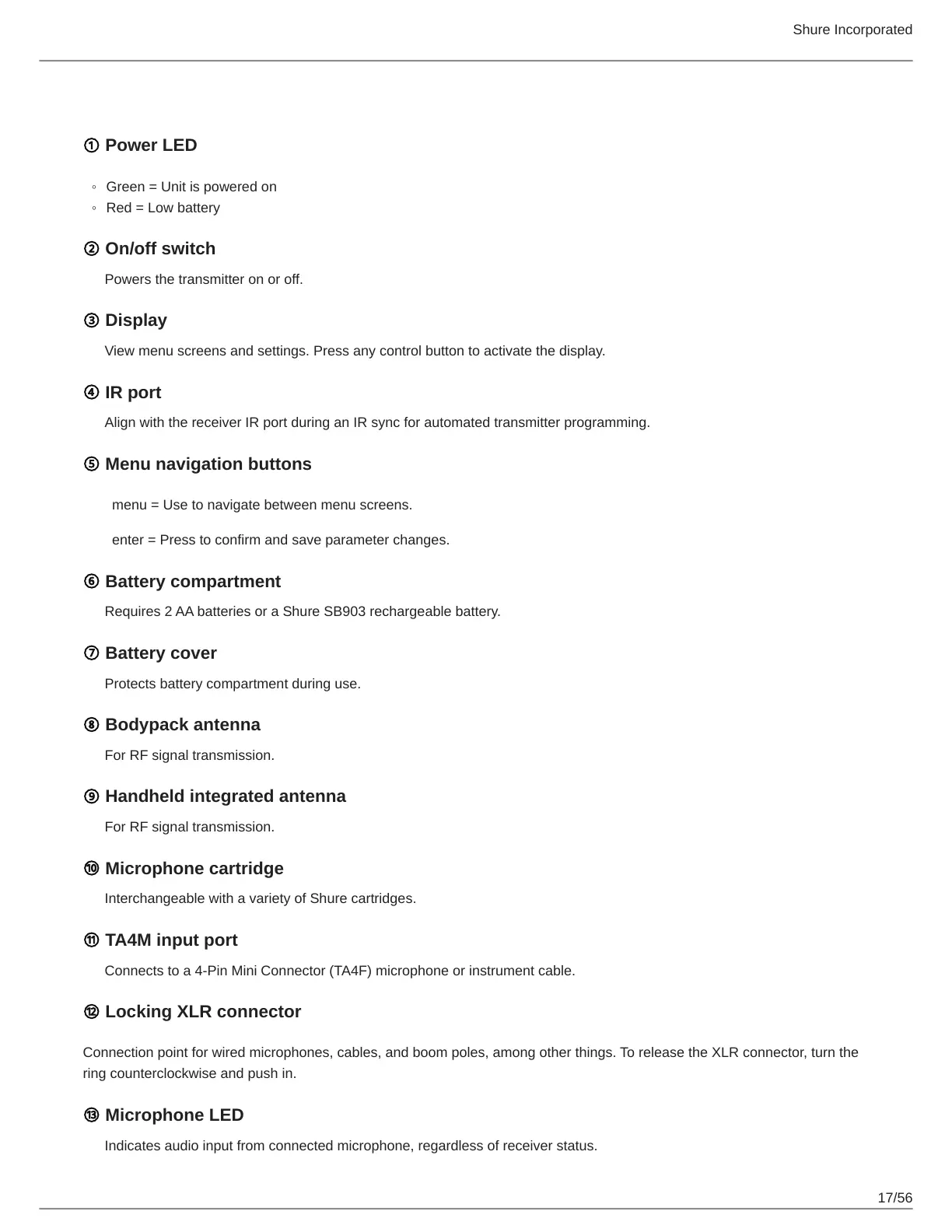

Shure Incorporated
17/56
◦
◦
Transmitters
① Power LED
Green = Unit is powered on
Red = Low battery
② On/off switch
Powers the transmitter on or off.
③ Display
View menu screens and settings. Press any control button to activate the display.
④ IR port
Align with the receiver IR port during an IR sync for automated transmitter programming.
⑤ Menu navigation buttons
menu = Use to navigate between menu screens.
enter = Press to confirm and save parameter changes.
⑥ Battery compartment
Requires 2 AA batteries or a Shure SB903 rechargeable battery.
⑦ Battery cover
Protects battery compartment during use.
⑧ Bodypack antenna
For RF signal transmission.
⑨ Handheld integrated antenna
For RF signal transmission.
⑩ Microphone cartridge
Interchangeable with a variety of Shure cartridges.
⑪ TA4M input port
Connects to a 4-Pin Mini Connector (TA4F) microphone or instrument cable.
⑫ Locking XLR connector
Connection point for wired microphones, cables, and boom poles, among other things. To release the XLR connector, turn the
ring counterclockwise and push in.
⑬ Microphone LED
Indicates audio input from connected microphone, regardless of receiver status.
