12
25A1090 (Rev.3)

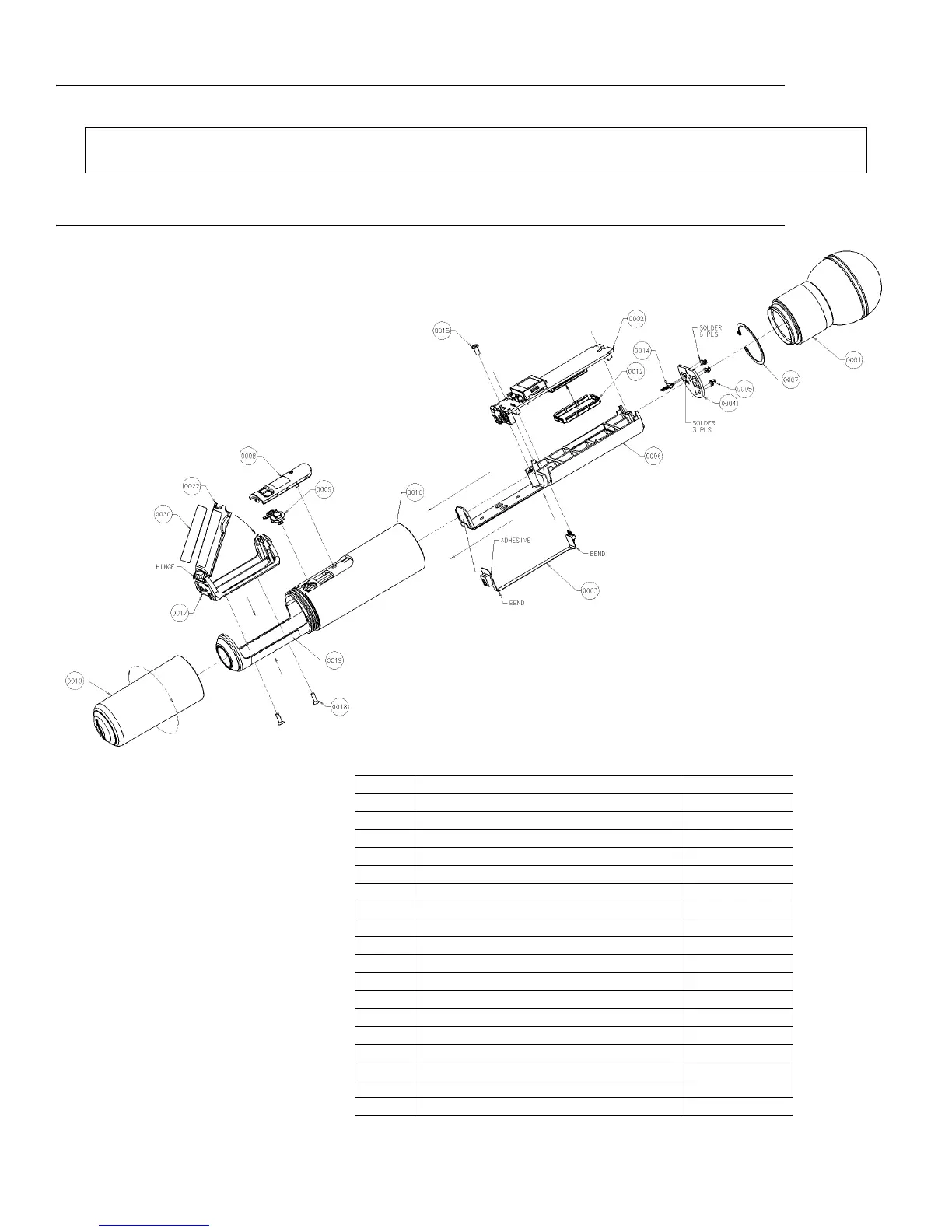

ASSEMBLY AND DISASSEMBLY
EXPLODED VIEW
!CAUTION!
Observe precautions when handling this static-sensitive device.
I.D. # Description Part Number
0001 Cartridge
0002 Tuned PCB assembly 200--082
0003 PCB assembly, IR 190A098-01
0004 PCB, head board 190-057-03-34
0005 Contact 53F2039A
0006 Frame, internal 65B8467
0007 Retaining ring 30A1314
0008 bezel, painted/printed 65A8475B
0009 Pushbutton actuator, silicone 66A8070
0010 Battery cup, painted 65BA8451
0012 Shield cover, steel, plated 53A8590A
0014 3 pin interconnect 170A74
0015 PCB Screw, hi-lo #4 30J1245
0016 Handle assembly 95A9047B
0017 Battery holder assembly 95B9048
0018 Battery holder, Machine screw, #2–56 30D443E
0019 Nameplate, frequency 39--8466
0022 Battery cover assembly 95A9068
