Lock Indicators
524.025MHZ
Power Lock
Frequency Lock

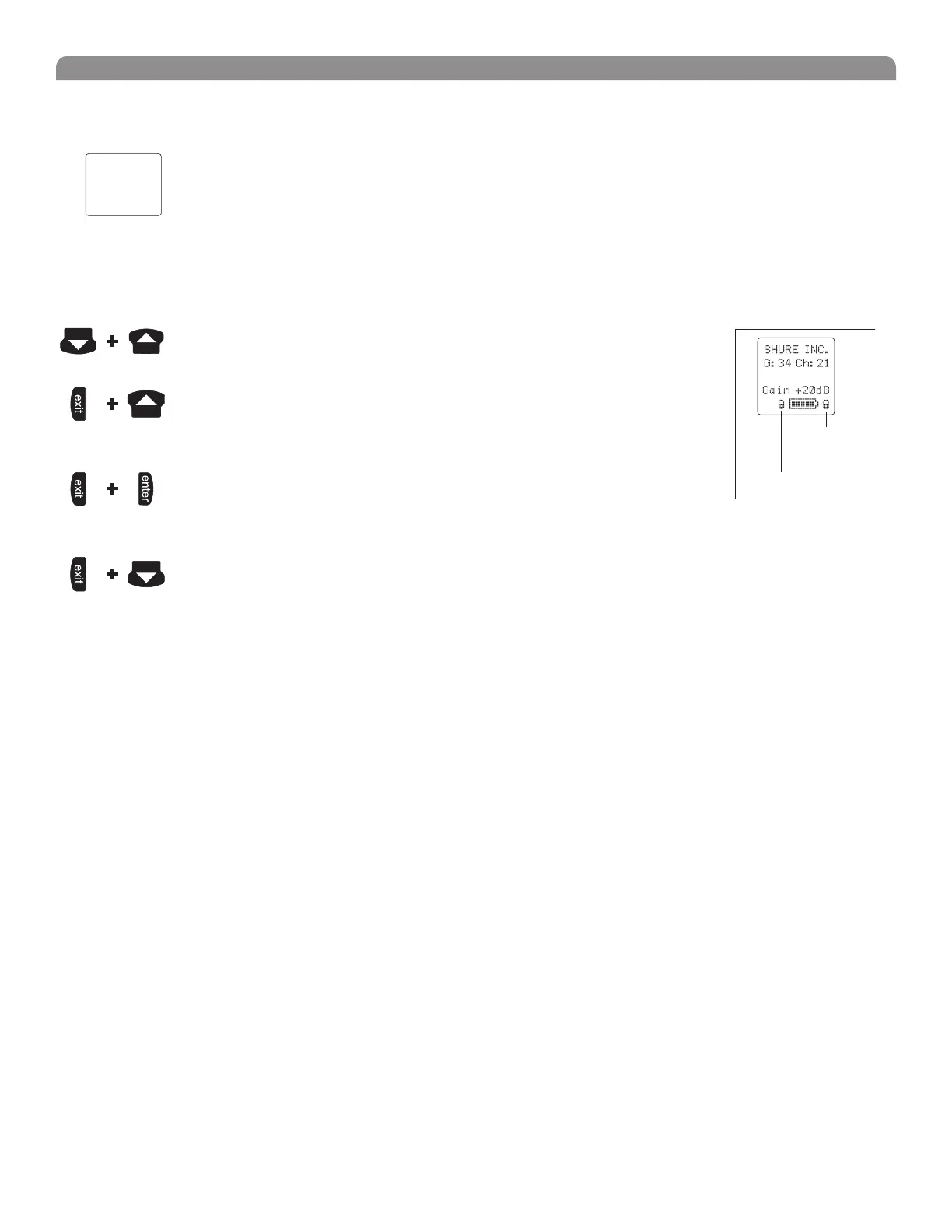

Use the following key combinations to access additional features and parameters:
taphold
taphold
hol
ap
LCD Panel
Changes LCD Panel
Frequency Lock
Toggles setting. When enabled, frequency cannot be changed, and a transmitter sync will not overwrite
the frequency setting.
Power Lock
Toggles power lock. When locked, power switch does not turn off transmitter.
RF power level setting*
Use the arrow keys to select normal (10 mW) or high power (50/100 mW**). Use the normal power setting to conserve batteries or
prevent RF overload at the receiver.
* High power setting not available with models sold in countries that prohibit its use.
** High power value varies with model.
Setting Transmitter Gain
Adjust the transmitter gain and input sensitivity so that the Audio LEDs on the receiver peak within the yellow range during use. On the bodypack transmitter, you can change
the sensitivity setting to compensate for different audio levels when connecting different instruments or microphones to the input.
To adjust gain, turn on the transmitter and press the enter button. Scroll down to the Gain parameter or the Sens parameter (bodypack only) and press enter again. Use
the arrow keys to adjust the setting and press enter to save it (Exit cancels without saving).
RF Safety Mode
This special feature temporarily mutes RF broadcast. This allows you to change frequency settings on a transmitter without accidentally “cutting in” on a channel being used
by another transmitter.
1. Turn the transmitter off.
2. Hold down exit key while turning on the transmitter power (for handheld microphones, you need to pull the battery cover off the handle). The LCD flashes while
the unit is in RF safety mode.
3. Change group and channel settings as you normally would—the transmitter will not broadcast.
4. Power the transmitter off and on to exit RF safety mode.
Transmitter Parameters
Press ENTER from the main menu to access the following parameters:
SHURE INC.
G:34 Ch:21
524.025MHZ
Gain +20dB
Group (G) and Channel (Ch). Must match the receiver’s settings.
Frequency (MHz). Manual frequency selection in 0.025 MHz increments.
Gain (Gain). Adjusts audio level from –10 dB to +20 dB
Sensitivity (Sens) (bodypack only).
Sets audio input to +15 dB, 0 dB, or –10 dB recommended for guitars.
Name Display. 12-digit ASCII.
