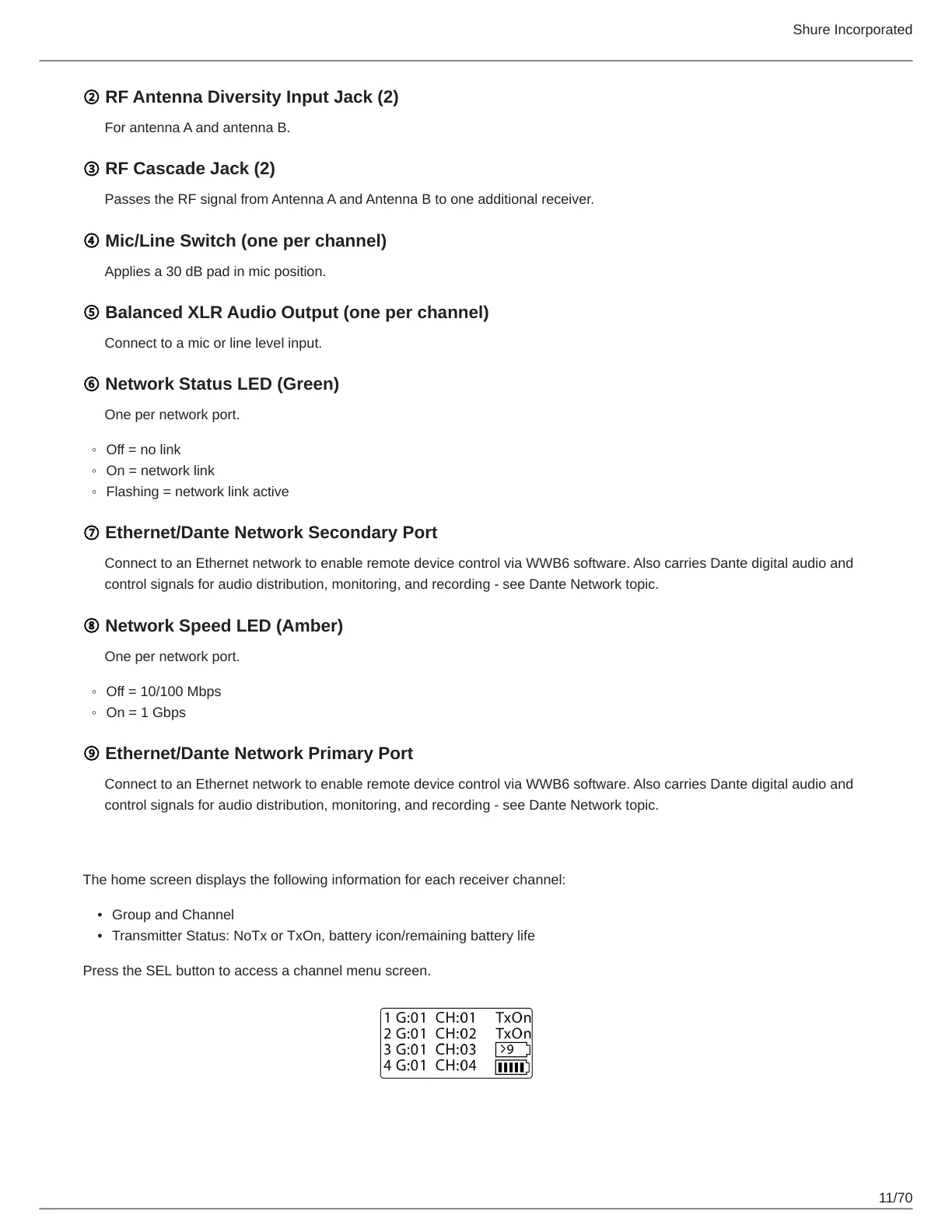

② RF Antenna Diversity Input Jack (2)
For antenna A and antenna B.
③ RF Cascade Jack (2)
Passes the RF signal from Antenna A and Antenna B to one additional receiver.
④ Mic/Line Switch (one per channel)
Applies a 30 dB pad in mic position.
⑤ Balanced XLR Audio Output (one per channel)
Connect to a mic or line level input.
⑥ Network Status LED (Green)
One per network port.
Off = no link
On = network link
Flashing = network link active
⑦ Ethernet/Dante Network Secondary Port
Connect to an Ethernet network to enable remote device control via WWB6 software. Also carries Dante digital audio and
control signals for audio distribution, monitoring, and recording - see Dante Network topic.
⑧ Network Speed LED (Amber)
One per network port.
Off = 10/100 Mbps
On = 1 Gbps
⑨ Ethernet/Dante Network Primary Port
Connect to an Ethernet network to enable remote device control via WWB6 software. Also carries Dante digital audio and
control signals for audio distribution, monitoring, and recording - see Dante Network topic.
Receiver Home Screen
The home screen displays the following information for each receiver channel:
Group and Channel
Transmitter Status: NoTx or TxOn, battery icon/remaining battery life
Press the SEL button to access a channel menu screen.
