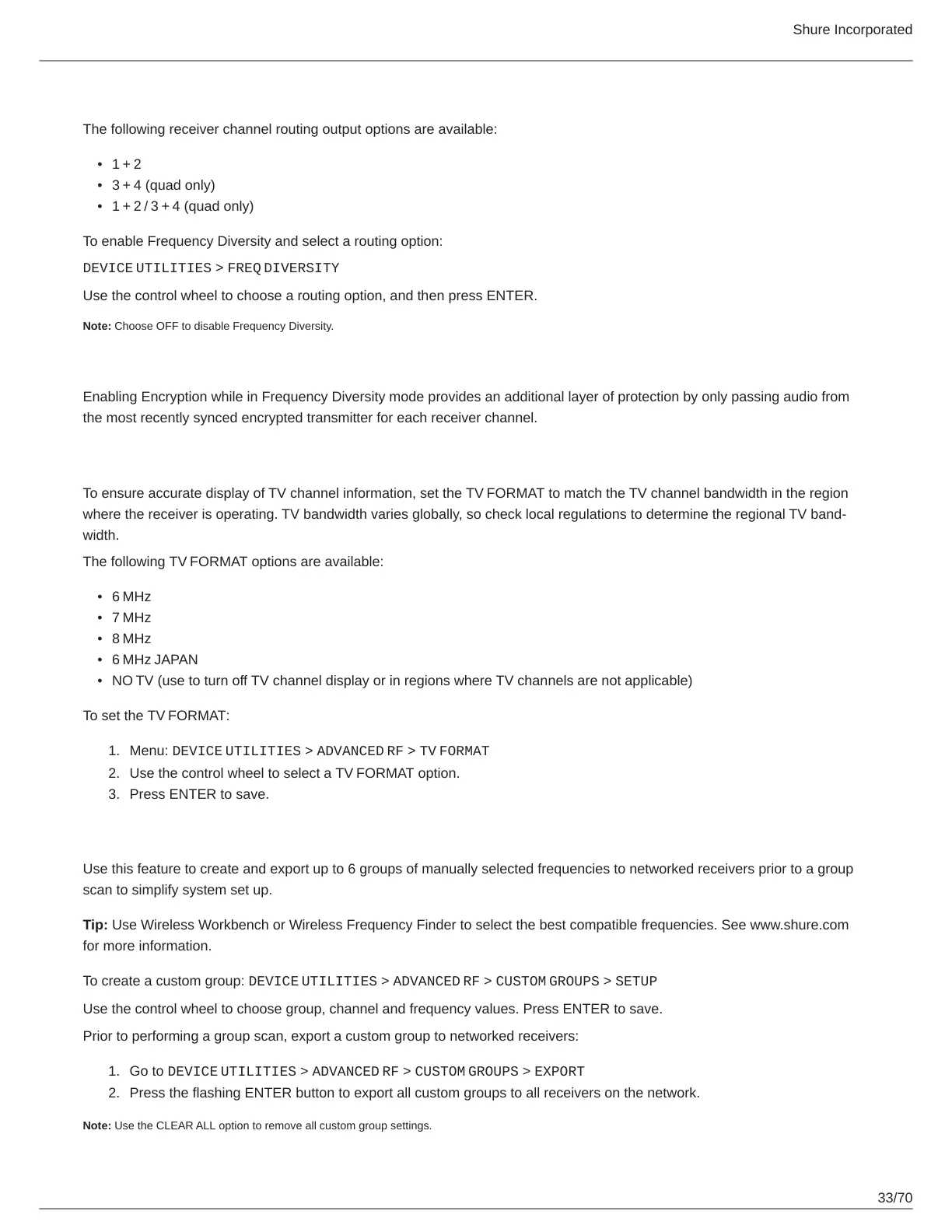

Choosing Diversity Output Routing
The following receiver channel routing output options are available:
1 + 2
3 + 4 (quad only)
1 + 2 / 3 + 4 (quad only)
To enable Frequency Diversity and select a routing option:
DEVICE UTILITIES > FREQ DIVERSITY
Use the control wheel to choose a routing option, and then press ENTER.
Note: Choose OFF to disable Frequency Diversity.
Frequency Diversity and Encryption
Enabling Encryption while in Frequency Diversity mode provides an additional layer of protection by only passing audio from
the most recently synced encrypted transmitter for each receiver channel.
Setting Regional TV Format
To ensure accurate display of TV channel information, set the TV FORMAT to match the TV channel bandwidth in the region
where the receiver is operating. TV bandwidth varies globally, so check local regulations to determine the regional TV band
width.
The following TV FORMAT options are available:
6 MHz
7 MHz
8 MHz
6 MHz JAPAN
NO TV (use to turn off TV channel display or in regions where TV channels are not applicable)
To set the TV FORMAT:
Menu: DEVICE UTILITIES > ADVANCED RF > TV FORMAT
Use the control wheel to select a TV FORMAT option.
Press ENTER to save.
Custom Groups
Use this feature to create and export up to 6 groups of manually selected frequencies to networked receivers prior to a group
scan to simplify system set up.
Tip: Use Wireless Workbench or Wireless Frequency Finder to select the best compatible frequencies. See www.shure.com
for more information.
To create a custom group: DEVICE UTILITIES > ADVANCED RF > CUSTOM GROUPS > SETUP
Use the control wheel to choose group, channel and frequency values. Press ENTER to save.
Prior to performing a group scan, export a custom group to networked receivers:
Go to DEVICE UTILITIES > ADVANCED RF > CUSTOM GROUPS > EXPORT
Press the flashing ENTER button to export all custom groups to all receivers on the network.
Note: Use the CLEAR ALL option to remove all custom group settings.
