Coaxial Cable, BNC-BNC, RG8X/U type, 50 Ohm, 50 ft length (15 m) UA850
Coaxial Cable, BNC-BNC, RG213/U Type, 50 Ohm, 100 ft length (30 m) UA8100
Black Bodypack Pouch WA582B

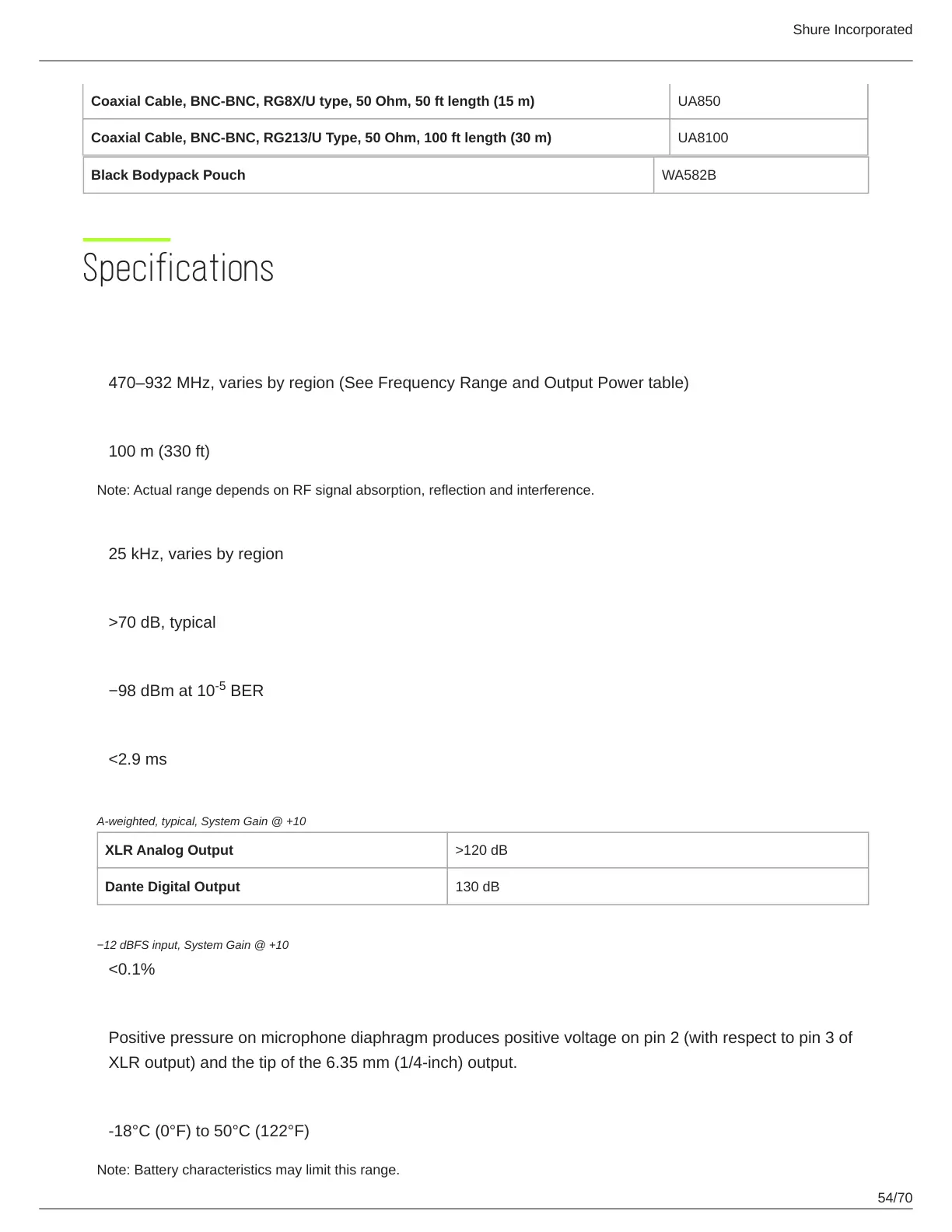

Specifications
ULX-D System Specifications
RF Carrier Frequency Range
470–932 MHz, varies by region (See Frequency Range and Output Power table)
Working Range
100 m (330 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size
25 kHz, varies by region
Image Rejection
>70 dB, typical
RF Sensitivity
−98 dBm at 10 BER
-5
Latency
<2.9 ms
Audio Dynamic Range
A-weighted, typical, System Gain @ +10
XLR Analog Output >120 dB
Dante Digital Output 130 dB
Total Harmonic Distortion
−12 dBFS input, System Gain @ +10
<0.1%
System Audio Polarity
Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of
XLR output) and the tip of the 6.35 mm (1/4-inch) output.
Operating Temperature Range
-18°C (0°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.
