LEMO Connector
XLR to ¼ Output

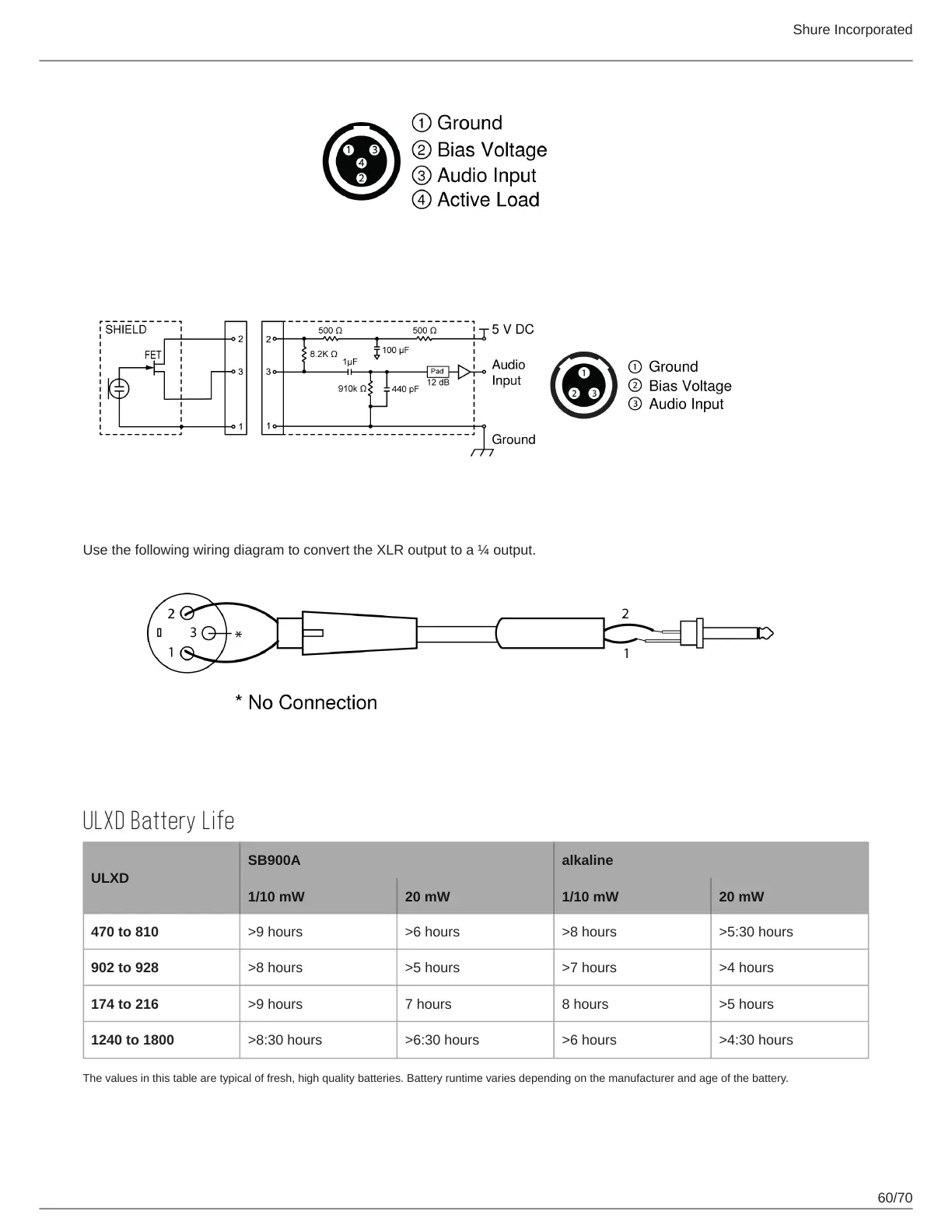

Use the following wiring diagram to convert the XLR output to a ¼ output.
Batteries
ULXD Battery Life
ULXD
SB900A alkaline
1/10 mW 20 mW 1/10 mW 20 mW
470 to 810 >9 hours >6 hours >8 hours >5:30 hours
902 to 928 >8 hours >5 hours >7 hours >4 hours
174 to 216 >9 hours 7 hours 8 hours >5 hours
1240 to 1800 >8:30 hours >6:30 hours >6 hours >4:30 hours
The values in this table are typical of fresh, high quality batteries. Battery runtime varies depending on the manufacturer and age of the battery.
