SICK C4000 Fusion Ex User Manual

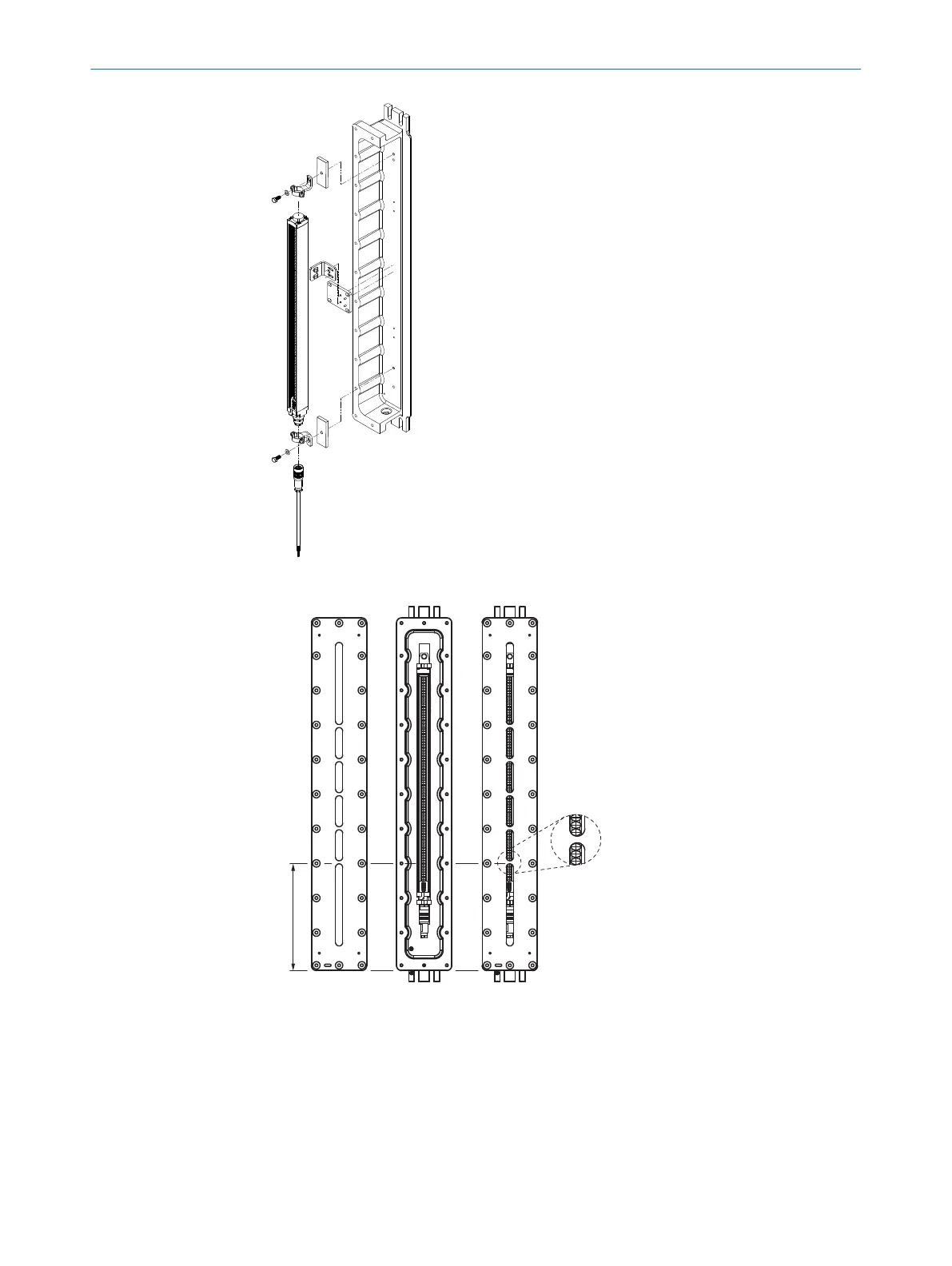

Figure 1: Mount the safety light curtain in the explosion-proof enclosure
1
2
Figure 2: Align the safety light curtain in the explosion-proof enclosure
1
Measure the distance from the end of the cover to the first rib.
2
Detailed view
MOUNTING 3
8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex
11
Subject to change without notice

SICK C4000 Fusion Ex Specifications

General

Supply voltage	24 V DC
Enclosure rating	IP65, IP67
Operating Voltage	24 V DC
Protection Rating	IP65, IP67
Resolution	30 mm
Protective field height	300 mm ... 1, 800 mm (depending on the variant)
Synchronization	Optical, cable
Ambient operating temperature	-30 °C ... +55 °C (depending on the variant)
Operating Temperature	-30 °C ... +55 °C (depending on the variant)
Outputs	2 safety outputs (OSSDs), 1 diagnostic output
