Alignment bracket

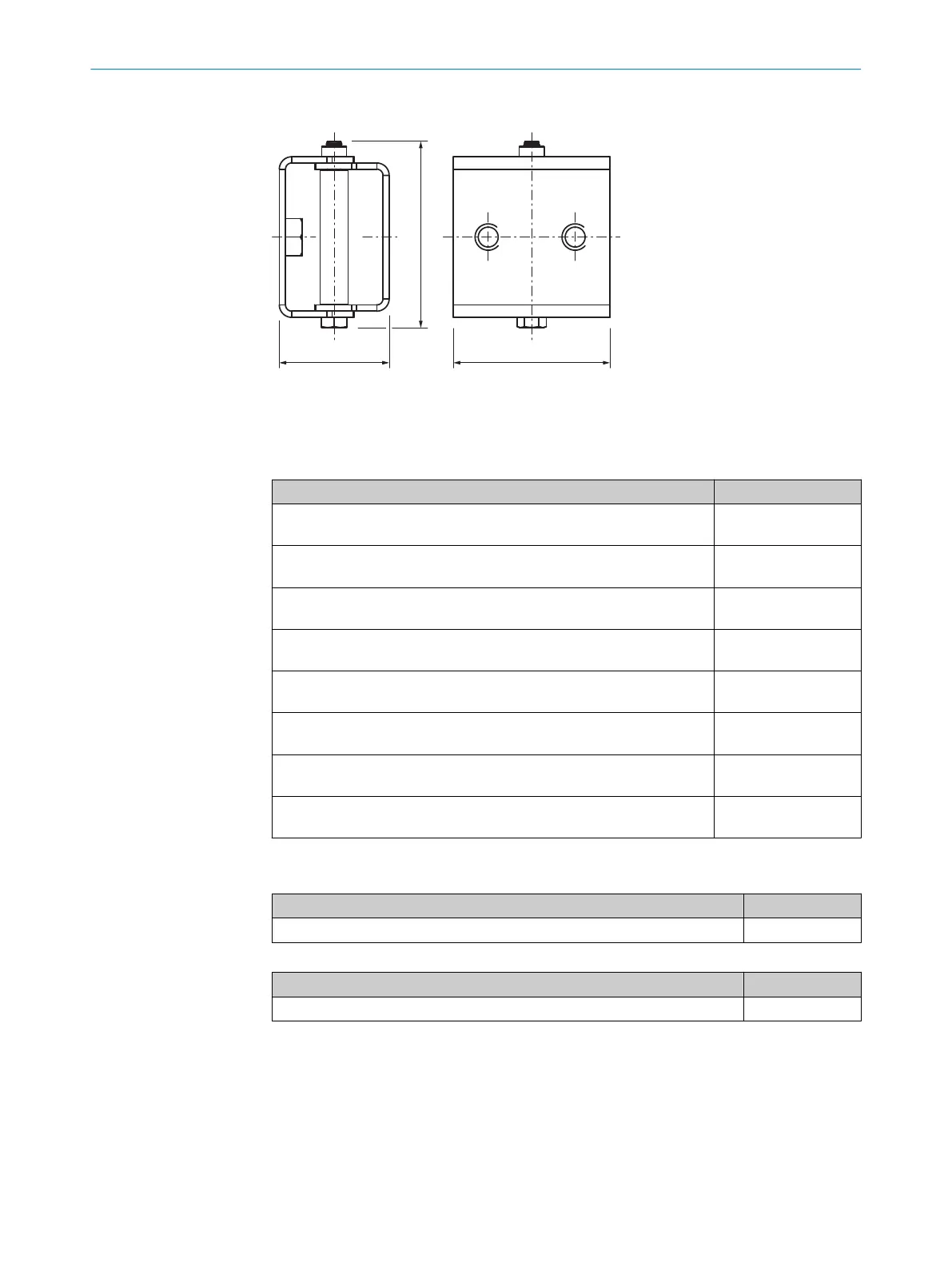

Figure 22: Dimensional drawing, alignment bracket (2072525)
9.2 Connectivity
Table 5: Ordering information for connecting cable
1)
M26, 12-pin (0.75 mm
2
)
Part Part number
DOL-0612G2M5075KM0, female connector, straight with 2.5 m cable,
f
lying leads
2022544
DOL-0612G05M075KM0, female connector, straight with 5 m cable,
flying leads
2022545
DOL-0612G7M5075KM0 female connector, straight with 7.5 m cable,
f
lying leads
2022546
DOL-0612G10M075KM0, female connector, straight with 10 m cable,
flying leads
2022547
DOL-0612G15M075KM0, female connector, straight, with 15 m cable,
flying leads
2022548
DOL-0612G20M075KM0 female connector, straight with 20 m cable,
f
lying leads
2022549
DOL-0612G30M075KM0 female connector, straight with 30 m cable,
flying leads
2022550
DOL-0612G50MD75KM0, female connector, straight, with 50 m cable,
f
lying leads
2033548
1)
Ambient operating temperature: Down to −30° C with fixed installation.
Table 6: Order information for cable (ready to assemble)
Part Part number
Per meter, max. 100 m, 12-wire (0.75 mm
2
) 6021437
Table 7: Ordering information for cable gland
Part Part number
Cable gland for the European market 5329002
The following accessories can only be used outside the explosion-hazardous area
9 ACCESSORIES
30
O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK
Subject to change without notice
