SICK C4000 Fusion Ex User Manual

5 Aligning the sender and receiver
After mounting and electrical installation, the sender and receiver must be aligned with
e
ach other.
DANGER
D
angerous state of the machine
b
Make sure that the outputs of the safety light curtain have no effect on the
machine during the alignment process.
NOTE
Use t
he optional alignment bracket if the alignment cannot be adjusted when mounting
the safety light curtain directly.
Aligning using the alignment bracket
T
he alignment bracket can be used to adjust the safety light curtain as follows:
– Rotate (± 45°)

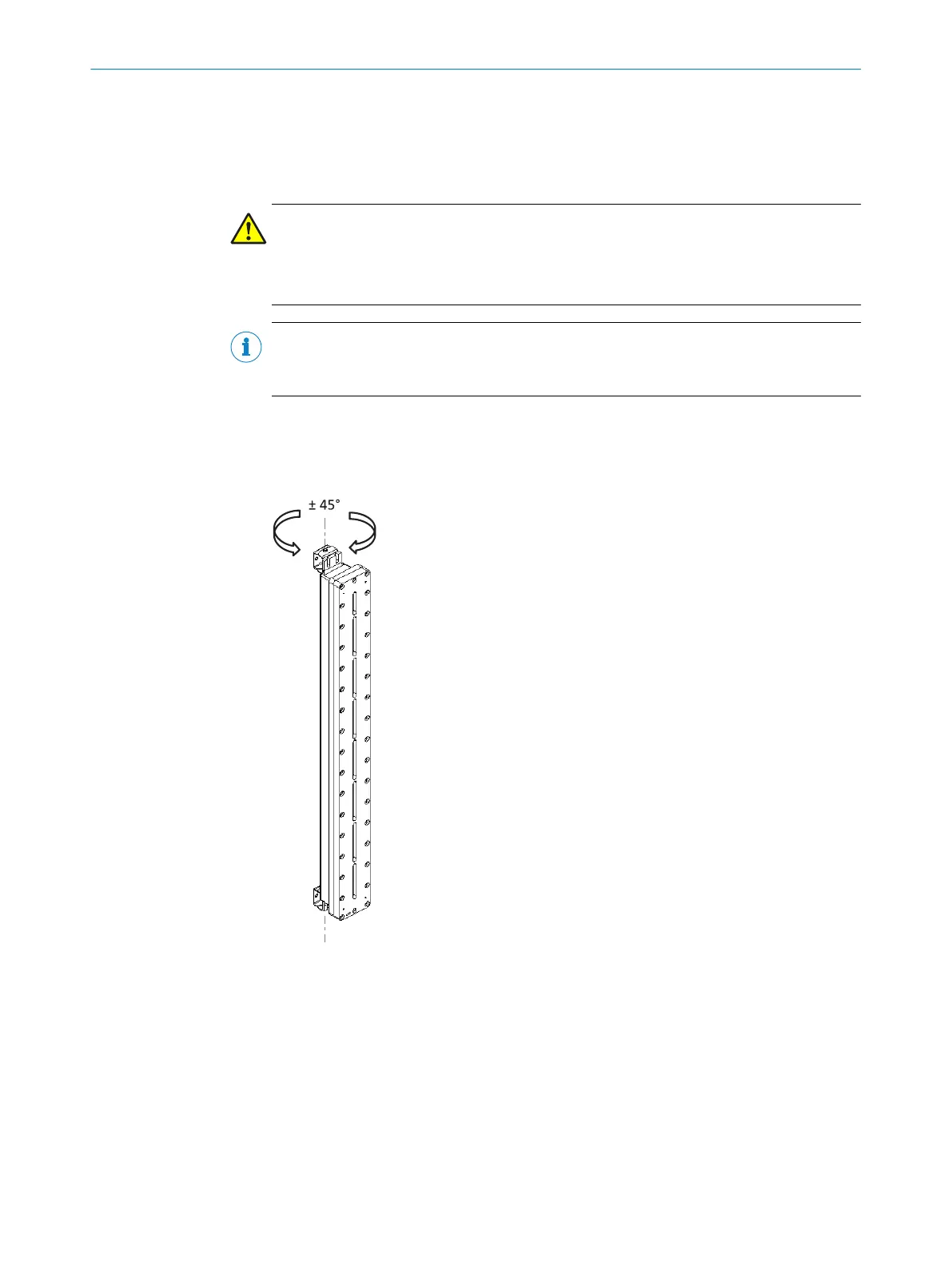

Figure 16: Rotating with the alignment bracket
Aligning the sender and receiver with one another
Ho
w to align the sender and receiver using the alignment bracket:
b
Pay attention to the mounting heights of the sender and receiver. Both devices
must be mounted at the same height.
b
Provide a rectangular protective field. The sender and receiver must be mounted
parallel to one another.
b
Switch on the power supply to the safety light curtain.
b
Rotate the sender to align the sender to the receiver.
b
Rotate the receiver to align the receiver to the sender.
ALIGNING THE SENDER AND RECEIVER 5
8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex
21
Subject to change without notice

SICK C4000 Fusion Ex Specifications

General

Supply voltage	24 V DC
Enclosure rating	IP65, IP67
Operating Voltage	24 V DC
Protection Rating	IP65, IP67
Resolution	30 mm
Protective field height	300 mm ... 1, 800 mm (depending on the variant)
Synchronization	Optical, cable
Ambient operating temperature	-30 °C ... +55 °C (depending on the variant)
Operating Temperature	-30 °C ... +55 °C (depending on the variant)
Outputs	2 safety outputs (OSSDs), 1 diagnostic output
