SICK C4000 Fusion Ex User Manual

Mounting the safety light curtain using the alignment brackets
2 x
Part no. 2072525
4 x
4 x
4 x
WS
13
mm
Scope of delivery
Required tools

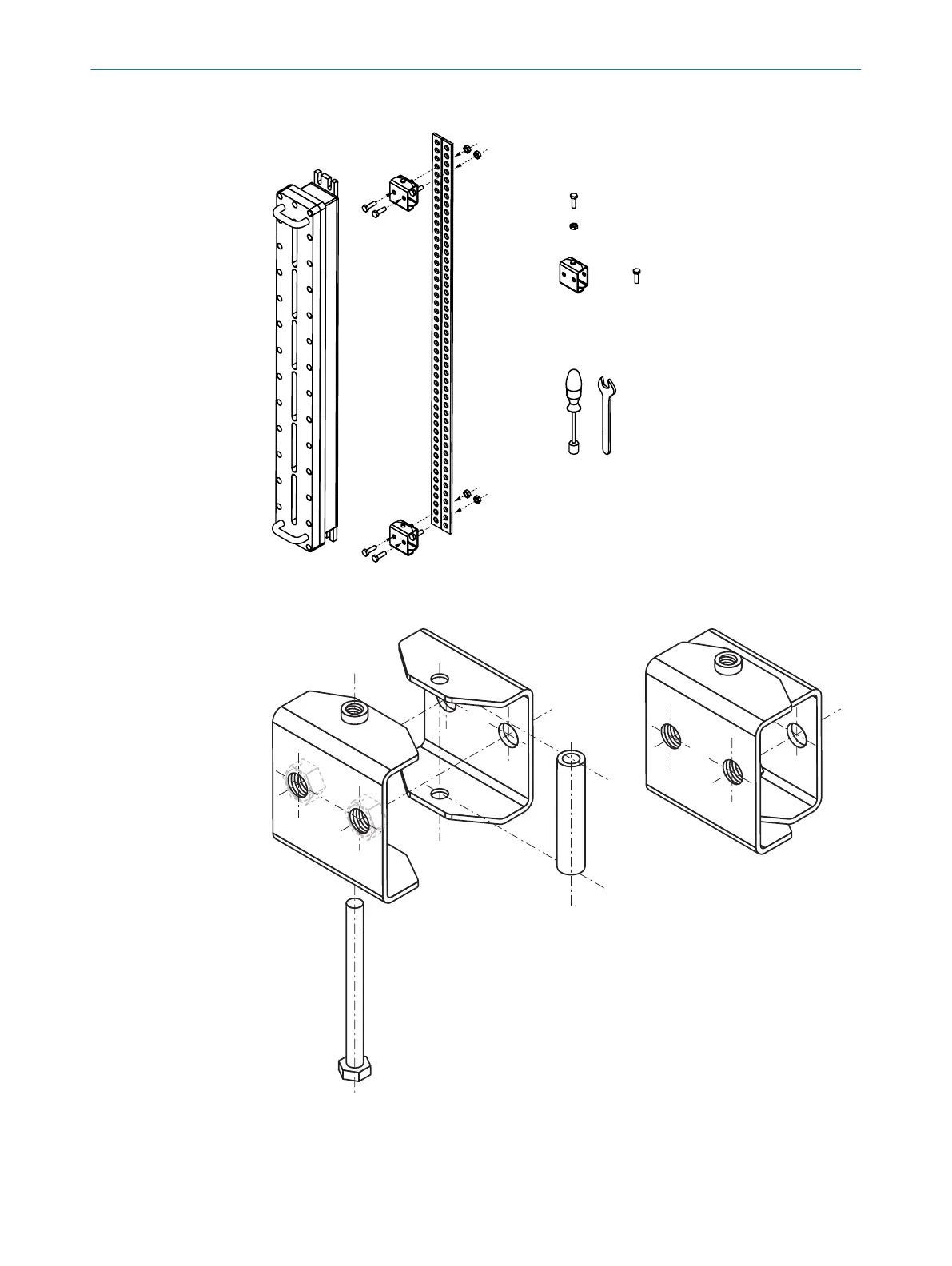

Figure 9: Mounting the safety light curtain using the alignment brackets
Figure 10: Assembling the alignment brackets
3 MOUN
TING
16
O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex 8022867/2019-03-04 | SICK
Subject to change without notice

SICK C4000 Fusion Ex Specifications

General

Supply voltage	24 V DC
Enclosure rating	IP65, IP67
Operating Voltage	24 V DC
Protection Rating	IP65, IP67
Resolution	30 mm
Protective field height	300 mm ... 1, 800 mm (depending on the variant)
Synchronization	Optical, cable
Ambient operating temperature	-30 °C ... +55 °C (depending on the variant)
Operating Temperature	-30 °C ... +55 °C (depending on the variant)
Outputs	2 safety outputs (OSSDs), 1 diagnostic output
