SICK C4000 Fusion Ex User Manual

7.3 Dimensional drawings
177,6267,4
6,4
9,5
67,5
58,7
161,8
89,6
44,5
1.100,2
1.068,2
1.035
142,1
50,8

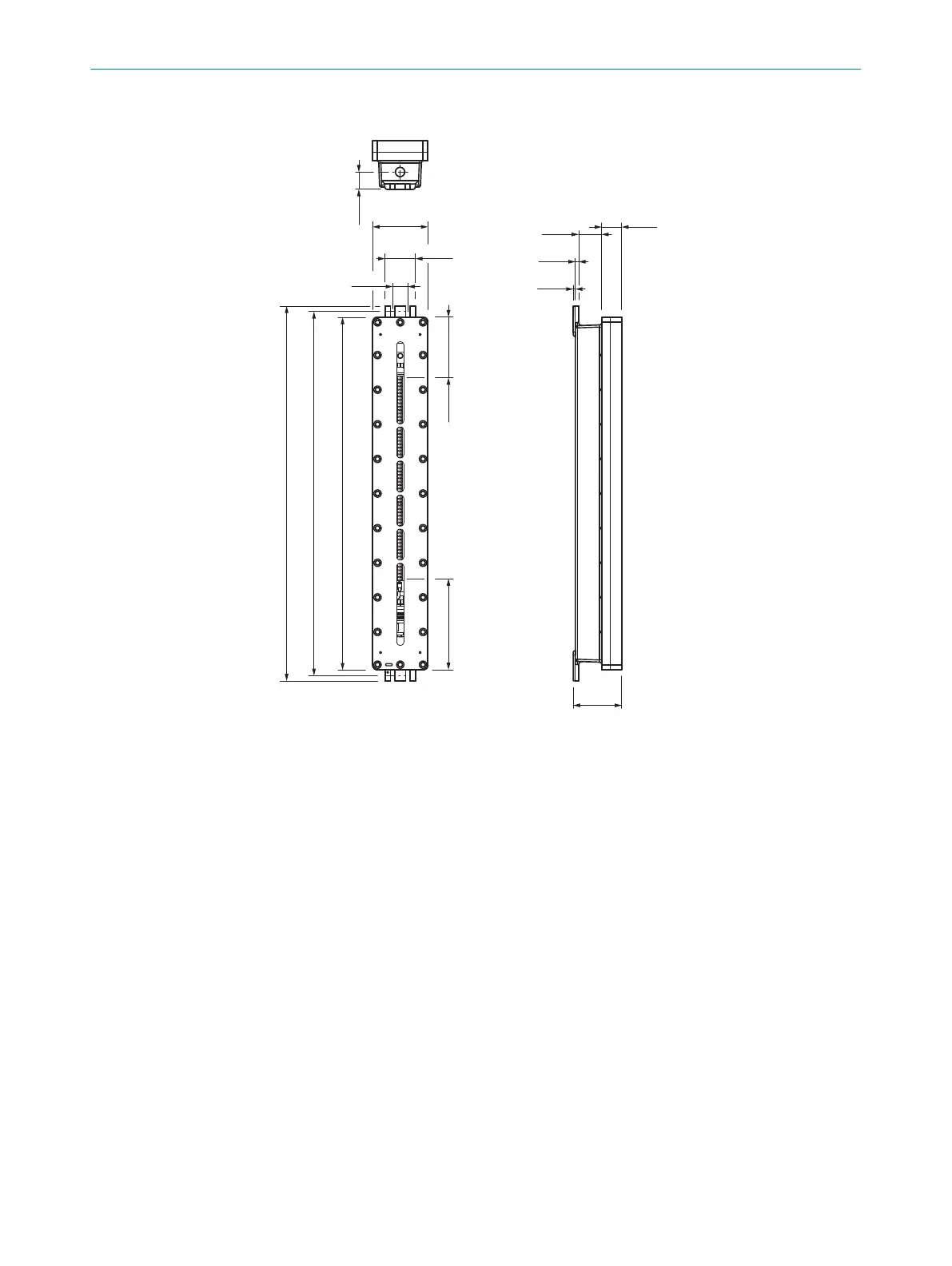

Figure 17: Dimensional drawing, sender and receiver, protective field height 600 mm
TECHNICAL DATA 7
8022867/2019-03-04 | SICK O P E R A T I N G I N S T R U C T I O N S | C4000 Fusion Ex
25
Subject to change without notice

SICK C4000 Fusion Ex Specifications

General

Supply voltage	24 V DC
Enclosure rating	IP65, IP67
Operating Voltage	24 V DC
Protection Rating	IP65, IP67
Resolution	30 mm
Protective field height	300 mm ... 1, 800 mm (depending on the variant)
Synchronization	Optical, cable
Ambient operating temperature	-30 °C ... +55 °C (depending on the variant)
Operating Temperature	-30 °C ... +55 °C (depending on the variant)
Outputs	2 safety outputs (OSSDs), 1 diagnostic output
