9 Accessories
9.1 Brackets
Part Part number
2 swivel mount brackets, 2 risers, 1 mounting bracket with riser
(
included with delivery)
2074626
2 alignment brackets for the explosion-proof enclosure 2072525
Swivel mount bracket with mounting bracket and risers
3,6
41
14,5
8,5
43,5
59
62
Ø 30,6
75
37,5
15
7
Ø 8,4
30

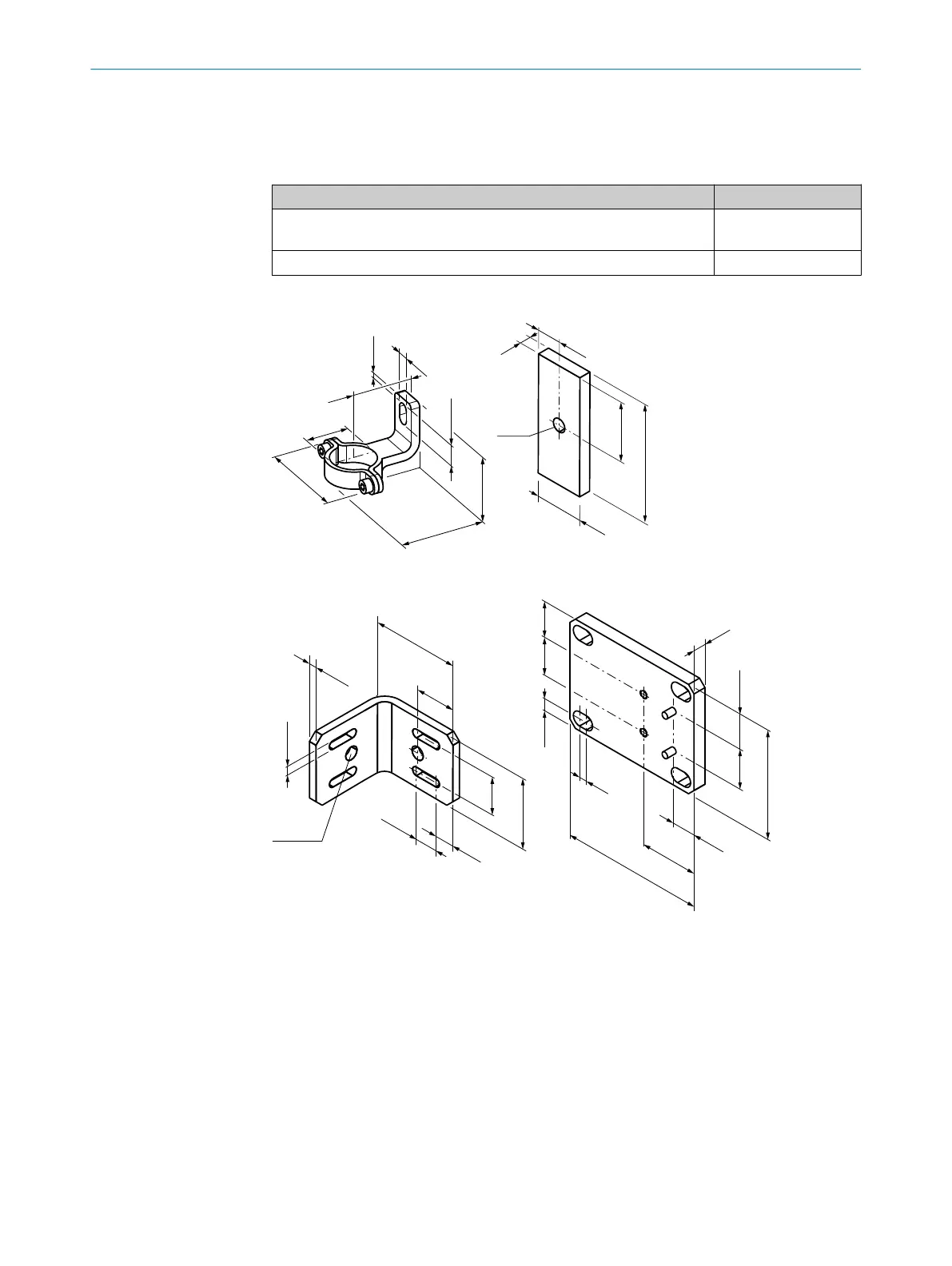

Figure 20: Dimensional drawing, swivel mount bracket with riser (2074626)
8
2225
69
22,5
24
7,5
90,5
15,1
36,1
5
50
±1
44
±1
25
12
14
24
5,3
±0,1
Ø 8,3
±0,1
4,8
Figure 21: Dimensional drawing, mounting bracket with riser (2074626)
