SICK CLV6 Series - Dimensional drawings (Dimensions in mm (inch))

CLV6 SERIES | SICK8016144/2013-09-19
Subject to change without notice
27
BAR CODE SCANNERS CLV62x
Version Connection type Reading eld Scanner design Model name Part no.
CLV621 Long Range
Cable
Front
Line scanner CLV621-0000 1041784
Raster scanner CLV621-1000 1041786
Side (105°)
Line scanner CLV621-2000 1041788
Raster scanner CLV621-3000 1041790
Ethernet
Front
Line scanner CLV621-0120 1041785
Raster scanner CLV621-1120 1041787
Side (105°)
Line scanner CLV621-2120 1041789
Raster scanner CLV621-3120 1041791
CLV622 Short Range
Cable
Front
Line scanner CLV622-0000 1041792
Raster scanner CLV622-1000 1041794
Side (105°)
Line scanner CLV622-2000 1041796
Raster scanner CLV622-3000 1041798
Ethernet
Front
Line scanner CLV622-0120 1041793
Raster scanner CLV622-1120 1041795
Side (105°)
Line scanner CLV622-2120 1041797
Raster scanner CLV622-3120 1041799

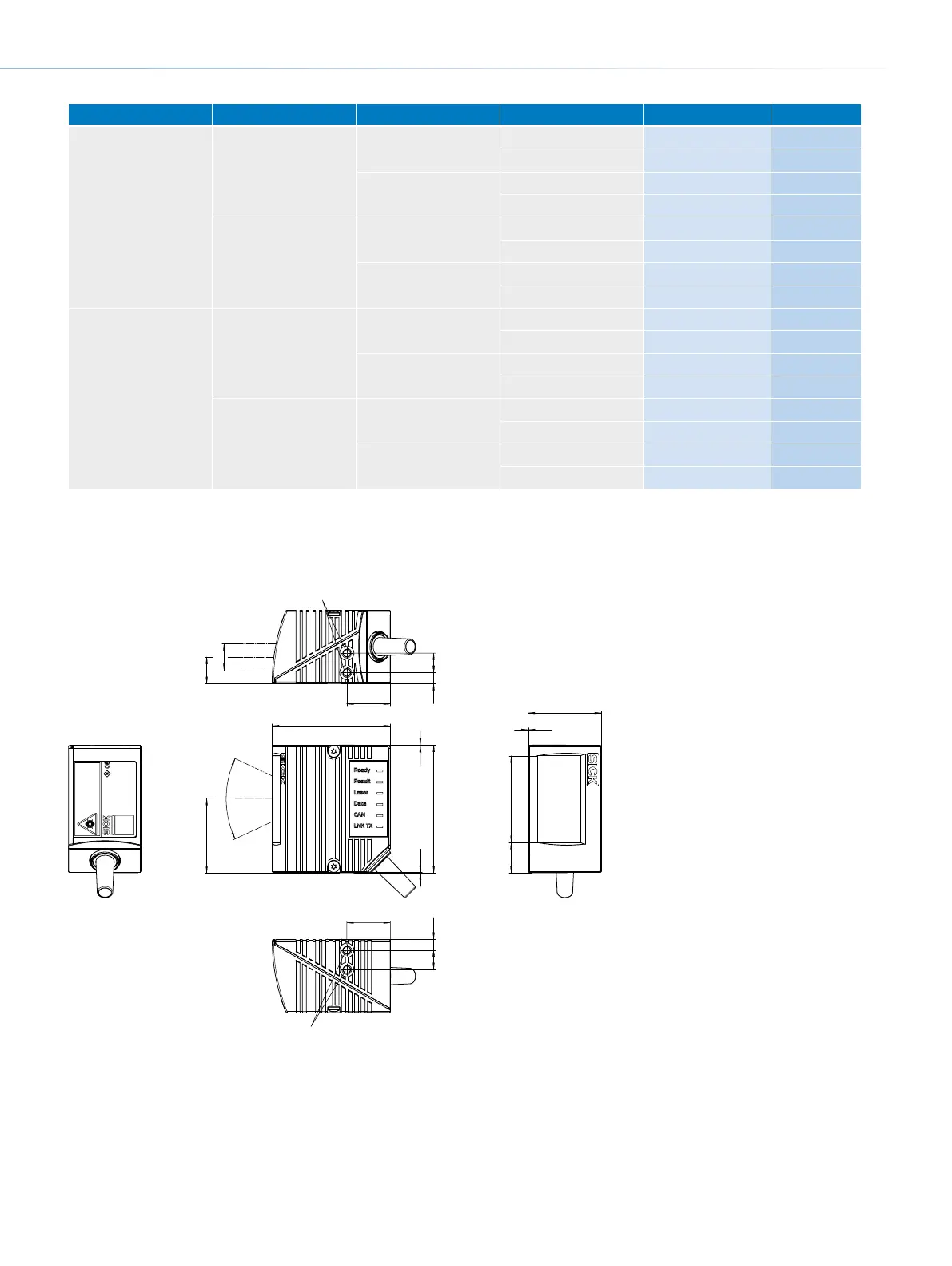

Dimensional drawings (Dimensions in mm (inch))
CLV62x Standard, front
M5
M5
61
22.5
37.9
0.2
22.5
0.2 0.2
65.95.710
38.5
50°
13.7
13.9
5.7 10
44.715.6
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
