CLV6 SERIES | SICK 8016144/2013-09-19
Subject to change without notice
56
CLV65x BAR CODE SCANNERS

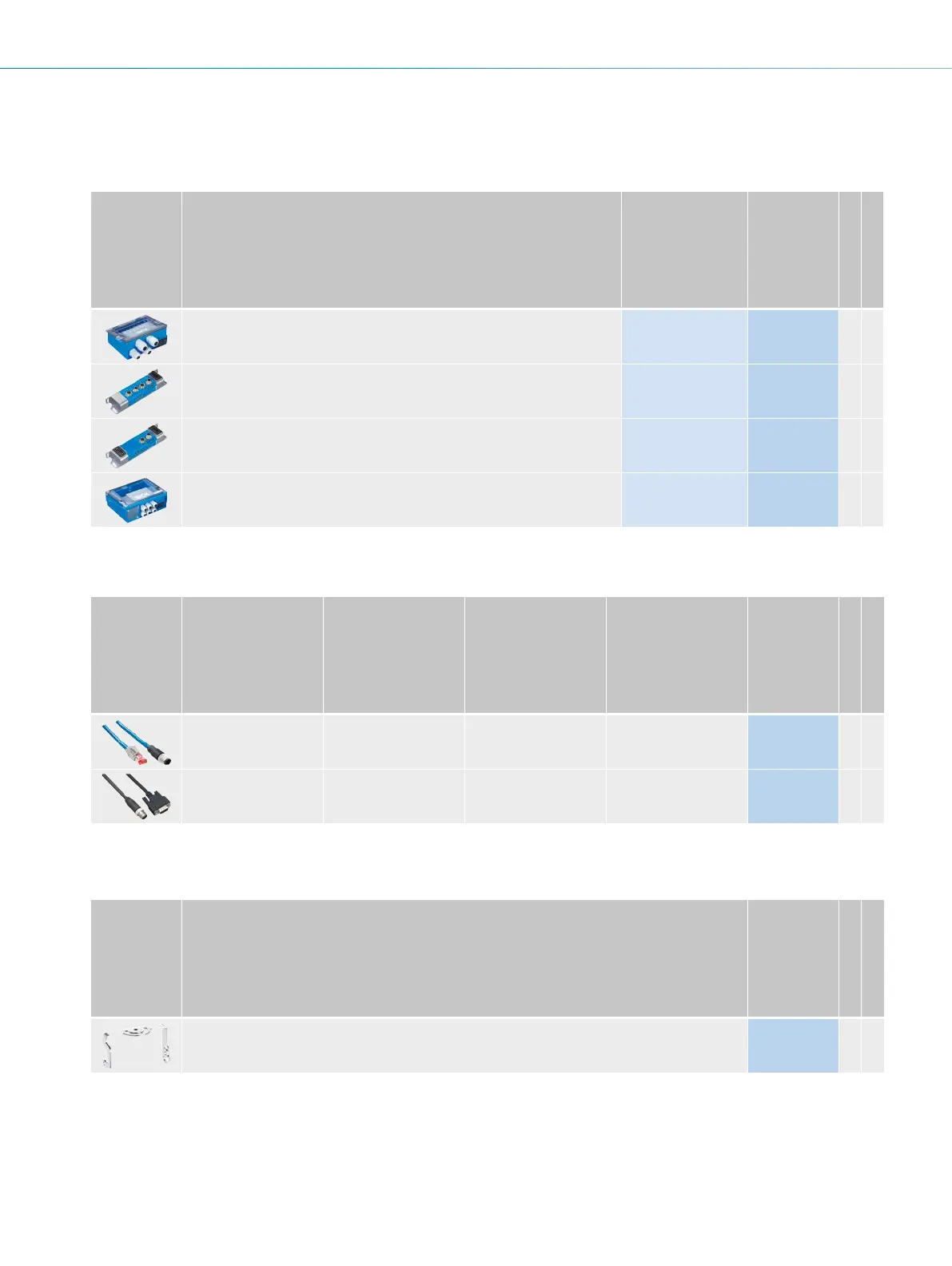

Recommended accessories
Connection systems
Modules
Brief description Type Part no.
CLV63x-65x Cable CLV63x-65x Ethernet
Small connection module for one sensor, 4 cable glands, base for CMC600 CDB620-001 1042256
O O
Fieldbus proxy/gateway for connecting identication sensors to PROFIBUS-DP
networks (PROFIBUS interface: 2 x M12, male connector/female connector,
5-pin)
CDF600-2100 1058965
O O
Fieldbus proxy/gateway for connecting identication sensors to PROFIBUS-DP
networks (PROFIBUS interface: 1 x D-Sub, female connector, 9-pin)
CDF600-2103 1058966
O O
Modular connection module for one sensor CDM420-0001 1025362
O O
Plug connectors and cables
• Cable length: 2 m
Signal type
Connection type
head A
Connection type
head B Cable Part no.
CLV63x-65x Cable CLV63x-65x Ethernet
Ethernet
Male connector, M12,
4-pin, straight, D-coded
Male connector, RJ45,
8-pin, straight
– 6034414 –
O
Power, serial, CAN,
digital I/Os
Female connector,
M12, 12-pin, straight
Male connector, D-Sub-
HD, 15-pin, straight
To connection module
CDx (except CDB650)
2041834 –
O
Mounting systems
Mounting brackets/plates
Brief description Part no.
CLV63x-65x Cable CLV63x-65x Ethernet
Hanger-shaped mounting bracket 2042800
O O
- For additional accessories, please see page 66
