SICK FX3-MOC1 - Diode Module DM8-A4 K

12.4.6 Diode module DM8-A4K

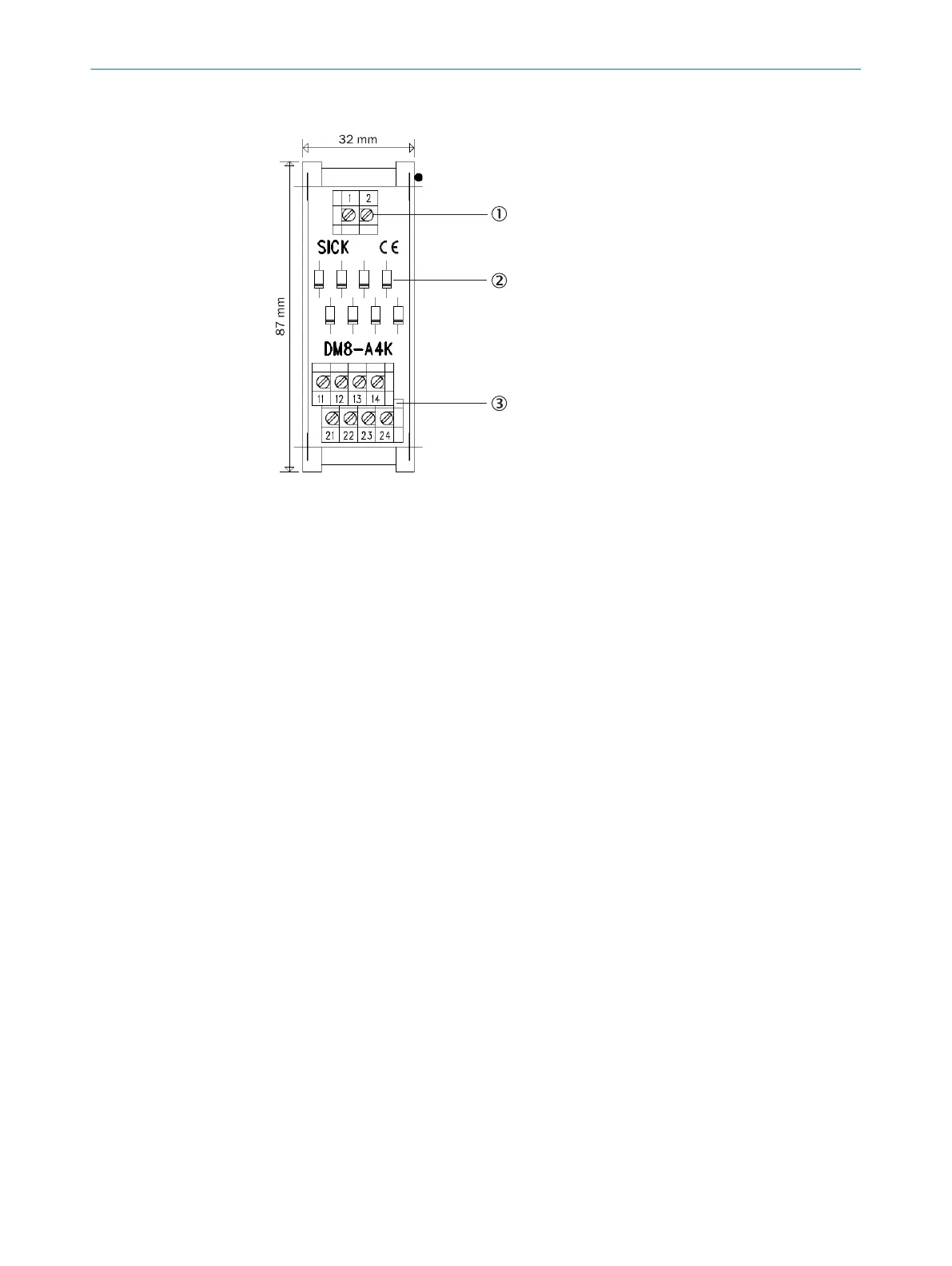

Figure 77: Dimensioned drawing diode module DM8-A4K
1
Inputs
2
8 × 1N4007
3
Outputs
12 TECHNICAL DATA
178
