NOTE
W
here encoders with two outputs are concerned, inputs A– and B– on the FX3-MOCx
must not remain open; they must be connected to 0V. In this case, the connection
must be as close as possible to the 0V encoder connection.

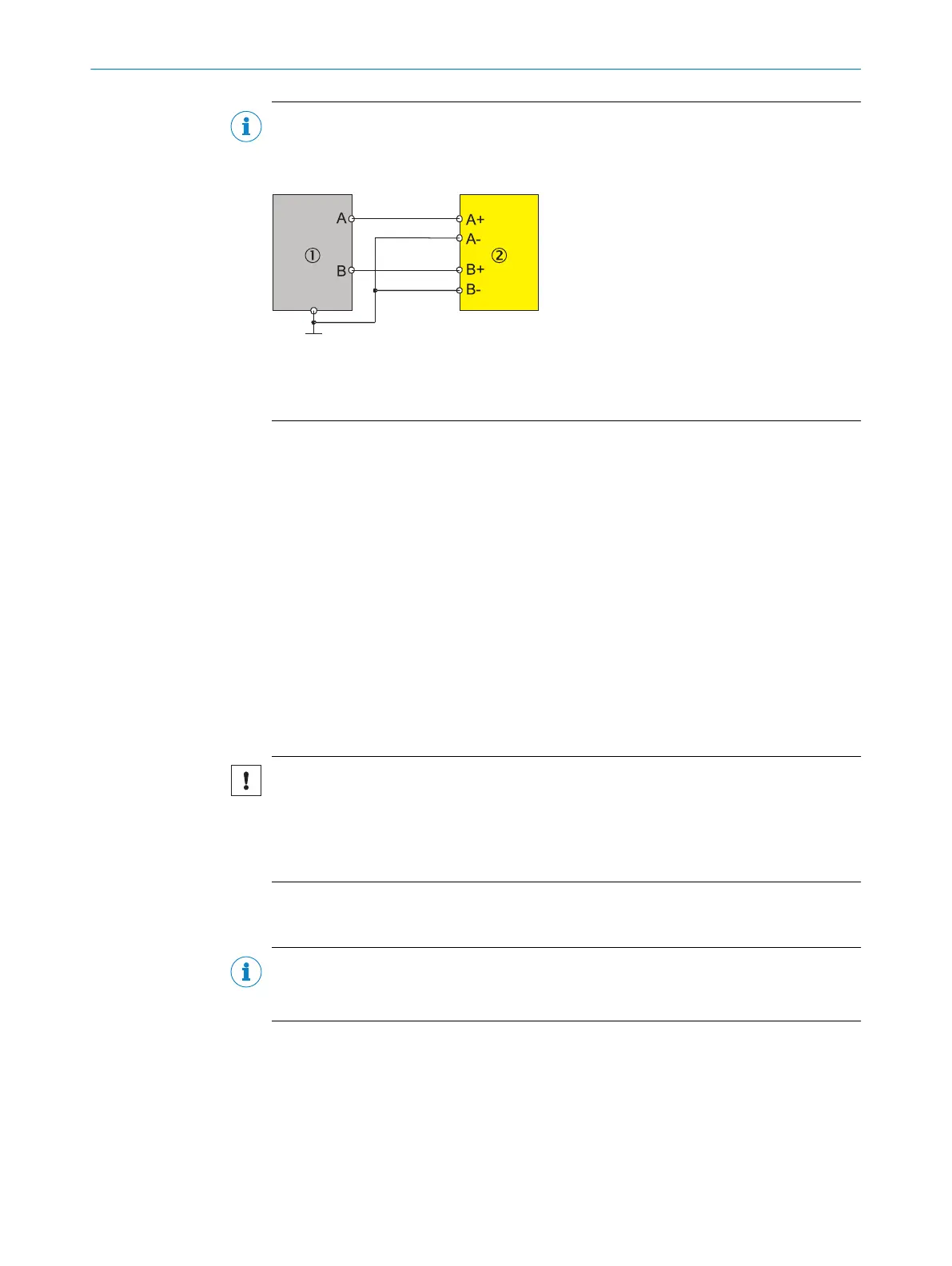

Figure 55: Connection of A/B incremental encoders with two outputs
1
A/B incremental encoder with two outputs
2
FX3-MOCx
24V are available at the encoder connection of the FX3-MOC0 module for the encoder
v
oltage supply. A selectable supply voltage is available at the encoder/motor feed‐
back connection boxes. Details:
see "Encoder/motor feedback connection units", page 61
see "Motion Control MOC0", page 154 (technical data)
see "Motion Control MOC1", page 159 (technical data)
see "EBX1, EBX3 and EBX4 encoder/motor feedback connection units", page 165
(technical data)
5.4.9 Connecting analog sensors
Two analog sensors can be connected to the FX3-ANA0 analog input module in order
to measure a joint process variable. The analog input module has two analog inputs,
which are continually compared with one another.
Only sensors with a standardized current interface in accordance with EN61131-2
5.3.1 and with a signal strength of4 to 20mA can be connected and evaluated.
NOTICE
Ex
ceeding the limit values at the inputs
The device may be damaged if this is not observed.
Observe the limit values for the inputs (30V DC/30mA).
Only use suitable sensors.
The AI1 sensor input consists of pins 1+ and 1–. The AI2 sensor input consists of pins
2+ and 2–.
NOTE
T
he FX3-ANA0 can detect a sensor connection with reverse polarity (I1+ switched with
I1– or I2+ switched with I2–) as an error.
If only one individual sensor is used for a process variable, this sensor must be con‐
nec
ted in series to both inputs; see figure 57.
Sensor connection cables
The FX3-ANA0 analog input module has no shielding connections. If shielding is
required for connecting the sensors – for reasons of electromagnetic compatibility,
for example – the shield must be connected using a ground terminal that is positioned
in the control cabinet close to the Flexi Soft main module.
5 ELE
CTRICAL INSTALLATION
96
O P E R A T I N G I N S T R U C T I O N S | Flexi Soft Modular Safety Controller 8012478/1IG6/2023-02-24 | SICK
Subject to change without notice
