SICK Lector621 User Manual

NOTE
The following functions are deactivated in Live mode:
•
Digital inputs and outputs
•
Data output via the host interface.
2. Align the device in the desired depth of field range with a medium-height object
with a test code.
3. Click the Camera & Illumination configuration bar. Use the Shutter timer and Brightness
sliders to adjust the image brightness so that the code is easy to see.
4. Only available in Extended mode: Activate the sharpness diagnostic bar. To do this,
go to the Camera & Illumination area and click the Display sharpness checkbox.
Continuing configuration
1. Make settings for additional functions during planned operation such as codes,
trigger, data processing, data interface, etc.
2. In the Online Images window, click the Operation button and test the settings in oper‐
ational use.
Completing the configuration
1.
To permanently save the parameter set in the device: Click the button.
2.
To permanently save the parameter set on the PC: Click the button.

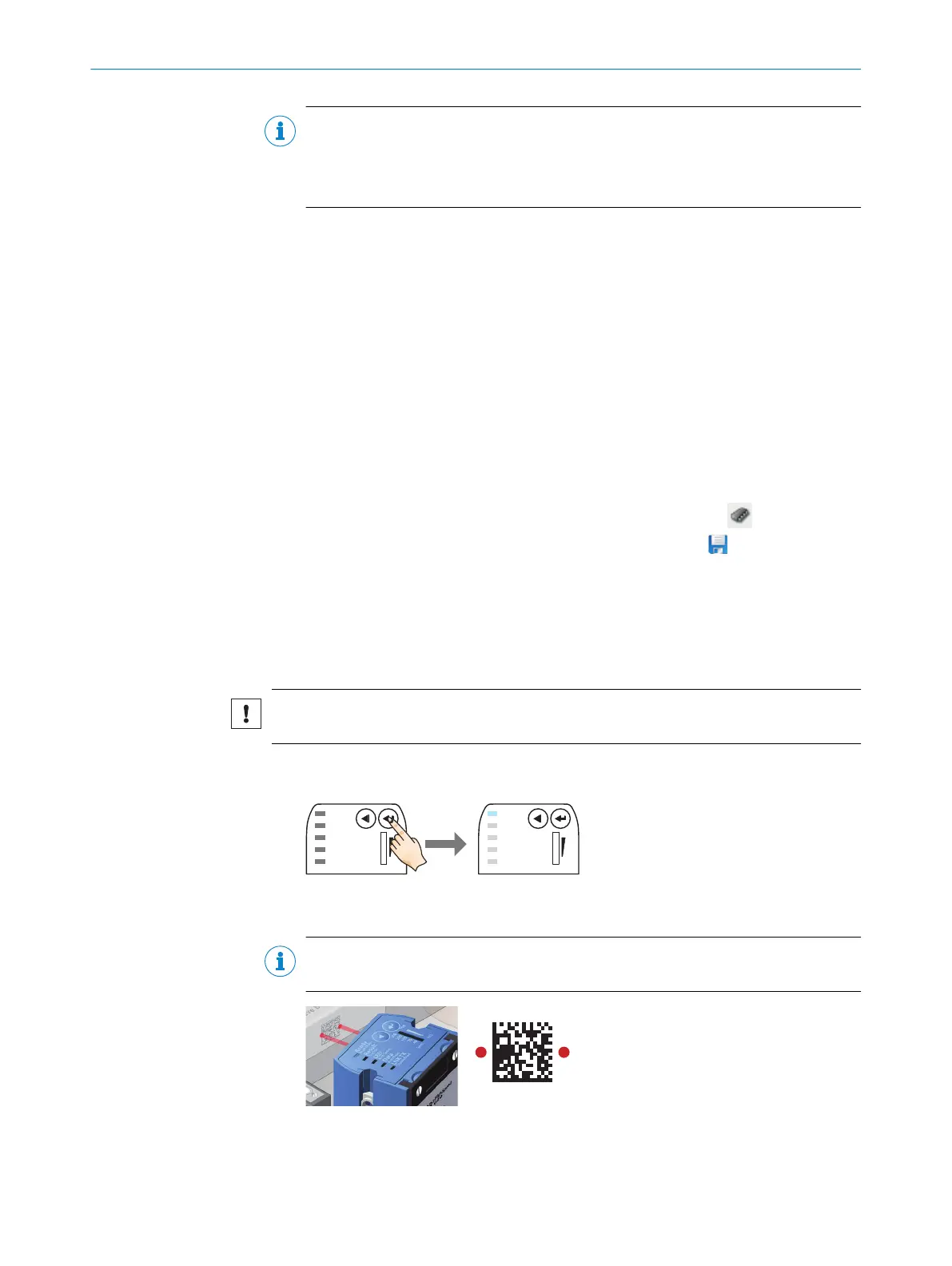

7.2 Configuring the device via buttons without configuration software (SOPAS ET)
The two function buttons, the second display level of the status LEDs and the bar graph
display are used to manually adjust the reading characteristics of the device with Auto-
Setup.
NOTICE
Auto-Setup is not supported for a Pharmacode.
1. Start Setup mode.
Ready
Read Diagn
Result
TeachIn
LED
Auto-Setup
Data
Autofocus
LNK TX
Userdefined
300
200
100
70
40
100
0
[mm]
[%]
Ready
Read Diagn
Result
TeachIn
LED
Auto-Setup
Data
Autofocus
LNK TX
Userdefined
300
200
100
70
40
100
0
[mm]
[%]
O
Press key 3 seconds 1
1
Press the function button for 3 seconds
2. Align the device with the code.
NOTE
The Lector621 ECO does not have a laser alignment aid.
1
1
Code pattern
3. Select Auto-Setup.
COMMISSIONING
7
8022502/15NT/2020-02-11 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector621
53
Subject to change without notice
