SICK Lector621 User Manual

13 Annex
13.1 EU declaration of conformity / Certificates
The EU declaration of conformity and other certificates can be downloaded from the
Internet at:
•
www.sick.com/Lector62x
13.2 Dimensional drawings (electronic)
Current dimensional drawings in various electronic formats can be downloaded online:
•
www.sick.com/Lector62x
13.3 Signal assignment of cables with open cable end at one end
13.3.1 “Power/SerialData/CAN/I/O” connection to customer-specific connection equipment or control
cabinet
Adapter cable suitable for drag chain
Part no. 2070425 (3 m), part no. 2070426 (5 m), part no. 2070427 (10 m), shielded,
suitable for drag chain, suitable for 2 A
For variant Lector621, not for variant Lector621 ECO
Ambient temperature range:
For mobile installation: –25 °C to +80 °C, for fixed installation: –40 °C to +80 °C
...
ð
3
1
7
2
6
5
4
8
13
14
17
15
9
10
12
16
11
1 2

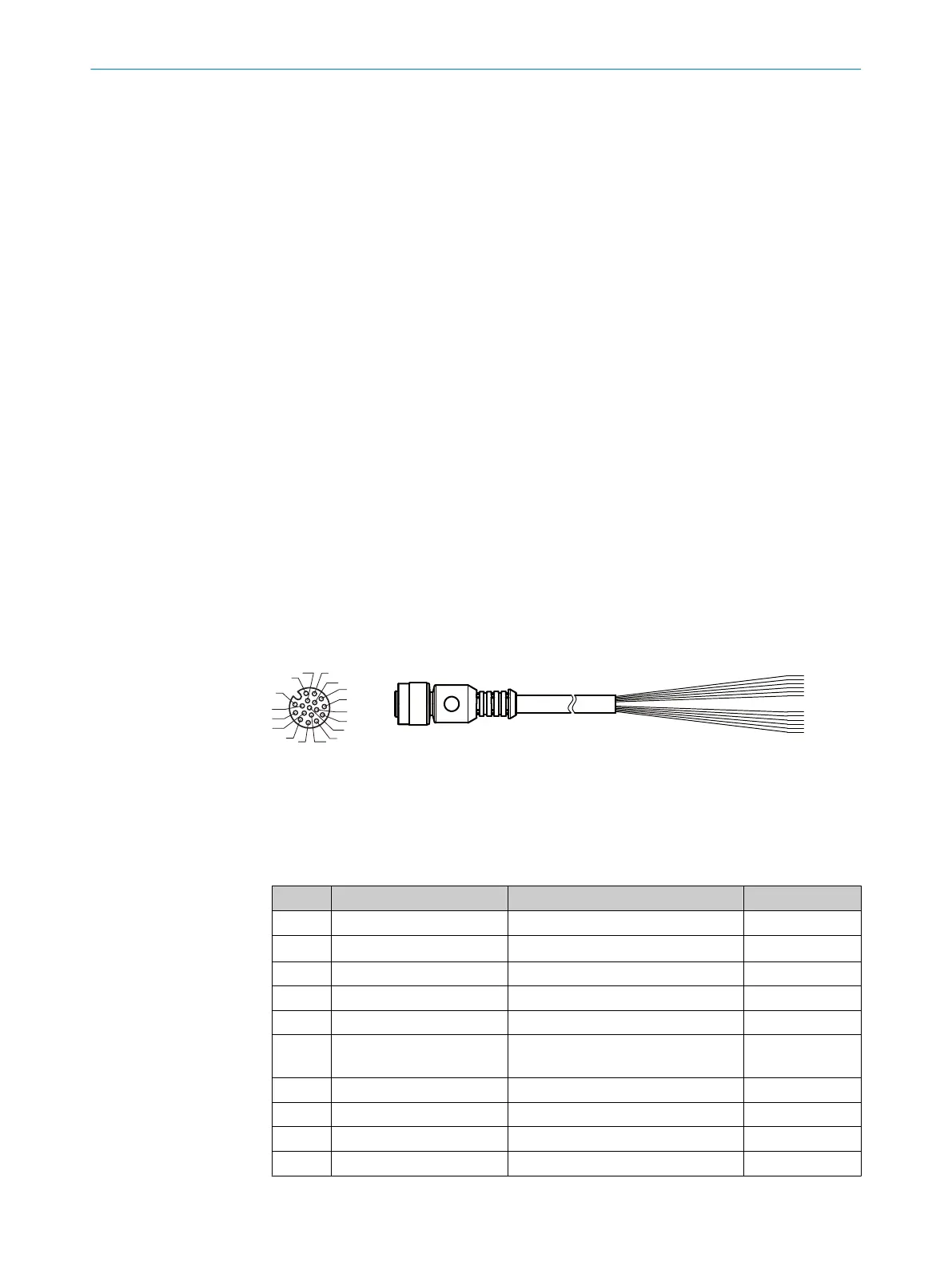

Figure 32: Adapter cable, e.g. part no. 2070425 (3 m)
1
Female connector, M12, 17-pin, A-coded (view from front)
2
Illustration may differ
Table 27: Signal assignment of adapter cable with open end
Pin Signal Function Wire color
1 GND Ground Blue
2 V
S
Supply voltage Brown
3 CAN L CAN bus (IN/OUT) Green
4 CAN H CAN bus (IN/OUT) White
5 TD+ (RS-422), Host Host interface (sender+) Pink
6 TD– (RS-422), Host
TxD (RS-232), host
Host interface (sender-) Yellow
7 TxD (RS-232), Aux AUX interface (sender) Black
8 RxD (RS-232), Aux AUX interface (receiver) Gray
9 SensGND Digital input ground White-black
10 Sensor 1 Digital input 1 Violet
13 ANNEX
72
O P E R A T I N G I N S T R U C T I O N S | Lector621 8022502/15NT/2020-02-11 | SICK
Subject to change without notice
