Position of digital outputs
•
Male connector of the device (M12, 17-pin, A-coded)
•
Open end of the adapter cable (female connector, M12, 17-pin, A-coded/open
end)
•
CDB650-204 connection module
All digital outputs are each available at the individual positions.
The 4 digital outputs are available reduced to 2 outputs (Result 1, Result 2) in the
CDM420-0006 connection module. Connect the device to the CDM420-0006 connec‐
tion module using an adapter cable (female connector, M12, 17-pin, A-coded / male
connector, D-Sub-HD, 15-pin).
V
out
3
4
Switching output of device 1
!
"
Signal 2
GND

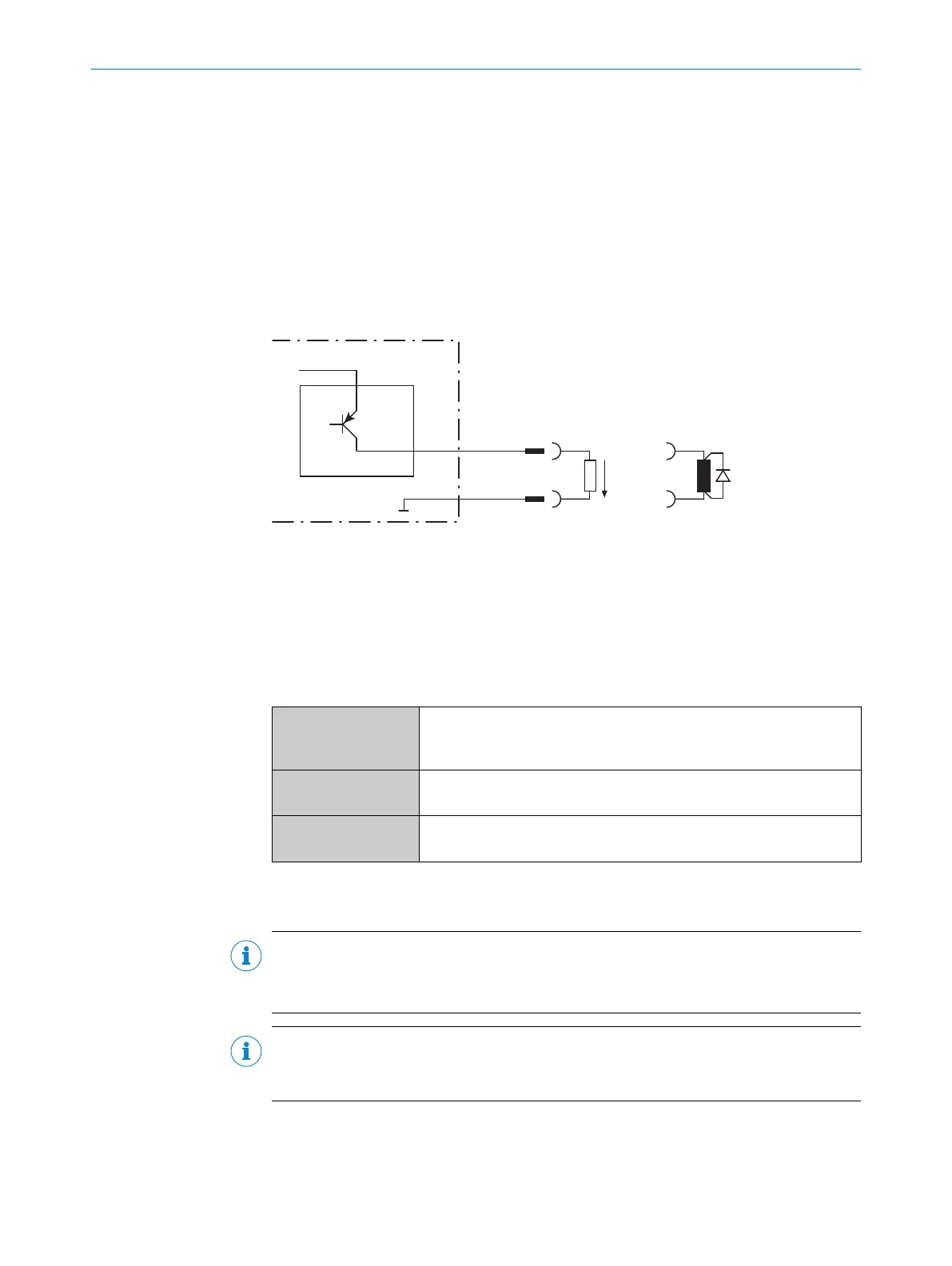

Figure 15: Wiring a digital output
1
Digital output of the device (Result 1 to Result 4)
2
Output signal
3
Output voltage V
out
4
With inductive load: see note
!... "
For pin assignment, see respective device
Table 15: Characteristic data of the digital outputs
Switching behavior PNP switching to supply voltage V
S
Default: No function
Logic: not inverted (active high)
Features
•
Short-circuit protected
•
Not electrically isolated from V
S
1)
Electrical values 0 V ≤ V
out
2)
≤ V
S
(V
S
−1.5 V) ≤ V
out
≤ V
S
at I
out
3)
≤ 100 mA
1)
Supply voltage.
2)
Output voltage.
3)
Output current.
NOTE
Provide an arc-suppression switch at the digital output if inductive load is present.
b
Attach a freewheeling diode directly to the load for this purpose.
NOTE
Capacitive loads on the digital outputs have an effect on the switch-on and switch-off
behavior. A maximum capacitance of 100 nF is the limit value.
