Working range diagram
1
2
1
3

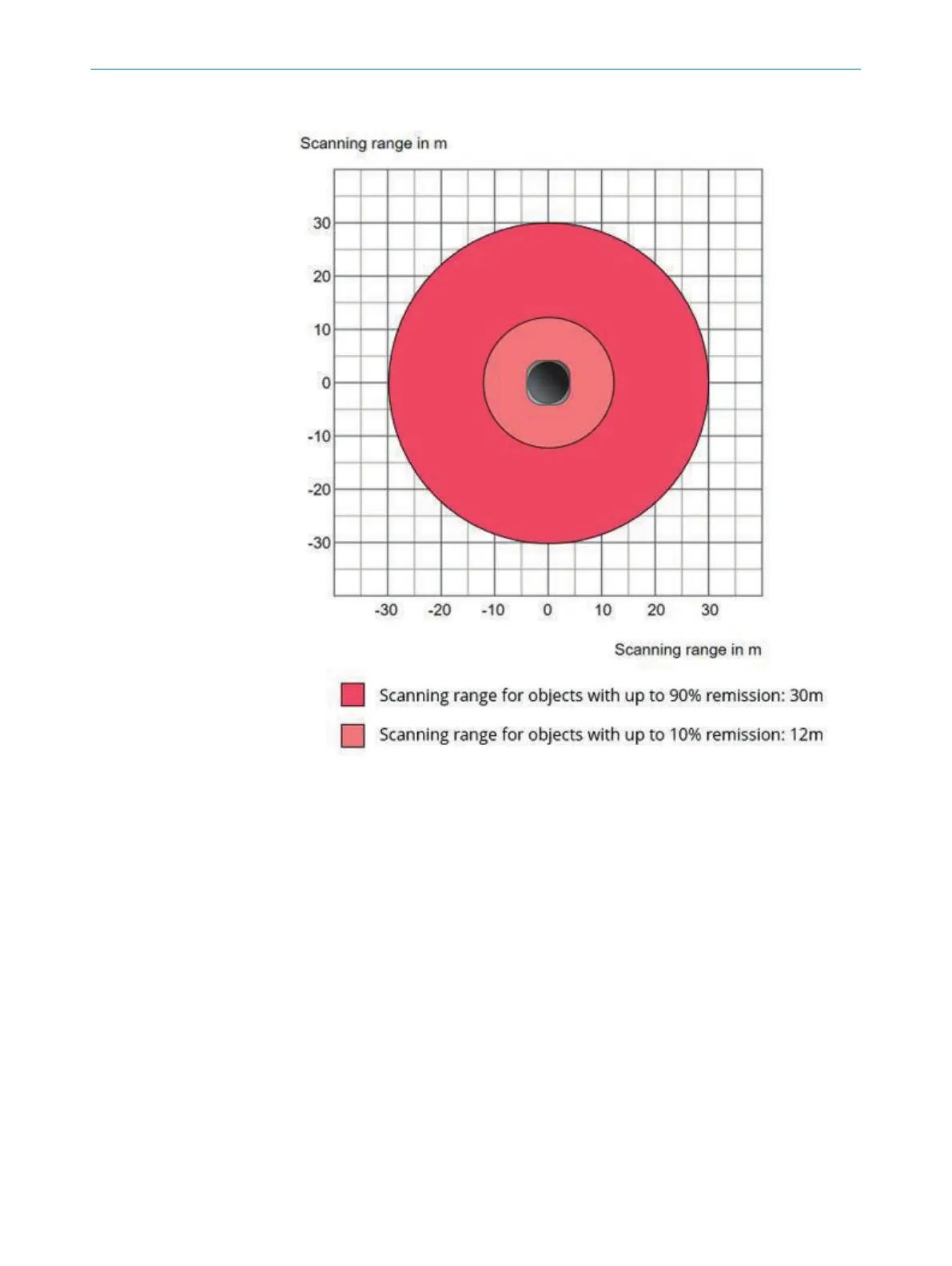

Figure 38: Diagram of the working range (10kLux), top view
1
Scanning range in m
2
Scanning range for object with up to 90% remission: 30m
3
Scanning range for object with up to 10% remission: 12m
