Protection class III (IEC61140:2016-11)
Electrical safety IEC61010-1:2010-06
Weight 0.7kg
Dimensions (L x W x H) 100.3mm x 100.3mm x 98.5mm
Maximum output current Depends on the number of outputs used/parameterized.
100mA per channel when using 4 outputs, 200mA per channel
for 2 outputs, 50mA per channel for 8 outputs.
10.3 Dimensional drawing
43.5 (1.71)
22 (0.87)
19.9 (0.78)
39.4 (1.55)
118.9 (4.68)
94.43°
134.59°
56.55 (2.23)
8
4
multiScan
94.8 (3.73)
20 (0.79)
3 (0.12)
3
120.2 (4.73)
100.3 (3.95)
M5 (4x)
30 (1.18)
35.15 (1.38)
98.5 (3.88)
12.50 (0.49)
1 2
7
50.15 (1.97)
58 (2.28)
M5 (3x)
50.15 (1.97)
50.15 (1.97)
50.3 (1.98)
50.15 (1.97)
5
+/-180°
90°
90°
0°
6
M5 (3x)
53 (2.09)
17.5 (0.69)
61.5 (2.42)
1

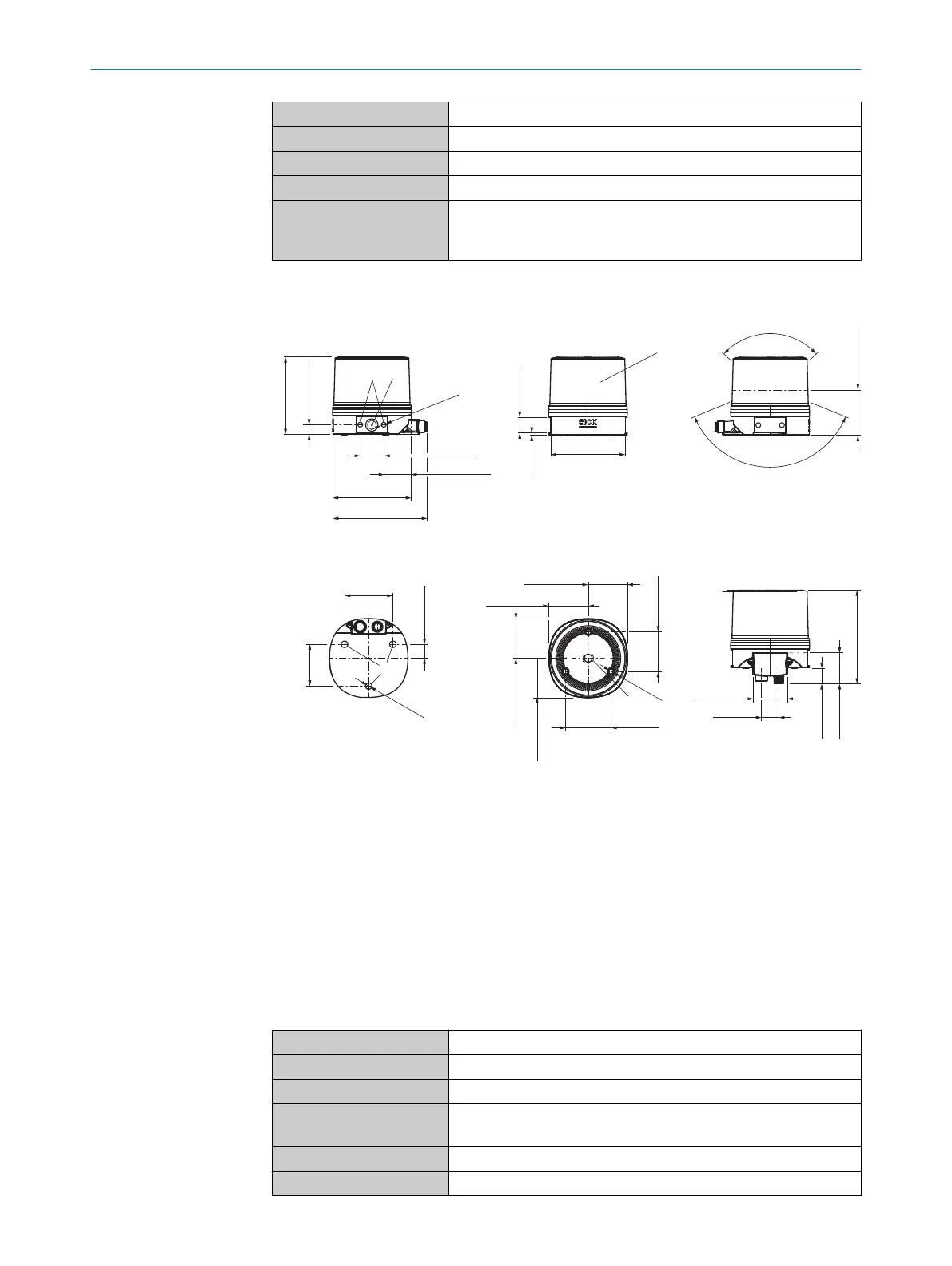

Figure 40: Device structure and dimensions, dimensions in mm (inch)
1
M5x7.5 fixing holes for mounting the device
2
membrane
3
Optics cover
4
Visual zero position with maximum viewing range
5
Direction of rotation
6
M5x7.5 fixing holes for accessories only
7
Supply voltage connection
8
Ethernet connection
10.4 Performance
Measurement data rate 216000 … 648000 measuring points/second
Scanning frequency 20Hz
Frame rate per frame ≤ 5ms
Systematic error ±50mm; reflector: -80 to +50mm
Temperature drift: Typically ±0.5mm/K
Statistical error ≤ 20mm
Integrated application Data output
10 TECHNICAL DATA
