8 Operation
8.1 Description of the graphical user interface

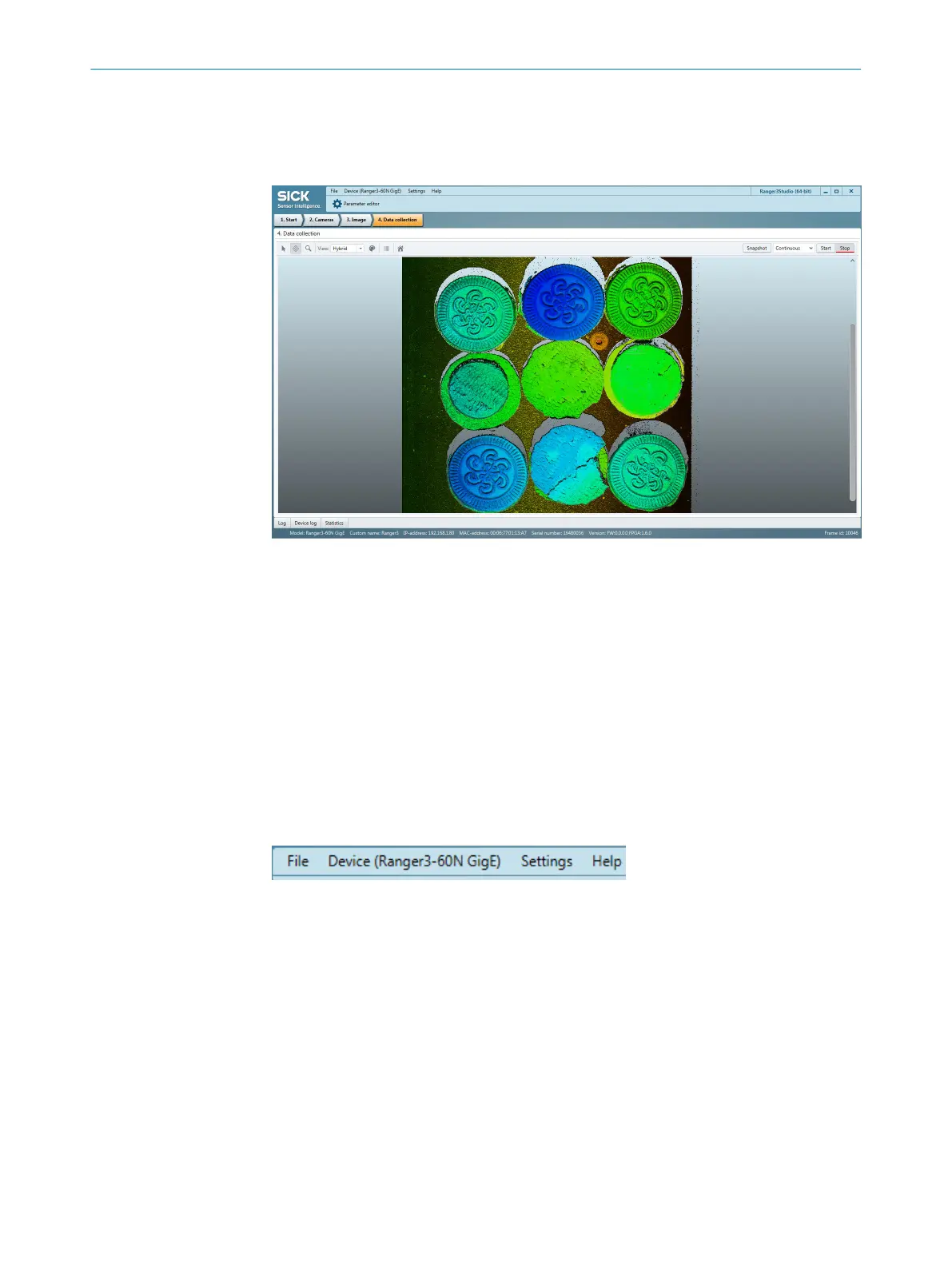

Figure 19: Graphical user interface
The Ranger3 Studio application is part of the Ranger3 SDK (see "Installing PC soft‐
ware", page 23). You use its graphical user interface (GUI) to configure camera parame‐
ters and evaluate the measurement results. It is also useful when you mount the cam‐
era and laser, and adjust focus and aperture.
The GUI offers different ways to visualize the data. You can also store data to file for
later use. You can change the settings for the camera and instantly see how the
changes affect the measurement result. The GUI is therefore useful for finding the best
parameter settings for a certain application.
Once the camera has been set up to deliver measurement data that meets the require‐
ments, the settings can be saved in a parameter file on the PC.
8.1.1 Menus
Figure 20: Menus
Four menus are available.
The File menu includes the following alternatives:
•
Import configuration
•
Export configuration
•
Load buffer from file
•
Save buffer to file
•
Exit
The Device menu includes the following alternatives:
•
Parameter editor
•
Save device log
•
Save crash logs
8 OPERATION
46
